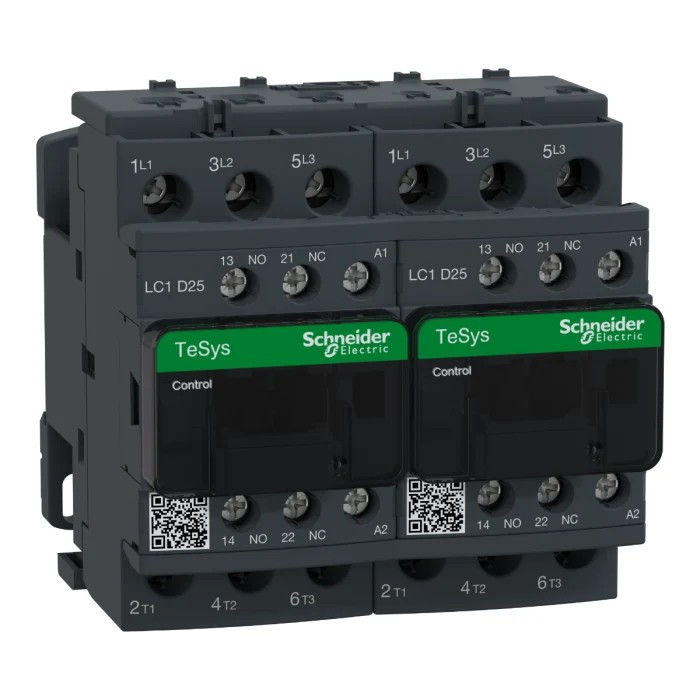

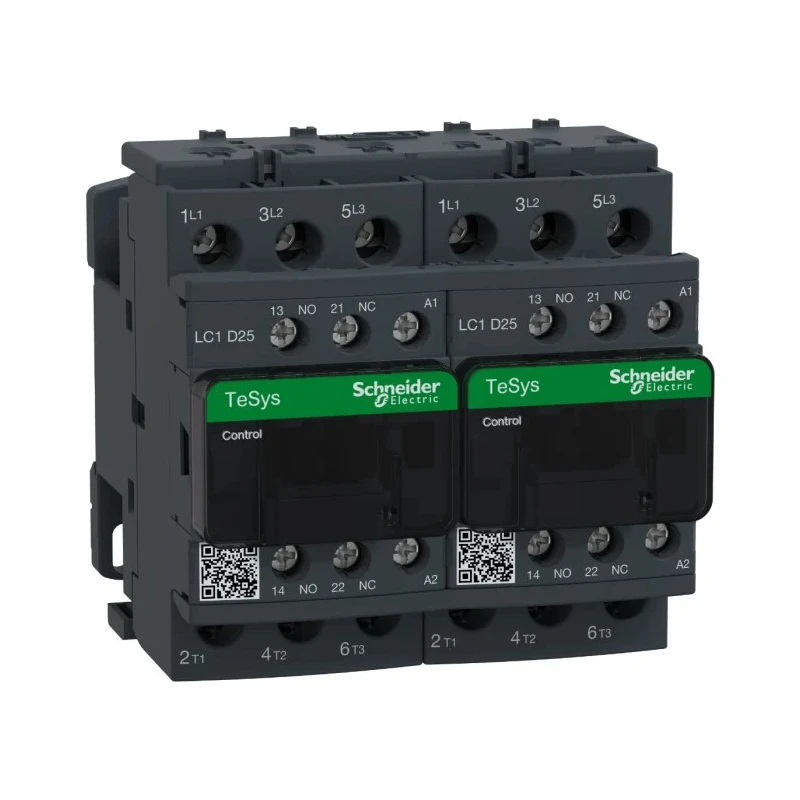

Schneider Electric LC2D25FE7 TeSys D Contactor, 110V AC Coil, 3-Pole, 25 A, 11 kW, 3 NO, 690V AC LC2D25FE7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 85mm |
| Model | LC2D25FE7 |
| Depth | 92mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 normally open contacts for reliable switching.
- Designed for DIN rail mounting with IP20 finger-safe screw terminals.
- Includes 2 auxiliary contacts with 2 NO and 2 NC configurations for added control flexibility.
- Operates safely in temperature ranges from -25°C to 50°C.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
- Designed as a reversing contactor with preassembled power busbar for motor reversing and resistive load applications.
- Features built-in auxiliary contacts and pre-installed interlock for enhanced usability.
- Provides quick and simple setup while maintaining compliance with industrial standards.
Product Description
Schneider Electric LC2D25FE7 TeSys D Contactor is a high-reliability 3-pole contactor designed for motor control, resistive load, and reversing applications. It features a 110V AC coil and supports a contact voltage up to 690V AC with a maximum contact current of 25A and power rating of 11kW.
This contactor is built for industrial environments and complies with internationally recognized standards including CCC, CSA, EAC, IEC, RoHS, and UL. Its robust construction with IP20 finger-safe screw terminals ensures safe and reliable connections, suitable for DIN rail or panel mounting.
The LC2D25FE7 model features three normally open contacts plus two auxiliary contacts with flexible configurations allowing two NO and two NC contacts, enhancing control options in automation systems. Operating temperatures range from -25°C up to 50°C, enabling versatile deployment in varying industrial settings.
Designed as part of the TeSys D range, this reversing contactor simplifies complex motor reversing tasks with a preassembled power busbar and mechanical interlocks to prevent simultaneous energizing of both contactors, providing safety and reliability in reversing operations.
The compact size of this Schneider Electric contactor (85mm length, 90mm width, 92mm depth) allows integration into control cabinets with efficient space utilization. Additionally, the product is engineered with sustainability in mind, designed for easy disassembly and environmental consideration.
Equipped with built-in auxiliary contacts to enhance switching capabilities. Pre-installed mechanical interlock reduces setup complexity and improves safety. IP20-rated screw terminals with dual North American and International markings improve installation accuracy.
Flexible control circuit configurations accommodate a wide range of automation applications. Suitable for industrial, manufacturing, HVAC, and water treatment systems requiring reliable motor control. TeSys D series linear translation technology provides double breaking contact for superior switching performance.
This model is ideal for engineers and technicians looking for a dependable contactor for 110V AC coil control circuits in demanding industrial environments. Browse more Schneider Electric Contactors and automation components for comprehensive solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D25FE7 contactor has a power rating of 11 kW.
This model supports a maximum contact current of 25 A.
The coil voltage for this contactor is 110 V AC.
The contact voltage rating for this unit is 690 V AC.
It operates safely within a temperature range of -25°C to 50°C.
This contactor is designed with 3 poles.
The LC2D25FE7 is designed for DIN rail mounting.
The dimensions are 85 mm in length, 90 mm in width, and 92 mm in depth.
It includes 2 auxiliary contacts that can be configured as 2 normally open (NO) and 2 normally closed (NC).
This model complies with several international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
It is suitable for motor control, resistive load, and reversing applications in industrial environments.
It features built-in auxiliary contacts, a pre-installed mechanical interlock, and IP20 finger-safe screw terminals for enhanced usability.
