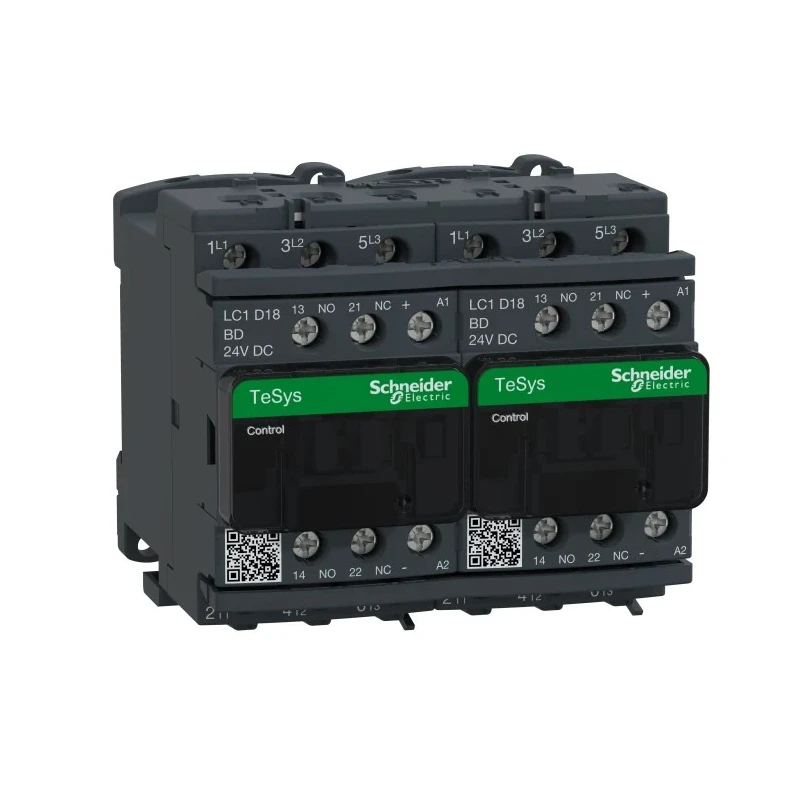

Schneider Electric TeSys D Contactor 24V DC Coil 3-Pole 18 A 7.5 kW 3 NO 690V AC LC2D18BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 77mm |
| Model | LC2D18BD |
| Depth | 95mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Provides reliable motor control with quick and simple setup.
- Equipped with 3 normally open contacts and 2 auxiliary contacts.
- Supports a maximum contact voltage of 690V AC and power rating of 7.5 kW.
- Mountable on DIN rail or panel with screws for flexible installation.
- Features screw terminals with IP20 finger-safe protection and international markings.
- Operates within -25°C to 50°C temperature range for varied environments.
- Preassembled with reversing power busbar for reversing applications.
- Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric LC2D18BD contactor is a robust and reliable switching device featuring a 24V DC coil voltage and 3 poles, each rated for 18 A. It is ideal for motor control, resistive loads, and reversing applications commonly found in industrial automation and HVAC systems.
This contactor supports a contact voltage of up to 690V AC and provides a power rating of 7.5 kW, making it suitable for various commercial and industrial electrical circuits. The device includes 3 normally open power contacts and 2 auxiliary contacts configured as 2 normally open and 2 normally closed contacts for added control flexibility.
The LC2D18BD model offers screw-type terminals with IP20 finger-safe design, compatible with both North American and international terminal markings, ensuring safety and ease of wiring. It can be mounted on a DIN rail or directly on panels using screws, allowing versatile installation options.
This contactor operates reliably in ambient temperatures ranging from -25°C to 50°C. The built-in mechanical and electrical interlock facilitates reversing motor control by allowing power supply to only one contactor at a time, thereby enhancing operational safety and control.
The product is part of the TeSys D series, known for long mechanical and electrical life, providing high reliability with minimal maintenance. It is preassembled with a reversing power busbar to simplify wiring and system integration.
Reliable motor control for industrial and HVAC applications. 24V DC coil with 3 poles suitable for 18 A current and 7.5 kW power rating. 3 normally open power contacts with 2 auxiliary contacts (2 NO/2 NC) for flexible control.
DIN rail or panel mountable with screw terminals and IP20 finger-safe protection. Operating temperature range from -25°C to 50°C for varied environmental conditions. Compliant with CCC, CSA, EAC, IEC, RoHS, and UL international standards.
Designed for sustainability with easy disassembly features. Supports motor reversing functions with mechanical and electrical interlocks.
Suitable for use in industrial automation processes, HVAC systems, manufacturing plants, and other commercial motor control applications. Schneider Electric’s TeSys D series contactors ensure quick setup, durability, and operational safety, making them a trusted choice for professionals.
Explore more Schneider Electric Contactors and related control gear products with EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D18BD contactor has a power rating of 7.5 kW.
This model supports a maximum contact voltage of 690V AC.
The coil voltage for this contactor is 24V DC.
The LC2D18BD contactor features 3 poles, each rated for 18 A.
It operates reliably in ambient temperatures ranging from -25°C to 50°C.
This unit features screw-type terminals with IP20 finger-safe protection.
Yes, it can be mounted on a DIN rail or directly on panels using screws.
This model includes 2 auxiliary contacts configured as 2 normally open and 2 normally closed contacts.
It is suitable for motor control, resistive loads, and reversing applications in industrial automation and HVAC systems.
The contactor complies with CCC, CSA, EAC, IEC, RoHS, and UL standards.
The contactor has a depth of 95 mm and a width of 90 mm.
The LC2D18BD contactor is manufactured in India.
