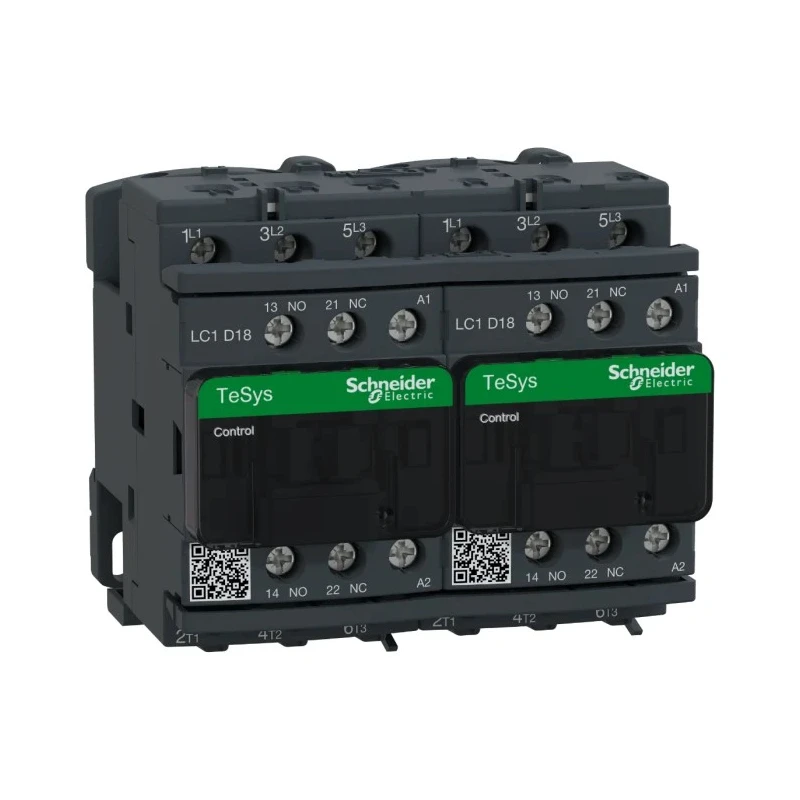

Schneider Electric LC2D Contactor, 230V AC Coil, 3-Pole, 18 A, 7.5 kW, 3 NO, 690V AC LC2D18P7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 82.5mm |
| Model | LC2D18P7 |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, IEC, EAC, CSA, UL, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with built-in auxiliary contacts providing additional switching capability.
- Pre-installed interlock ensures safe reversing operations.
- Screw connections offer IP20 finger-safe terminals compatible with North American and International standards.
- Mountable on panel with screws or DIN rail for flexible installation.
- Features reliable operation across a temperature range from -5°C up to 60°C.
- Designed with 3 normally open (NO) contacts supporting operational current of 18 A.
- Suitable for AC1 and AC3 utilisation categories covering resistive and squirrel cage motor loads.
- Compact dimensions with width 90 mm, length 82.5 mm, and depth 86 mm for efficient space use.
Product Description
Schneider Electric LC2D18P7 contactor is a robust and high reliability device engineered for versatile motor control, resistive load, and reversing applications using a 230V AC coil voltage. This 3-pole contactor supports a contact voltage up to 690V AC and a contact current capacity of 18 A with a power rating of 7.5 kW.
Part of the LC2D series, this contactor features a preassembled reversing power busbar, enabling quick setup and compliance with international electrical standards such as CCC, IEC, EAC, CSA, UL, and RoHS. Its design includes three normally open (3 NO) contacts and two auxiliary contacts configured as 2 NO/2 NC for enhanced switching versatility.
The device is built for industrial and commercial environments including manufacturing lines, HVAC systems, water treatment plants, air conditioning units, conveyors, and pumps. It operates effectively across a temperature range from -5°C to 60°C and employs screw terminals with IP20 finger-safe protection for operator safety.
Additional features include a pre-installed mechanical interlock for safe reversing contactor operation, compatibility with both North American and international terminal markings, and flexible mounting options via screws or DIN rail. Schneider Electric’s Better World product initiative ensures this contactor is designed for easy disassembly contributing to environmental sustainability.
Built-in auxiliary contacts enhance switching capabilities. Pre-installed mechanical interlock for reversing operations. IP20 finger-safe screw terminals with global terminal markings. Versatile mounting options with screws or DIN rail installation.
Designed for AC1 resistive and AC3 motor load utilisation categories. Compact form factor optimizes panel space. Wide operational temperature range from -5°C to 60°C. Compliance with multiple international electrical safety standards.
Environmental sustainability with Better World design. Suitable for industrial, laboratory, commercial, and HVAC applications.
Choose Schneider Electric LC2D18P7 for reliable, safe, and efficient Contactor performance in demanding control and automation systems. Explore environmental and electrical automation products on EnvMart for professional industrial-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 7.5 kW.
It supports a maximum contact voltage of 690V AC.
This model has an operational current capacity of 18 A.
The dimensions are 90 mm in width, 82.5 mm in length, and 86 mm in depth.
It features screw terminals with IP20 finger-safe protection.
The coil voltage for this model is 230V AC.
It is suitable for motor control and resistive load applications, including HVAC systems and conveyors.
The operating temperature range is from -5°C to 60°C.
This contactor has 3 poles.
It can be mounted on a panel with screws or on a DIN rail.
It complies with several international standards including CCC, IEC, EAC, CSA, UL, and RoHS.
