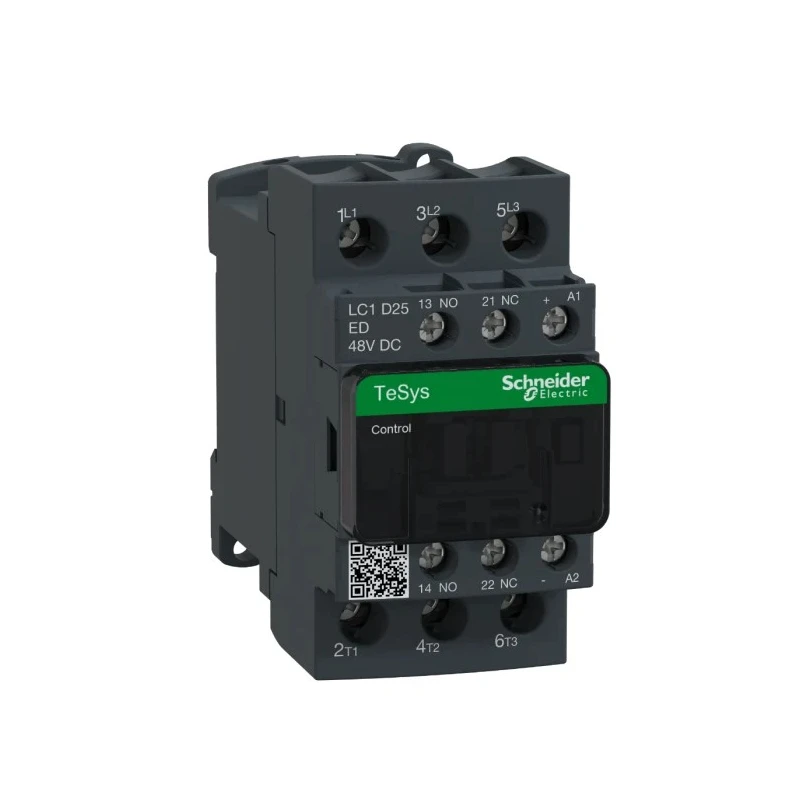

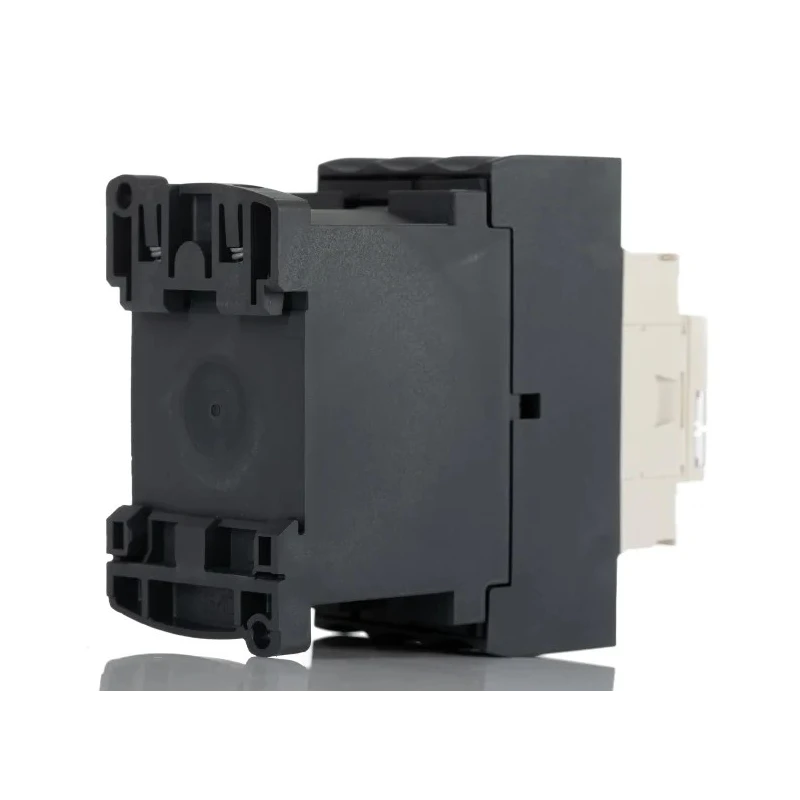

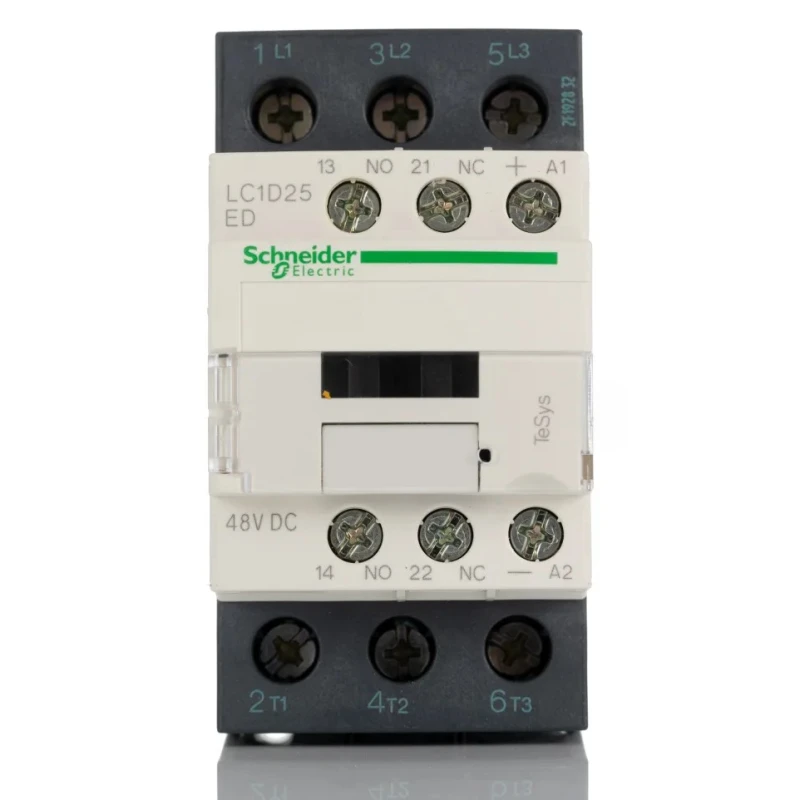

Schneider Electric LC1D Contactor, 48V DC Coil, 3-Pole, 25 A, 11 kW Power Rating, 690V AC Contact Voltage LC1D25ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D25ED |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates efficiently with 25A contact current and 690V AC contact voltage.
- Designed for use with a standard DIN rail mount for quick installation.
- Supports motor control and resistive load functions with 3 poles and 3 normally open contacts.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for expanded switching options.
- Durable screw terminal type connections with IP20 finger-safe protection.
- Operates effectively in temperature range from -5°C to +60°C for demanding environments.
- Capable of fast operation speeds up to 16 ms and switching up to 3600 times per hour.
- Complies with international standards including UL, CCC, CSA, EAC, IEC, and RoHS for safety and reliability.
Product Description
Schneider Electric LC1D25ED contactor features a 48V DC coil with a 3-pole configuration, designed for motor control and resistive load switching applications. It supports a contact current of 25A and contact voltage rating of 690V AC, suitable for controlling heavy electrical loads efficiently.
This contactor is engineered for demanding industrial and commercial environments, operating reliably within a temperature range of -5°C to +60°C. It mounts easily on a DIN rail, streamlining installation in control panels.
The device includes two auxiliary contacts (one normally open and one normally closed) to provide additional switching capacity and customization options for complex control circuits. Screw terminals marked for both North American and International standards ensure secure and safe electrical connections with IP20 finger-safe protection.
Designed for fast switching speeds with an operation time of approximately 16 milliseconds and capable of up to 3600 switching cycles per hour, it suits high-performance applications such as HVAC systems, manufacturing machinery, mining facilities, and construction plants.
UL, CCC, CSA, EAC, EN 60947-5-1, IEC, and RoHS certifications underscore its compliance with global safety and environmental standards. The Contactor's 6 kV surge voltage rating ensures protection against transient electrical spikes and disturbances.
As a Better World product, the LC1D25ED is designed with sustainability in mind, supporting easy disassembly for recycling and waste management. This makes it an excellent choice for environmentally conscious industrial users.
Operates with coil voltage of 48V DC. Three-pole design with 25A operational current. Mounts on DIN rail with screw terminal connections. Auxiliary contacts enhance versatility for control setups. Wide operating temperature range for diverse industrial environments.
Compliance with multiple international safety and quality standards. Sustains rapid switching cycles with long mechanical lifespan. Enhanced protection against coil surge voltage damage. Suitable for motor control and resistive load applications.
Explore the Schneider Electric range on EnvMart to find robust automation and control solutions tailored to industry needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a contact current rating of 25A.
The maximum contact voltage for this model is 690V AC.
It has a power rating of 11 kW.
This model is designed for DIN rail mounting, facilitating quick installation.
It operates effectively within a temperature range of -5°C to +60°C.
This contactor features a 3-pole configuration.
It includes two auxiliary contacts configured as one normally open (NO) and one normally closed (NC).
The coil voltage for this model is 48V DC.
The dimensions are 85mm in length, 45mm in width, and 99mm in depth.
It complies with UL, CCC, CSA, EAC, EN 60947-5-1, IEC, and RoHS standards.
This contactor is suitable for motor control and resistive load applications.
It features screw terminal connections with IP20 finger-safe protection, marked for both North American and International standards.
