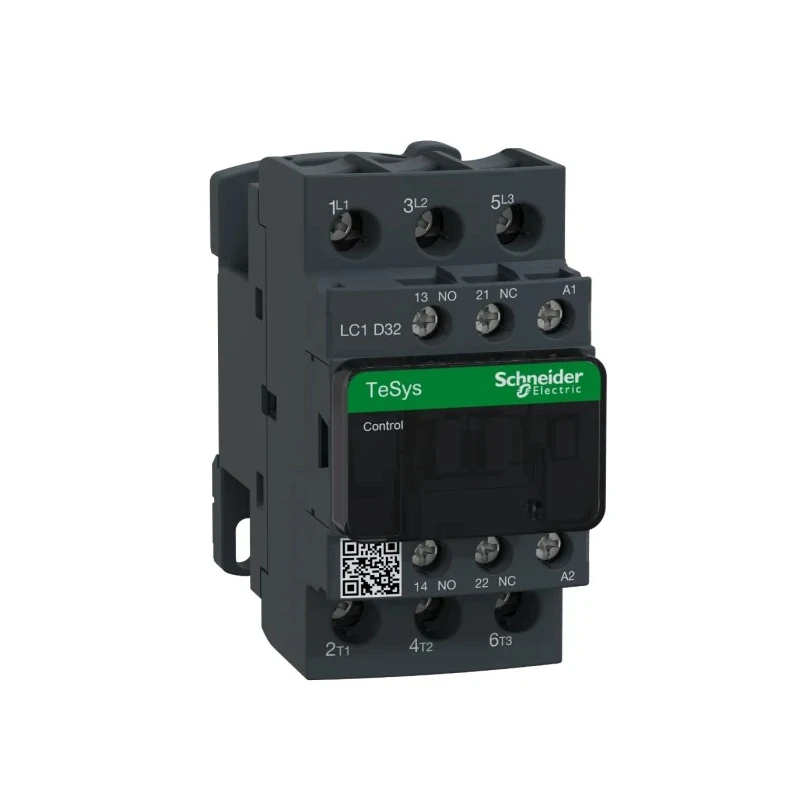

Schneider Electric TeSys D 3-Pole Contactor 48V AC Coil, 32A Contact Current, 15kW Power, 690V AC LC1D32E7

Schneider Electric LC1D32E7 is a 3-pole contactor from the TeSys D series featuring a 48V AC coil. It is engineered for reliable motor control and resistive load operations with a contact current rating of 32 amps and power rating of 15kW at 690V AC. The contactor comes housed in a flame-retardant thermoplastic casing with an IP20 rating, ensuring protection against objects larger than 12mm including fingers and small tools. Compact dimensions of 85 mm length, 45 mm width, and 90 mm depth provide a space-efficient design suitable for panel installations with DIN rail compatibility.

This device supports applications such as power distribution, heating and air conditioning equipment, printing presses, pumps, compressors, and other heavy-duty motor-driven equipment. It operates efficiently across a temperature range from -5°C up to 60°C, facilitating its use in varied environmental conditions. The contactor is equipped with three normally open contacts along with two auxiliary contacts configured as one normally open and one normally closed contact, enabling enhanced switching versatility.

Installation is simplified with the time-saving screw termination method that requires no special tools. The IP20 finger-safe terminals feature markings for both North American and International standards, ensuring safety and clarity during setup. Schneider Electric’s TeSys D range is designed to deliver exceptional mechanical endurance, rated for up to 15 million mechanical cycles, guaranteeing long-lasting performance in industrial, commercial, and manufacturing environments.

Flame-retardant thermoplastic housing for durability and safety. IP20 protection level prevents ingress of objects over 12mm in size. 3-pole design suitable for switching three circuits simultaneously. DIN rail mountable with screw terminals for secure installation.

Wide operating temperature range from -5°C to 60°C. Supports motor control and resistive load applications. Compliant with EN 60947-5-1, UL, RoHS, IEC, EAC, CSA, CCC standards. Lightweight construction at 375 g eases handling and mounting.

Designed for up to 15 million mechanical cycles for reliability.

Schneider Electric LC1D32E7 contactors are integral to automation and control gear assemblies across industries including manufacturing plants, HVAC systems, electrical power distribution, and other commercial applications demanding precise and robust motor control functionality. This Contactor exemplifies Schneider Electric’s commitment to enhancing operational efficiency and equipment longevity. Browse EnvMart’s extensive Schneider Electric catalog for compatible motor control components and automation solutions to optimize your industrial installations.
