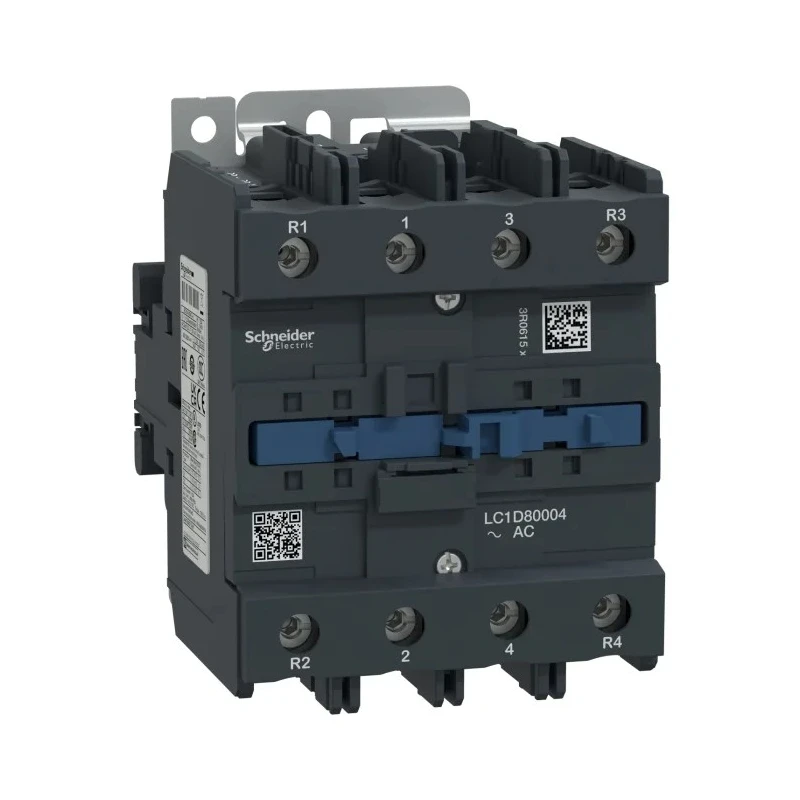

Schneider Electric LC1D80004P7 TeSys D Contactor, 230V AC Coil, 4-Pole, 125A, 12.5W, 4 NO, 690V AC
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 127mm |
| Model | LC1D80004P7 |
| Depth | 181mm |
| Width | 96mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 12.5W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | IEC, RoHS, UL, CSA, CCC, EAC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 125A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 125A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- Designed for demanding applications with a contact voltage of 690V AC and power rating of 12.5W.
- Compact 96mm width with DIN rail mounting for easy installation.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for enhanced control functionality.
- Operates reliably in a temperature range from -40°C to 60°C and withstands voltage surges up to 8kV.
- Complies with IEC, UL, CSA, CCC, EAC, and RoHS standards ensuring safety and environmental compliance.
- Supports operational current Ie of 125A suitable for industrial motor starters.
- Provides 4 Normally Open (NO) main contacts ideal for resistive load applications.
- Features screw terminals for robust power and control circuit connections.
Product Description
Schneider Electric LC1D80004P7 is a TeSys D series contactor designed for motor control and resistive load switching applications. It features a coil voltage of 230V AC and 4 poles rated at 125A with a power rating of 12.5W. This contactor is suitable for use in industrial, manufacturing, HVAC, and electrical automation systems requiring reliable and durable switching performance.
The compact design measures 127mm in length, 96mm in width, and 181mm in depth, enabling convenient DIN rail or screw mounting in control panels. The contactor includes 2 auxiliary contacts with a configuration of 1 Normally Open and 1 Normally Closed, allowing versatile control circuit integration.
Engineered to operate over a broad temperature range from -40°C to 60°C, it withstands harsh industrial environments and voltage surges up to 8kV, ensuring operator safety and equipment protection. Compliance with multiple international standards including IEC, UL, CSA, CCC, EAC, and RoHS certifies this contactor for global industrial use.
The screw terminal connections provide secure and straightforward wiring for both power and control circuits. Designed for high operational rates of up to 3600 cycles per hour, the LC1D80004P7 guarantees high reliability and longevity for continuous industrial operations.
Designed for motor control and resistive load switching with 4 poles rated 125A. 230V AC coil voltage with power consumption of 12.5W. Two auxiliary contacts configured as 1 NO and 1 NC for additional control functions. Compact DIN rail mountable form factor for easy installation.
Broad operating temperature range from -40°C to 60°C. Voltage surge withstand capability up to 8kV enhances safety and equipment longevity. Complies with international standards IEC, UL, CSA, CCC, EAC, and RoHS. Suitable for electrical, industrial, manufacturing, HVAC, and automation applications.
This Contactor is a reliable choice for creating motor starters adapted to almost any industrial application, ensuring efficient and durable switching performance. Choose Schneider Electric LC1D80004P7 for your control gear needs to achieve safety, durability, and compliance in demanding environments. Explore more on EnvMart for similar automation and control gear solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 12.5W.
It can operate at a maximum temperature of 60°C.
The coil voltage for this contactor is 230V AC.
This contactor has 4 poles.
The contact voltage rating is 690V AC.
It supports DIN rail mounting for easy installation.
It includes 2 auxiliary contacts configured as 1 Normally Open (NO) and 1 Normally Closed (NC).
The depth is 181mm and the width is 96mm.
The operational current rating is 125A.
It complies with IEC, UL, CSA, CCC, EAC, and RoHS standards.
It is designed for motor control and resistive load switching applications.
It can withstand voltage surges up to 8kV.
