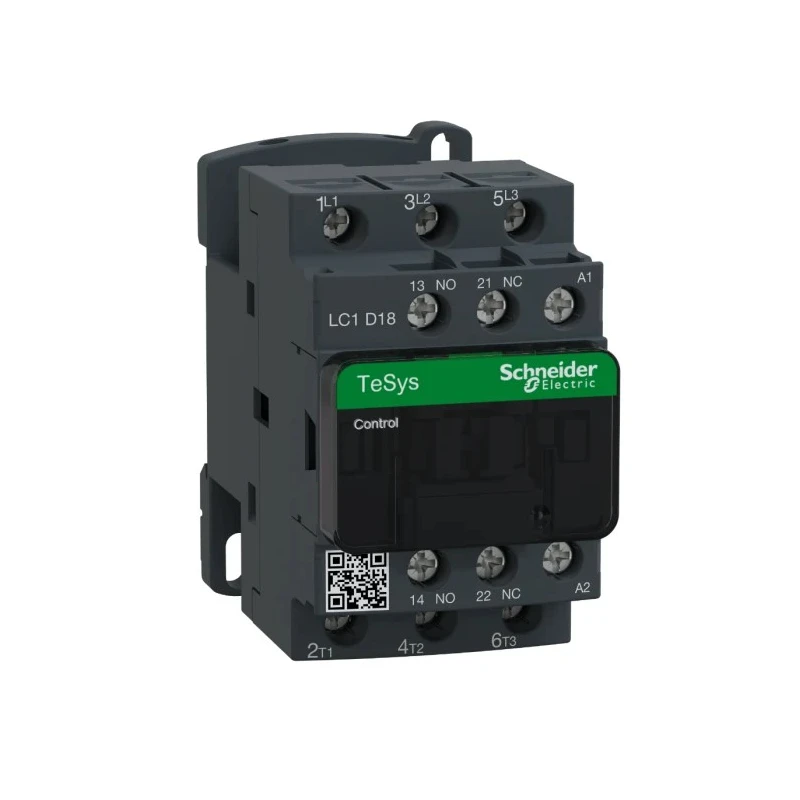

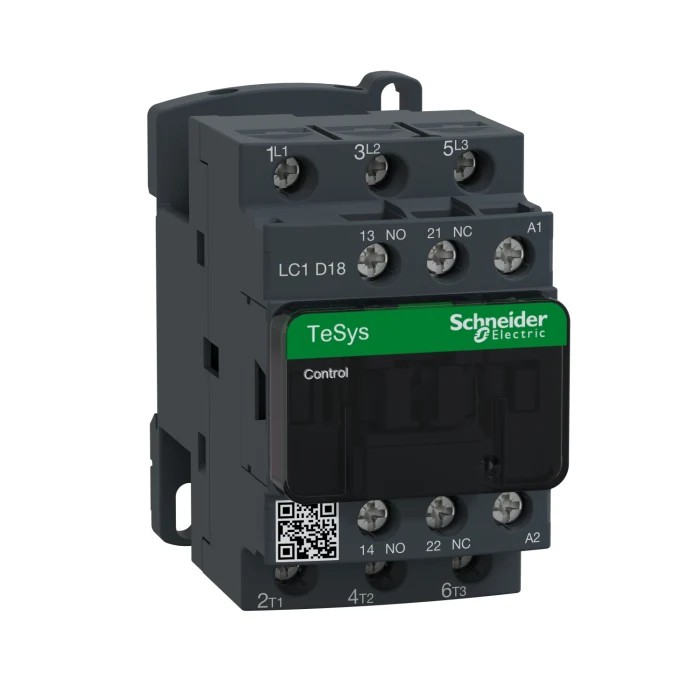

Schneider Electric LC1D Contactor, 115V AC Coil, 3-Pole, 18 A, 7.5 kW Power Rating, 3 NO, 690V AC LC1D18FE7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D18FE7 |
| Depth | 84mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CCC, CSA, EAC, IEC, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 115V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 115V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with screw clamp terminals for quick and reliable installation.
- Features a touch-proof front panel rated IP20 for protection against objects larger than 12 mm.
- Designed for durability with a mechanical lifespan of 15 million switching cycles.
- Operates efficiently within a wide temperature range from -40°C to +60°C.
- Rated for 690V AC contact voltage and 7.5 kW power capacity.
- Includes two auxiliary contacts configured as 1 NO and 1 NC.
- Compact size of 77 mm length, 45 mm width, and 84 mm depth suitable for limited spaces.
- Complies with UL, CCC, CSA, EAC, IEC, and RoHS standards.
Product Description
Schneider Electric LC1D18FE7 is a high-quality contactor featuring a 115V AC coil voltage, 3-pole construction, and a power rating of 7.5 kW, ideal for motor control and resistive load applications in industrial environments. The device integrates two auxiliary contact blocks (1 NO/1 NC) providing additional switching capabilities.
Its screw clamp terminals allow for fast and secure installation, while the touch-proof front panel with an IP20 rating offers safety by preventing access to live parts and protecting against objects larger than 12 mm. Engineered to withstand demanding operating conditions, it operates within a temperature range of -40°C to +60°C and supports a contact voltage up to 690V AC and an operational current of 18A.
The compact dimensions (77 mm length, 45 mm width, 84 mm depth) facilitate installation even in confined spaces. The unit complies with multiple international standards including UL, CCC, CSA, EAC, IEC, and RoHS, assuring reliability and environmental responsibility.
Designed for use across diverse sectors, this contactor finds practical applications in automotive manufacturing, food and beverage packaging lines, and commercial lighting control systems. Its robust design ensures long mechanical life with up to 15 million switching cycles, making it an efficient and trustworthy component for industrial automation and control.
Fast and reliable screw clamp terminal installation. IP20 touch-proof front panel for safety. Long mechanical life with 15 million switching cycles. Wide operating temperature from -40°C to +60°C. Suitable for motor control and resistive loads.
Complies with multiple international standards. Compact dimensions for tight installation spaces. Equipped with 2 auxiliary contacts (1 NO/1 NC). Ideal for automotive, packaging, and lighting applications.
Experience efficient power control and protection with the Schneider Electric LC1D18FE7 Contactor. Browse our comprehensive range of industrial control gear for complementary products and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D18FE7 contactor has a power rating of 7.5 kW.
This model operates with a coil voltage of 115V AC.
The maximum contact voltage supported by the LC1D18FE7 is 690V AC.
The dimensions of this contactor are 77 mm in length, 45 mm in width, and 84 mm in depth.
The operational current rating for the LC1D18FE7 is 18A.
The LC1D18FE7 contactor features a 3-pole construction.
It is equipped with screw clamp terminals for quick and reliable installation.
This contactor operates efficiently within a temperature range of -40°C to +60°C.
The LC1D18FE7 includes two auxiliary contacts configured as 1 NO and 1 NC.
It complies with UL, CCC, CSA, EAC, IEC, and RoHS standards.
This contactor is suitable for motor control and resistive load applications in industrial environments.
The LC1D18FE7 is designed for a mechanical lifespan of up to 15 million switching cycles.
