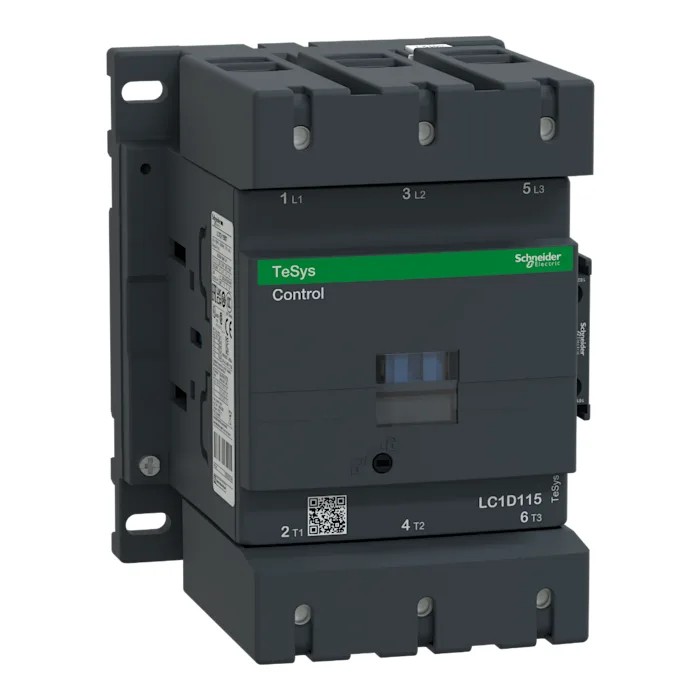

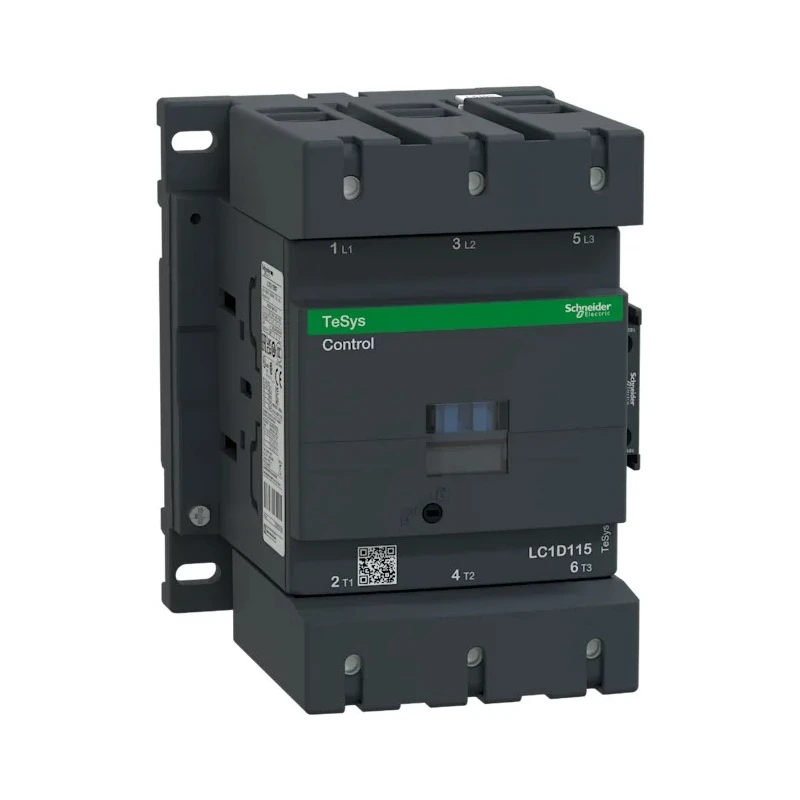

Schneider Electric LC1D Contactor, 24V ac Coil, 3-Pole, 115A, 55kW, 3 NO, 1kV ac LC1D115B7
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D115B7 |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 55kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, IEC, RoHS, CSA, EAC, EN 60947-5-1, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 115A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 115A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Schneider Electric TeSyS D Main Contact Set for use with LC1D115Brand | Schneider Electric |
Key Features
- Operates with a coil voltage of 24V AC for reliable electromagnetic control.
- Designed to handle contact currents up to 115 amperes efficiently.
- Power rating supports up to 55 kW at 400V suitable for medium to high power applications.
- Three normally open (3 NO) contact poles for optimal switching of electrical loads.
- Compact DIN rail mounting design ensures easy integration in panel systems.
- Wide operating temperature range from -40°C to +60°C ensures versatile environmental adaptability.
- Includes two auxiliary contacts configured as 1 NO and 1 NC to enhance circuit control options.
- Screw terminal type enhances secure wiring connections for industrial use.
Product Description
Schneider Electric LC1D115B7 is a high-performance 3-pole contactor with a 24V AC coil, engineered to support motor control and resistive load applications. It offers a rated contact current of 115 amperes and power handling capacity of 55 kW at 400V, making it suitable for demanding electrical environments and industrial automation.
This contactor's robust build includes three normally open contacts (3 NO) and two auxiliary contacts (1 NO and 1 NC), allowing flexible circuit configurations for industrial machinery control. The design facilitates easy DIN rail mounting and secure connections with screw terminal clamps.
The device operates efficiently within a temperature range of -40°C to +60°C, ensuring reliable performance even in extreme industrial conditions. Its compact dimensions (158mm length, 120mm width, 136mm depth) enable installation in constrained control panels.
Compliant with major global standards including CCC, IEC, RoHS, CSA, EAC, EN 60947-5-1, and UL, this contactor offers assured quality, safety, and sustainability. It is manufactured in the Czech Republic, adhering to rigorous industrial manufacturing practices.
Operates at 24V AC coil voltage for effective electromagnetic switching. Supports a maximum contact current of 115A for high-load applications. Rated power up to 55 kW ensures capability for various motor control tasks. Three normally open poles facilitate efficient load switching.
Equipped with auxiliary contacts for additional control flexibility. Screw terminal type for reliable and maintenance-friendly wiring. Durable DIN rail mounting design for quick and secure installation. Wide operating temperature range to suit industrial environments.
Conforms to international electrical and safety standards.
This Schneider Electric LC1D115B7 Contactor is ideal for use in motor control systems, industrial load switching, automated manufacturing processes, and HVAC applications. Its rugged construction and high reliability support continuous operation in commercial and industrial installations.
Explore the comprehensive range of Schneider Electric automation and control products at EnvMart for all your industrial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D115B7 contactor has a power rating of 55 kW at 400V.
This model supports a maximum contact current of 115A.
The coil voltage for this contactor is 24V AC.
The LC1D115B7 contactor features three normally open (3 NO) poles.
The dimensions of the LC1D115B7 are 158mm in length, 120mm in width, and 136mm in depth.
This contactor is designed for DIN rail mounting, facilitating easy integration into panel systems.
The operating temperature range for the LC1D115B7 is from -40°C to +60°C.
It includes two auxiliary contacts configured as 1 normally open (1 NO) and 1 normally closed (1 NC).
This contactor complies with several standards including CCC, IEC, RoHS, CSA, EAC, EN 60947-5-1, and UL.
It is suitable for motor control and resistive load applications.
The LC1D115B7 uses screw terminal type connections for secure wiring.
The LC1D115B7 contactor is manufactured in the Czech Republic.
