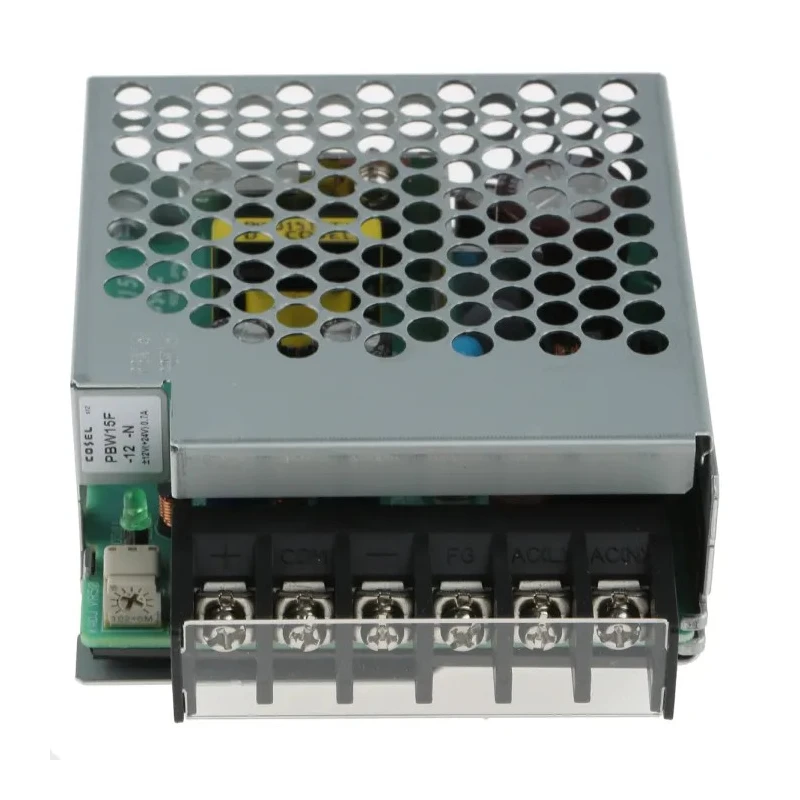

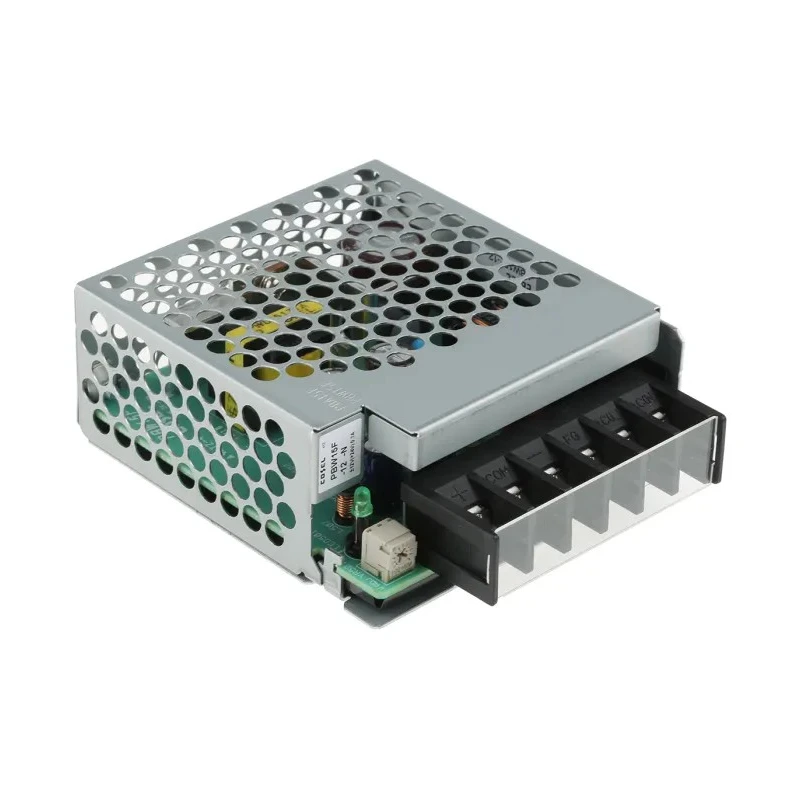

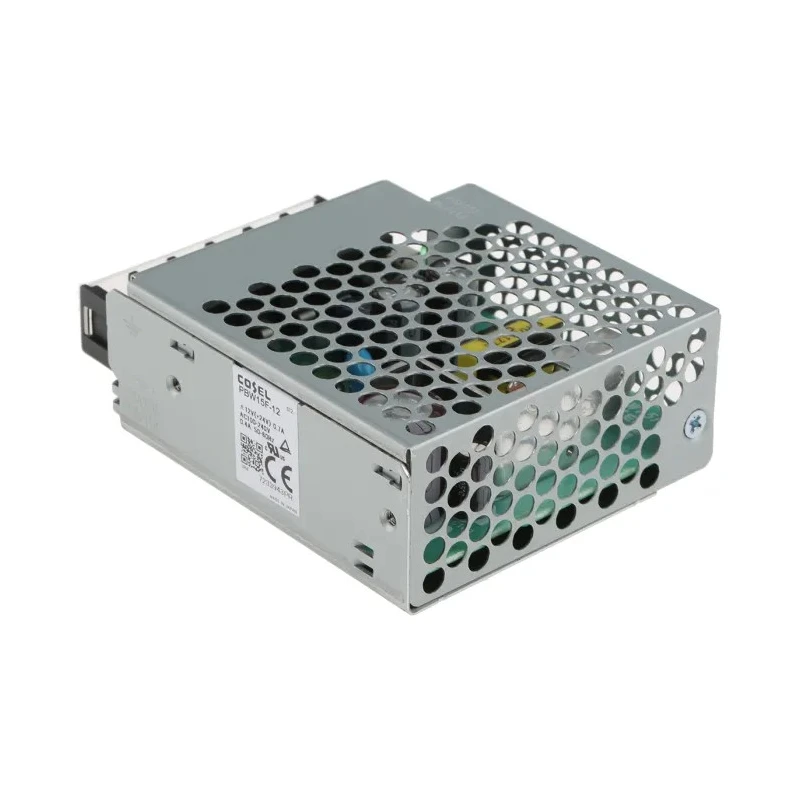

Cosel Switching Power Supply 2 Output 12V DC 16.8W Universal Input PBW15F-12-N
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Cosel |
| Power | 16.8W |
| Efficiency | 77% |
| Length | 101.5mm |
| Model | PBW15F-12-N |
| Depth | 78mm |
| Gross Weight | 200g |
| Width | 34.5mm |
| Mount Type | Chassis |
| Series | PBW15F |
| Maximum Operating Temperature | 71°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 2 |
| Maximum Input Voltage | 370V dc |
| Standards/Approvals | RoHS, UL, CE |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 1.4A |
| Minimum Input Voltage | 110, 85V dc |
Key Features
- Compact chassis mount design with dimensions of 101.5mm x 34.5mm x 78mm.
- Wide input voltage range of 85 V AC to 264 V AC and 110-370 V DC.
- Output current rated at 1.4A suitable for various industrial applications.
- Operating temperature range from -10°C to 71°C ensures reliable performance.
- High efficiency of 77% and built-in protections including overcurrent and power factor correction.
- Convection cooled design for silent operation without fans.
- Complies with RoHS, UL60950-1, C-UL, EN60950-1, and EN50178 standards.
- Ideal for industrial, laboratory, and electronic component power supply needs.
Product Description
Cosel PBW15F-12-N switching power supply is a highly reliable and compact unit providing dual 12V DC outputs with a total power capacity of 16.8W. Designed for versatility, it accepts a universal AC input voltage range from 85 V to 264 V as well as DC input from 110 V to 370 V, enabling wide application coverage.
The chassis mount configuration measures a compact 101.5mm length, 34.5mm width, and 78mm depth. It delivers an output current of 1.4A, perfectly suited for industrial equipment, control systems, and laboratory instruments requiring stable low-voltage DC power.
This power supply operates efficiently at 77%, incorporating a harmonic attenuator and power factor correction function, to minimize power loss and reduce electrical interference. It features built-in overcurrent protection and supports parallel operation for redundancy and increased power output.
Designed for robustness, the PBW15F-12-N is convection cooled, eliminating the need for noisy fans and ensuring silent operation. It can operate reliably across a temperature range from -10°C to 71°C, accommodating harsh industrial environments.
Cosel's PBW series complies with global safety and electromagnetic compatibility standards, including RoHS, UL60950-1, C-UL, EN60950-1, and EN50178, making it suitable for international use.
Compact chassis mount design measuring 101.5mm x 34.5mm x 78mm. Dual 12V DC output channels rated 16.8W total power. Universal input voltage compatibility (85-264 V AC, 110-370 V DC). High efficiency of 77% with harmonic attenuation and PFC.
Built-in overcurrent protection and support for parallel operation. Convection cooled for silent and maintenance-free operation. Operating temperature range of -10°C to 71°C for harsh environments. Compliance with RoHS, UL, C-UL, EN safety and EMC standards.
This switching power supply is ideal for powering industrial automation, measuring instruments, communication systems, and laboratory equipment where reliable dual-output DC power is crucial. Selection of the PBW15F-12-N ensures stable, efficient, and safe power delivery for demanding electronics applications.
Explore more from Cosel's power supply series at EnvMart for industrial and electronic components.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a total power capacity of 16.8W across its dual 12V DC outputs.
The maximum output current is rated at 1.4A.
The chassis mount design measures 101.5mm in length, 34.5mm in width, and 78mm in depth.
It operates reliably within a temperature range from -10°C to 71°C.
This power supply operates with an efficiency of 77%.
Yes, it features built-in overcurrent protection and supports parallel operation for increased power output.
It complies with RoHS, UL60950-1, C-UL, EN60950-1, and EN50178 standards.
It utilizes a convection cooled design for silent operation without fans.
The PBW15F-12-N is manufactured in Japan.
It is ideal for powering industrial automation, measuring instruments, communication systems, and laboratory equipment.
The gross weight of this model is 200g.
