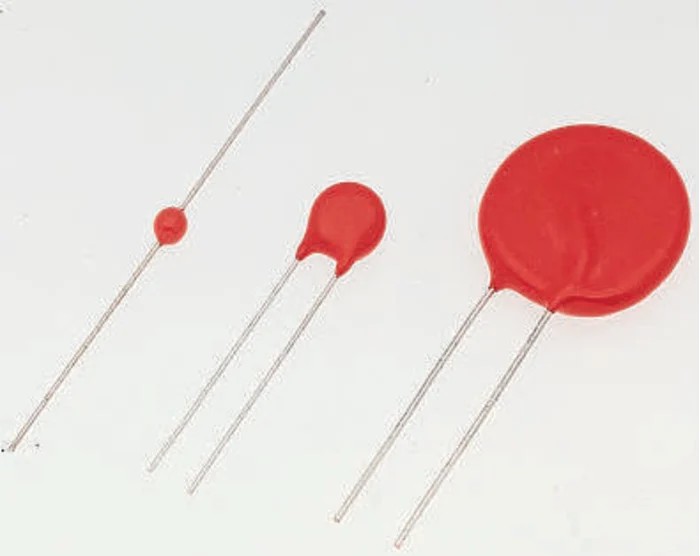

Littelfuse LA Metal Oxide Varistor 360 pF 25 A Clamping 1650 V Varistor Voltage 268 V V150LA5P
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11.5mm |
| Brand | Littelfuse |
| Material | Metal |
| THICKNESS | 5.6mm |
| Length | 36mm |
| Model | V150LA5P |
| Depth | 5.6mm |
| Packaging | Bulk |
| Series | LA |
| Energy Rating | 25J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 360pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 200V dc |
| Lead Pitch | 8.5mm |
| Maximum AC Voltage | 150V ac |
| Clamping Voltage VC | 1650V |
| Clamping Current | 25A |
| Maximum Surge Current | 2.5kA |
| Varistor Voltage | 268 V |
| Panasonic, V Surge Absorber 380 pF 25 A, Clamping 40 V, Varistor 240 VBrand | Panasonic |
Key Features
- Designed for continuous operation across AC power lines.
- Maximum AC voltage rating of 150 V AC and DC voltage rating of 200 V DC.
- Clamping voltage of 1650 V protects circuits from voltage surges effectively.
- 360 pF capacitance suitable for transient voltage suppression.
- Compact radial-lead design with metal oxide material for durability.
- Operating temperature range from -40°C to 85°C.
- Energy rating of 25 joules for transient energy absorption.
- Lead pitch of 8.5 mm for PCB mounting compatibility.
Product Description
Littelfuse V150LA5P Metal Oxide Varistor is a compact and versatile surge protection component designed to safeguard electrical and electronic circuits from voltage transients. It features a capacitance of 360 pF and supports a clamping current of 25 A, making it highly effective for protecting sensitive components against high-energy surges.
This varistor is optimized for continuous AC line operation with a maximum AC voltage rating of 150 V and a maximum DC voltage rating of 200 V. It offers a clamping voltage of 1650 V, ensuring robust protection by limiting voltage spikes to safe levels. The device's metal oxide composition enhances its durability and thermal stability.
Measuring 36 mm in length with a diameter of 11.5 mm and thickness of 5.6 mm, the radial-lead V150LA5P is easy to integrate into printed circuit boards using its 8.5 mm lead pitch. It operates reliably within a temperature range of -40°C to 85°C, suitable for diverse industrial and commercial electronics environments.
The varistor is compliant with international standards including UL1449, IEC61051-1, and GB4943.1, ensuring safety and reliability in applications such as motor control, telecommunications, power supplies, and automotive electrical systems.
Designed for continuous operation across AC power lines. Maximum AC voltage rating of 150 V AC and DC voltage rating of 200 V DC. Clamping voltage of 1650 V protects circuits from voltage surges effectively. 360 pF capacitance suitable for transient voltage suppression.
Compact radial-lead design with metal oxide material for durability. Operating temperature range from -40°C to 85°C. Energy rating of 25 joules for transient energy absorption. Lead pitch of 8.5 mm for PCB mounting compatibility.
Complies with multiple industry standards including UL1449 and IEC61051-1.
This Littelfuse Varistor is ideal for industrial, laboratory, construction, power supply, automotive, and telecommunications applications requiring reliable surge protection to maintain system integrity and prolong equipment lifespan.
EnvMart offers a comprehensive selection of Littelfuse surge protection components tailored for demanding electronics and electrical applications, providing quality and compliance assurance for engineering and maintenance professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum AC voltage rating for this varistor is 150 V AC.
The clamping voltage of the V150LA5P is 1650 V, which helps protect circuits from voltage surges.
This model has a capacitance of 360 pF, suitable for transient voltage suppression.
The operating temperature range for this varistor is from -40°C to 85°C.
The energy rating of the V150LA5P is 25 joules for transient energy absorption.
The varistor measures 36 mm in length, 11.5 mm in diameter, and has a thickness of 5.6 mm.
The lead pitch for PCB mounting of this model is 8.5 mm.
The maximum DC voltage rating for this varistor is 200 V DC.
The clamping current supported by this varistor is 25 A.
The varistor complies with international standards including UL1449, IEC61051-1, and GB4943.1.
This varistor is constructed using metal oxide material, enhancing its durability and thermal stability.
This varistor is suitable for applications in motor control, telecommunications, power supplies, and automotive electrical systems.
