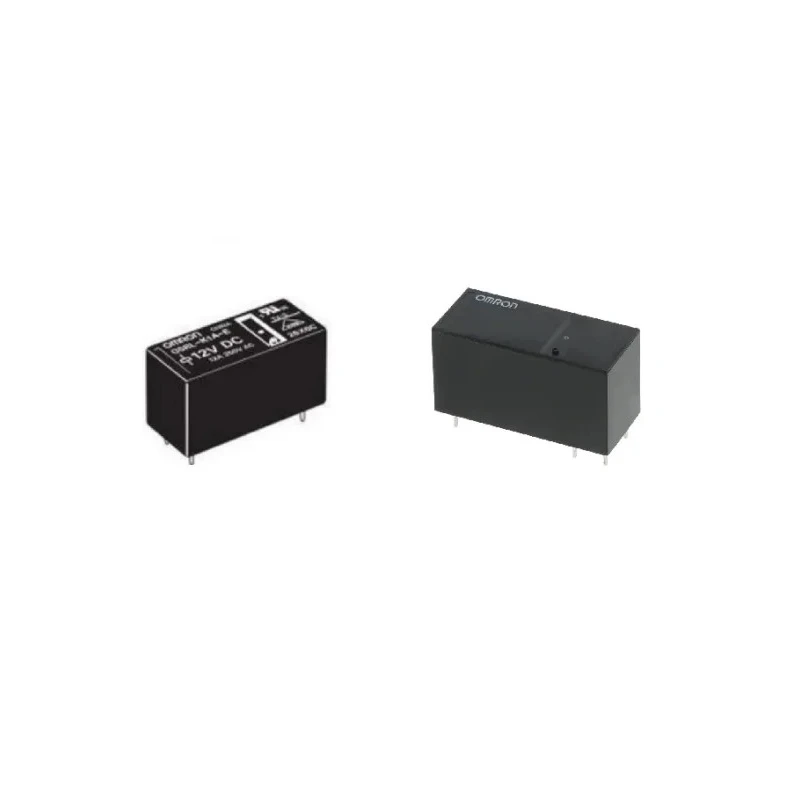

Omron PCB Relay 5V DC Coil 16A Switching Current SPDT G5RL-K1-E DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15mm |
| Length | 50mm |
| Model | G5RL-K1-E DC5 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL-U/-K |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC Certified (File No. CQC21002283993), CSA (File No. LR31928), RoHS, UL (File No. E41643), VDE Certified (EN61810-1) (License No. 40007172) |
| Coil Resistance | 33Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.75W |
Key Features
- The coil resistance is 33 ohms, drawing 150 mA coil current.
- Silver alloy coated contacts provide reliable conductivity and low contact resistance of 100mΩ.
- Rated for switching DC voltage up to 24V and AC voltage up to 250V.
- Compact size with dimensions 50mm length, 15mm height, and 10mm width suitable for PCB mounting.
- Operating temperature range from -40°C to 85°C ensures durability in diverse environments.
- Coil power consumption is low at 0.75W for energy efficient operation.
- CQC, CSA, RoHS, UL, and VDE certification verify compliance with international quality and safety standards.
- The relay features a creepage distance of 8mm between coil and contacts enhancing electrical safety.
Product Description
Omron G5RL-K1-E DC5 PCB Relay is a compact and robust power relay designed for PCB mounting with a 5V DC coil voltage, supporting a switching current of 16A and SPDT contact configuration. This relay is an essential component in electrical, industrial automation, and control systems demanding high reliability and durability.
The coil resistance of 33Ω ensures a coil current of approximately 150 mA, with an energy-efficient coil power of 0.75W. The relay supports switching of DC voltages up to 24V and AC voltages up to 250V, making it suitable for various switching tasks in electronic circuits.
The relay contacts are coated with a silver alloy to maintain excellent electrical conductivity and reduce contact resistance to 100mΩ. Its compact dimensions of 50mm length, 15mm height, and 10mm width optimize PCB space utilization while maintaining mechanical stability.
The device operates reliably within a temperature range of -40°C to +85°C, making it well suited for demanding industrial environments. It also boasts a creepage distance of 8mm between coil and contacts, enhancing electrical safety and preventing short circuits under high voltage conditions.
The relay is certified by multiple international standards: CQC, CSA, RoHS, UL, and VDE (EN61810-1), ensuring compliance with safety and environmental requirements. It is manufactured in China and supplied in new condition to guarantee product integrity and performance.
Typical applications include switching loads in automation panels, power management circuits, HVAC systems, manufacturing equipment, and other industrial controls. Its robust construction and precise operation make it an indispensable component for reliable and efficient machine control.
Set includes one Omron G5RL-K1-E DC5 PCB Relay ready for insertion into machinery and PCB layouts. Discover the full range of high-quality Power Relays from Omron for your electronic and industrial automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It supports a maximum switching current of 16A.
This relay has dimensions of 50mm in length, 15mm in height, and 10mm in width.
It can switch DC voltages up to 24V and AC voltages up to 250V.
The coil resistance is 33 ohms.
The contact configuration is SPDT (Single Pole Double Throw).
The contact resistance is 100mΩ, which helps maintain reliable conductivity.
It operates within a temperature range of -40°C to +85°C.
It is certified by CQC, CSA, RoHS, UL, and VDE (EN61810-1).
The coil power consumption is low at 0.75W.
The contacts are made of silver alloy, which provides reliable conductivity.
This model is designed for PCB mounting.
