Phoenix Contact 5, 5/10-STF-3, MC 1 Series Pluggable Terminal Block, 10-Contact, 3.5 mm Pitch, 8A Current, 160V 1847204

Free Delivery in India | Lowest Global Shipping Charges

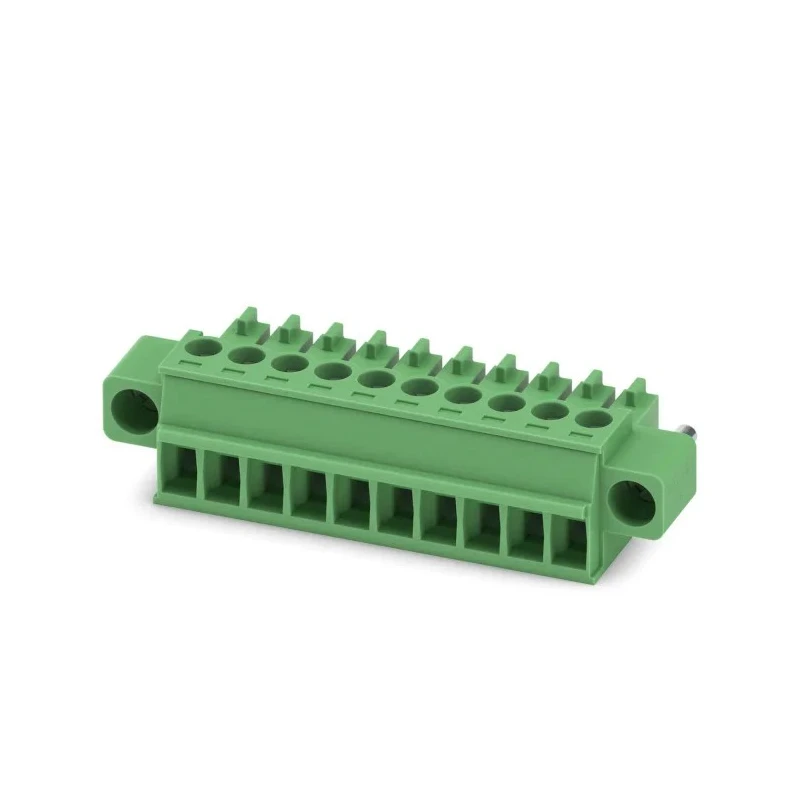

Phoenix Contact 5, 5/10-STF-3, MC 1 Series Pluggable Terminal Block, 10-Contact, 3.5 mm Pitch, 8A Current, 160V 1847204

Name: Phoenix Contact 5, 5/10-STF-3, MC 1 Series Pluggable Terminal Block, 10-Contact, 3.5 mm Pitch, 8A Current, 160V 1847204
Brand: PHOENIX CONTACT
SKU: 341266
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	160V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	8A
Length	16.1mm
Model	1847204
Depth	11.1mm
Width	45.3mm
Housing Material	Polyamide
Number of Rows	1
Pitch	3.5mm
Standards/Approvals	CSA, cULus Recognised, EAC, IECEE CB Scheme, VDE Gutachten mit Fertigungsüberwachung
Number of Contacts	10
Connector Gender	Female
Minimum Wire Size mm²	2mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	16AWG
Wire Connection Method	Screw Connection with Tension Sleeve

Key Features

The terminal block supports a nominal current of 8 amps at voltage of 160 volts.
It has a 3.5 mm pitch and 10 contact positions in one row for compact installation.
The housing material is durable polyamide ensuring electrical insulation and mechanical stability.
Connection method uses screw connection with tension sleeve for secure wire fastening.
Wire size can be between 2 mm² minimum to 1.5 mm² maximum or 28 AWG to 16 AWG.
The component features a straight orientation and green color for identification.
It is part of the 5, 5/10-STF-3, MC 1 series providing compatibility and reliability.
Certifications include CSA, cULus Recognised, EAC, IECEE CB Scheme and VDE Gutachten mit Fertigungsüberwachung.

Product Description

Phoenix Contact 1847204 is a 10-contact pluggable terminal block from the 5, 5/10-STF-3, MC 1 series designed for industrial electronics requiring reliable and compact connection solutions. It carries a nominal current rating of 8 A and voltage rating of 160 V, suitable for various power and signal applications requiring secure wire terminations.

The terminal block's housing is made from polyamide, providing robust electrical insulation and mechanical protection while withstanding typical industrial environmental stresses. Featuring a 3.5 mm pitch and a single row of 10 contacts, it is well-suited for PCB mounting where space and performance are critical.

Wiring is facilitated through screw connections with tension sleeves which ensure secure and vibration-resistant connections. It supports conductor sizes from 2 mm² minimum to 1.5 mm² maximum, or 28 AWG to 16 AWG, accommodating a range of wiring needs.

The component's color is green, aiding identification and compliance with wiring standards. It allows straightforward straight orientation installation, enhancing ease of use in compact assemblies.

Certifications include CSA, cULus Recognised, EAC, IECEE CB Scheme, and VDE Gutachten mit Fertigungsüberwachung, ensuring this product meets international compliance and quality benchmarks.

The terminal block supports a nominal current of 8 A and voltage of 160 V. It features a single row of 10 female contacts with 3.5 mm pitch spacing. Robust polyamide housing ensures durability and insulation. Wire connection is via secure screw connection with tension sleeve.

Compatible with wire sizes 2 mm² to 1.5 mm² and AWG 28 to 16. Compact dimensions: 16.1 mm length, 45.3 mm width, and 11.1 mm depth. Includes approvals from CSA, cULus, EAC, IECEE CB Scheme, and VDE.

Widely used in industrial automation, control panels, power distribution, and electronic manufacturing, this terminal block ensures dependable connection solutions meeting rigorous standards. It is manufactured in Germany under strict quality control.
