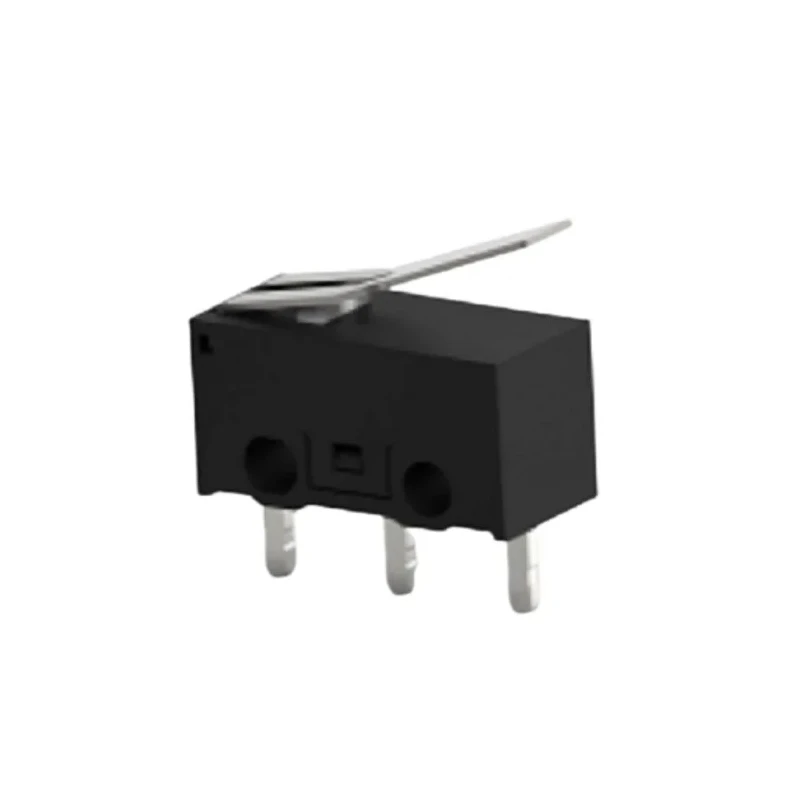

TE Connectivity Lever Snap Action Micro Switch PCB Terminal 3A SPDT SAJ13XXBL0N88SDTPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ13XXBL0N88SDTPTQ |
| Series | SAJ |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 3A |
| Operating Force | 0.75N |
| Mechanical Life | 500000Cycles |
| Microswitch Type | Miniature |
Key Features
- The miniature micro switch features a lever actuator for precise mechanical to electrical action conversion.
- The PCB terminal design is resistant to flux, ensuring durability and safety in electronic assemblies.
- It provides a mechanical life of up to 500,000 cycles, guaranteeing long-term reliability.
- Operating force is low at 0.75 N, suitable for sensitive control applications.
- Functional temperature range from -25°C to 75°C supports varied environmental conditions.
- Conforms to RoHS standards for hazardous substances compliance.
- This switch is dimensionally identical to other popular brands for easy integration into existing designs.
- Ideal for home appliances, consumer electronics, factory automation, and other industrial uses.
Product Description
TE Connectivity SAJ13XXBL0N88SDTPTQ lever snap action micro switch is a miniature switch designed with a lever actuator and PCB terminal type. It supports a contact current of 3A and SPDT (single pole double throw) contact configuration. This micro switch provides a mechanical life up to 500,000 cycles, ensuring dependable operation in diverse applications.
Its low operating force of 0.75N enables precise switching action, suitable for a variety of industrial, commercial, and domestic applications including home appliances, consumer electronics, and factory automation systems. The switch is RoHS compliant and meets environmental standards.
Designed to operate reliably within a temperature range of -25°C to 75°C, this miniature snap action switch is dimensionally interchangeable with other popular brands, facilitating replacement or new designs without modification.
The PCB terminal construction resists flux, ensuring integrity during PCB soldering and long-term use. Its miniature form factor and lever actuator provide a sensitive and accurate switching mechanism.
The miniature micro switch features a lever actuator for precise mechanical to electrical action conversion. The PCB terminal design is resistant to flux, ensuring durability and safety in electronic assemblies. It provides a mechanical life of up to 500,000 cycles, guaranteeing long-term reliability.
Operating force is low at 0.75 N, suitable for sensitive control applications. Functional temperature range from -25°C to 75°C supports varied environmental conditions. Conforms to RoHS standards for hazardous substances compliance.
This switch is dimensionally identical to other popular brands for easy integration into existing designs. Ideal for home appliances, consumer electronics, factory automation, and other industrial uses. Manufactured in China, ensuring quality production standards.
This TE Connectivity Micro Switch is an ideal component choice for engineers and designers requiring a reliable, long life, miniature lever snap action switch compatible with a variety of control and sensing circuits.
Explore more TE Connectivity switches and related products on EnvMart to complete your automation and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 75°C.
This model features a single pole double throw (SPDT) contact configuration.
It provides a mechanical life of up to 500,000 cycles, ensuring long-term reliability.
The operating force for this switch is low at 0.75 N, making it suitable for sensitive control applications.
This switch uses a PCB terminal type design, which is resistant to flux.
The functional temperature range for this model is from -25°C to 75°C.
Yes, this micro switch conforms to RoHS standards for hazardous substances compliance.
It is suitable for home appliances, consumer electronics, factory automation, and other industrial uses.
The actuator type of this micro switch is a lever.
The country of origin for this product is China.
This switch is dimensionally identical to other popular brands, facilitating easy integration into existing designs.
The switch contact current rating is 3A.
