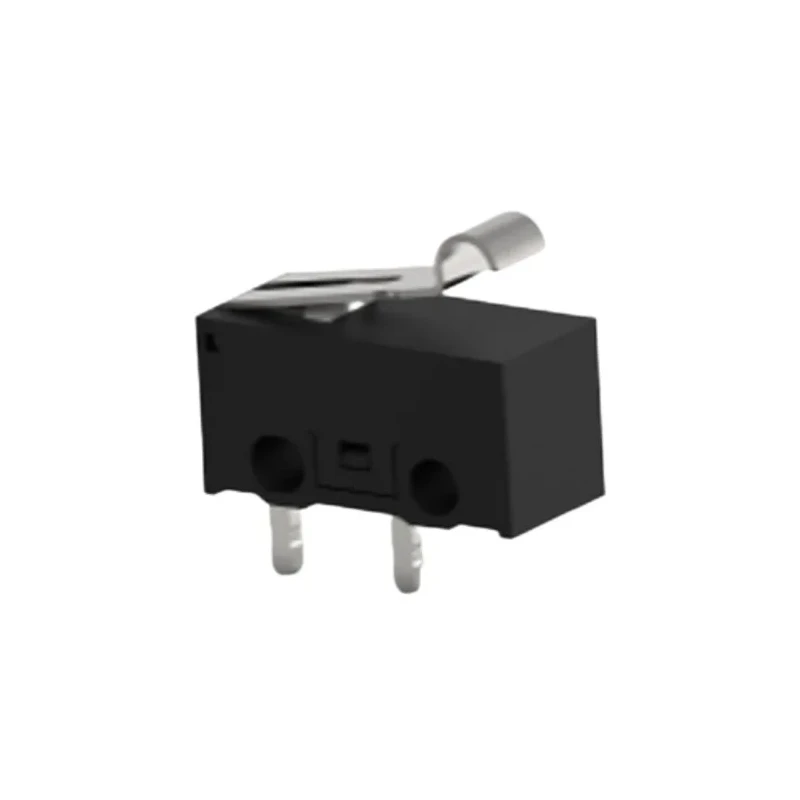

TE Connectivity Lever Snap Action Micro Switch PCB Terminal 0.1A SPST SAJ101XRHLN74SNOPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XRHLN74SNOPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- This micro switch features a lever actuator type for precise actuation.
- Designed with PCB terminals for easy circuit board mounting.
- Operates reliably at a switch contact current of 0.1A.
- Has a contact configuration of single pole single throw (SPST).
- Requires an operating force of only 0.75 Newtons for actuation.
- Rated for a mechanical life of up to 1,000,000 cycles.
- Supports operating temperatures from -25°C to 75°C.
- Conforms to RoHS standards ensuring environmental compliance.
Product Description
TE Connectivity SAJ101XRHLN74SNOPTQ Lever Snap Action Micro Switch is a highly reliable miniature micro switch designed to convert mechanical action into electrical signals. This model features a lever actuator type and comes with PCB terminals facilitating seamless mounting on printed circuit boards.
The switch supports a contact current of 0.1A and an SPST contact configuration, ideal for switching low current loads reliably.
With an operating force of 0.75N, it ensures quick and efficient switching action and boasts a mechanical life of 1,000,000 cycles, enhancing its durability for industrial and consumer applications.
Its operating temperature range is from -25°C to 75°C, making it suitable for various environments including home appliances and industrial automation machines. The product conforms to RoHS standards, ensuring restriction of hazardous substances and environmental safety.
This micro switch is miniature in size, making it ideal for compact and space-sensitive designs. The lever actuator allows for versatile actuation options in diverse applications. PCB terminal design ensures reliable connections and ease of installation.
Long mechanical life offers dependable performance over extensive use cycles. RoHS compliance supports environmentally responsible manufacturing and disposal. Explore more micro switch products in the Electronics & Electricals section at EnvMart.
Explore more products in our Micro Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this micro switch is 75°C.
This model features a single pole single throw (SPST) contact configuration.
The switch contact current for this micro switch is rated at 0.1A.
It uses a lever actuator type for actuation.
The required operating force for actuation is 0.75 Newtons.
This model has a mechanical life rating of up to 1,000,000 cycles.
The minimum operating temperature is -25°C.
It features PCB terminals for easy mounting on printed circuit boards.
Yes, it conforms to RoHS standards, ensuring environmental compliance.
This model is suitable for various applications including home appliances and industrial automation machines.
It is classified as a miniature micro switch, making it ideal for compact designs.
This micro switch belongs to the SAJ1 series.
