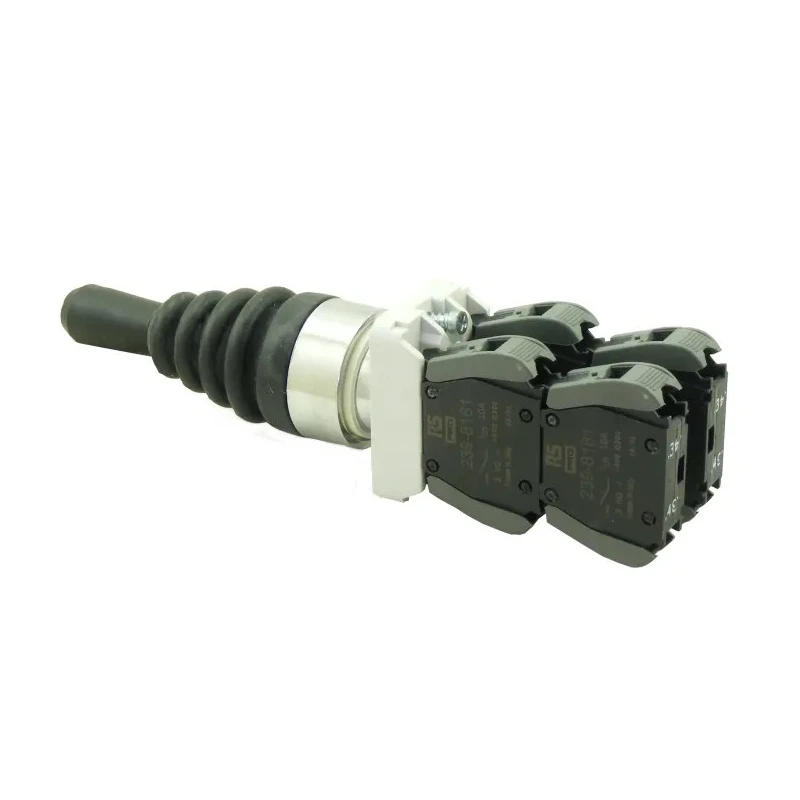

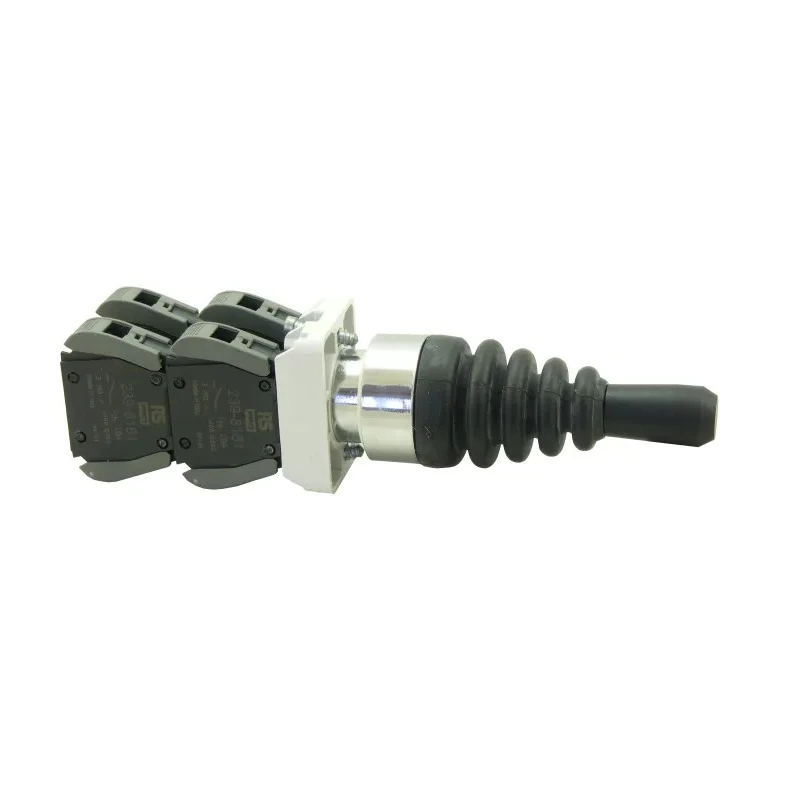

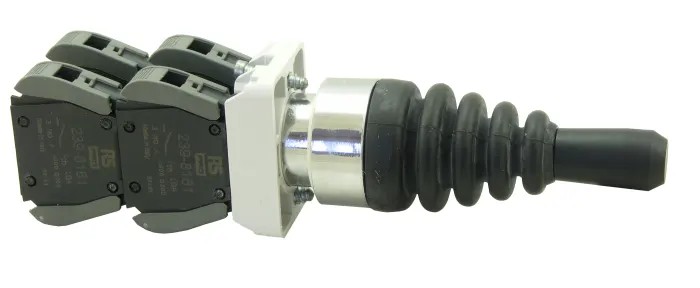

RS PRO Joystick with IP65 and IP20 Ratings, DPST Contact Configuration, 400 V AC, 250 V DC, Model 239-8198

RS PRO 239-8198 joystick is a robust and reliable industrial joystick designed for precise control in automation and electrical control systems. It features a DPST (Double Pole Single Throw) contact configuration with rated contact voltages of 400 V AC and 250 V DC, making it suitable for diverse industrial applications.

This joystick has an IP65 rating on the front panel, protecting it against dust and water ingress, and an IP20 rating for internal components, ensuring internal safety. The body is constructed from chrome-plated zamak, enhancing mechanical resistance, and includes metallic operators for durability and longevity.

The unit mounts on front panels with a 22.5 mm cut-out diameter and offers secure connections via screw terminals with captive cable clamps. Its compact size, measuring 30 mm in outer diameter and 79 mm in total height, facilitates easy integration into control panels.

The joystick is designed to operate reliably within ambient temperatures from -25°C to +70°C and can withstand mechanical stress up to 0.3 million operations. It meets international safety and quality standards, including CE, EN 60947-5-1, UL 508, and UKCA certifications.

Designed with a DPST contact configuration for reliable switching performance. Operates at 400 V AC and 250 V DC voltage levels for versatile electrical applications. Chrome-plated zamak body and metallic operators ensure mechanical strength and durability.

Equipped with screw terminals and captive cable clamps for secure electrical connections. Compact dimensions with 30 mm outer diameter and 79 mm height for easy panel mounting. Capable of operating within temperature ranges of -25°C to 70°C, suitable for harsh environments.

Mechanical durability rated at 0.3 million operations with a B10d value of 0.6 million operations. Momentary push-button actuation providing precise control. Certified to CE, EN 60947-5-1, UL 508, and UKCA standards for safety and performance.

This joystick is frequently used in automotive industrial controls, control systems, and other industrial automation applications requiring robust, precise input devices. Its high-quality construction ensures long-lasting performance even in demanding industrial environments.

For additional technical information, RS PRO offers design support with 3D models and schematics, enabling easy integration into your projects. Browse the Joysticks category at EnvMart for similar high-quality industrial control products.
