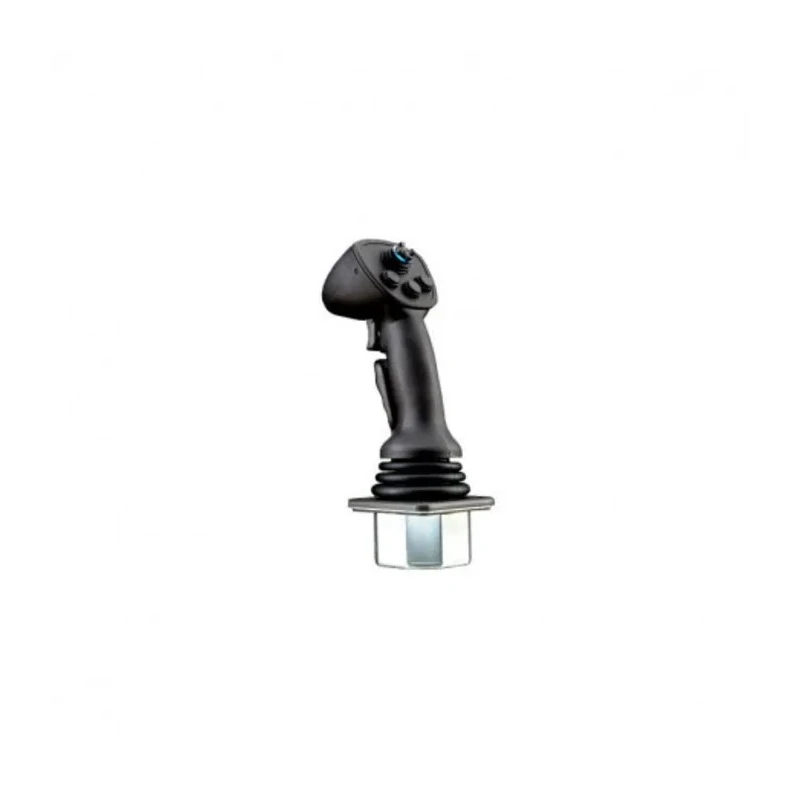

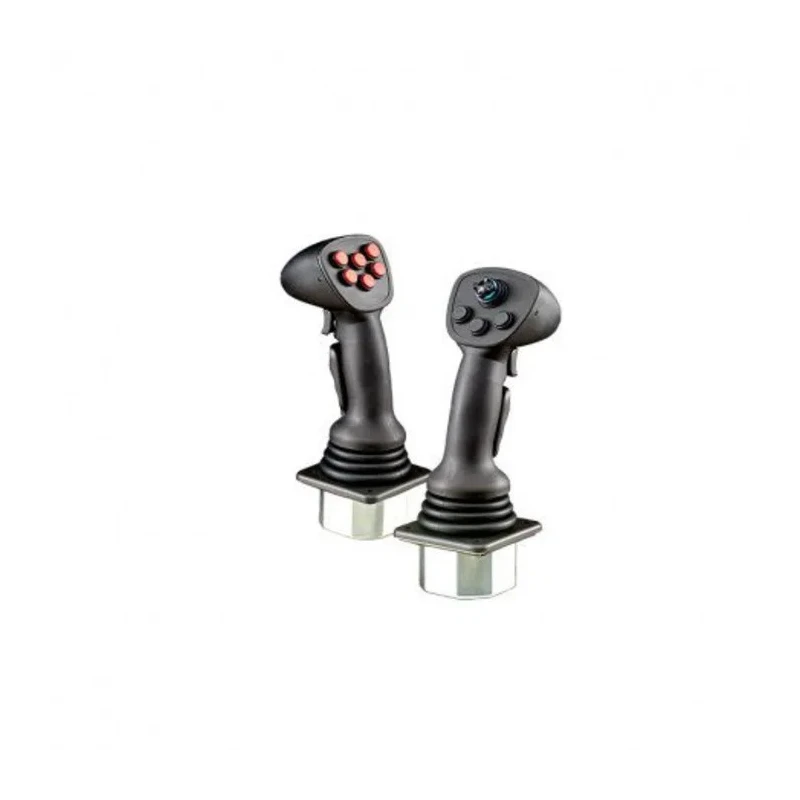

APEM XD Series 2-Axis Joystick Hall Effect IP67 35V DC

APEM XDGTT2MNNCYYMAN is a premium 2-axis joystick from the XD Series, featuring advanced Hall effect technology for highly reliable, non-contacting operation in demanding environments. Engineered specifically for off-highway vehicles and industrial applications, this joystick offers exceptional durability and precision.

The XD Series joystick's IP67 ingress protection means it is sealed against dust and liquids, suitable for both indoors and rugged outdoor use. Its compact design measures only 60 mm below panel, making it suitable for shallow mounting locations without compromising performance.

This joystick operates at a maximum of 35 V DC and provides ±20° travel, delivering sensitive control for vehicle or machinery operators. Its all-metal body withstands horizontal loads up to 400 lbf (1780 N), ensuring robust resistance to mechanical stress, while the unique uni-body handle with modular inserts allows flexibility in control configuration. Insert options include an index trigger switch, operator presence paddle, and customizable faceplate for tailored system integration.

With redundant Hall sensors, the joystick offers up to 10 million cycles for dependable long-term operation. Its wide operational temperature range of -40°C to 85°C ensures functionality in extreme climates, making it suitable for construction, agricultural equipment, material handling vehicles, and other industrial controls where reliability is critical.

The Hall effect sensor technology enables smooth, contactless motion sensing, minimizing wear and eliminating signal drift that can occur with traditional potentiometer-based joysticks. Environmental sealing above panel further protects against challenging conditions.

Typical industrial applications include off-road vehicle controls, machinery automation, factory equipment interfaces, and commercial transportation systems. Explore reliable control solutions from APEM and browse the EnvMart Joysticks category for additional high-performance vehicle and industrial control devices.
