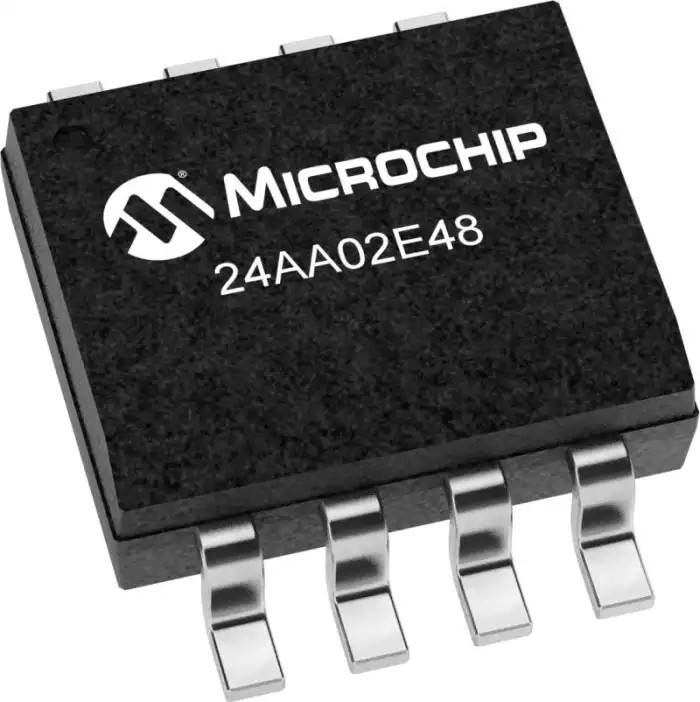

Microchip 2 kB Serial EEPROM 900 ns 8-Pin SOIC Serial-I2C (2 Wire) 24AA02E48T-I/SN

Microchip 24AA02E48T-I/SN 2 kB Serial EEPROM is a reliable, low-power serial memory device designed with CMOS technology for industrial and commercial applications requiring durable data storage. It features a Serial-I2C (2 wire) compatible interface enabling simple integration into electronic circuits.

The device is organized as 256 words of 8 bits each, divided into two blocks of 128 x 8-bit memory, housed in a compact 8-pin SOIC surface mount package measuring 4.9 mm in length, 3.9 mm in width, and 1.75 mm in height. Its operation supports clock frequencies up to 1 MHz, with compatibility for 100 kHz and 400 kHz speeds, making it versatile across different bus speeds.

Running on a single supply voltage ranging between 1.7 V to 5.5 V, the EEPROM ensures low power consumption with a maximum read current of 1 mA and a standby current as low as 1 μA. Its robust design offers ESD protection over 4000 V, Schmitt trigger inputs for enhanced noise immunity, and data retention capability exceeding 200 years, providing reliable performance in demanding environments.

This EEPROM supports more than one million read/write cycles and functions within industrial temperature ranges from -40°C to +85°C. The device is RoHS compliant and does not meet automotive standards, making it best suited for general industrial, manufacturing, electronic component assembly, and embedded system applications.

Low-power CMOS technology supporting over 1 million read/write cycles. Extensive data retention of more than 200 years for long-term reliability. Compact 8-pin SOIC surface mount packaging for space-constrained designs. Supports clock frequencies up to 1 MHz, compatible with common I2C bus speeds.

Wide supply voltage operation range from 1.7 V to 5.5 V ensuring flexibility. Industrial operating temperature range from -40°C to 85°C for harsh environments. Schmitt trigger inputs for noise suppression and enhanced signal integrity.

High ESD protection level over 4000 V for component durability. 256 x 8-bit memory organization provides 2 kB of serial EEPROM capacity.

Ideal for industrial electronics, small embedded system applications, communication devices, and general purpose non-volatile memory needs. This EEPROM supports I2C bus configurations and is well-suited for data logging, configuration storage, and calibration data retention tasks.
