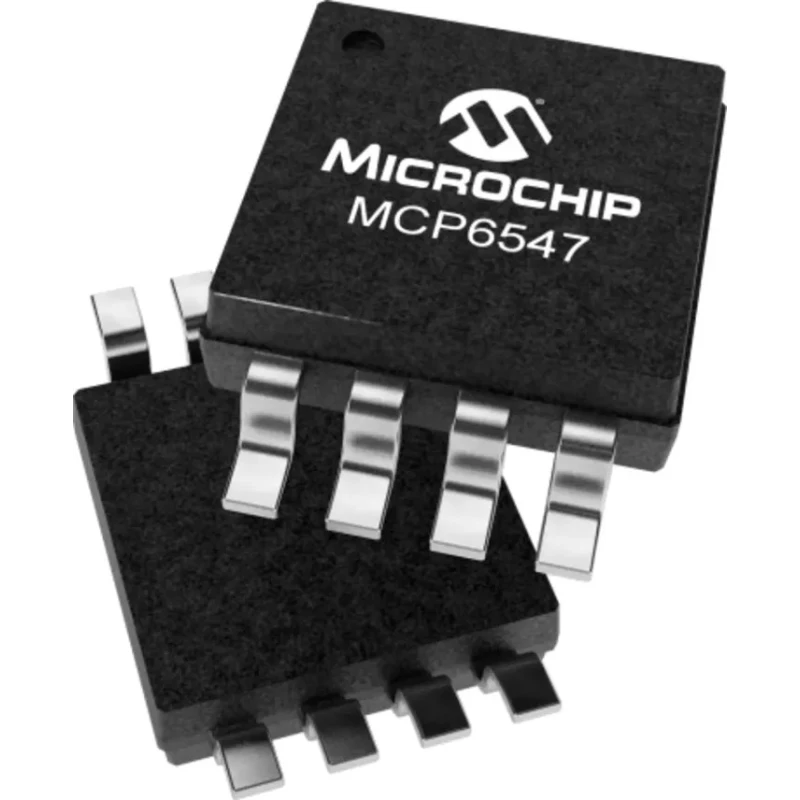

Microchip MCP6547T-I/MS Sub Microamp Comparator Open Drain CMOS Output 1.6V to 5.5V 8-Pin SOIC MCP6547T-I/MS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.1mm |
| Length | 2.25mm |
| Model | MCP6547T-I/MS |
| Width | 2.4mm |
| Mount Type | Surface |
| Output type | Open Drain, CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Comparator Type | Sub Microamp |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.6V |
| Supply Current | 600nA |
Key Features
- The comparator features ultra-low quiescent current of 600 nA for energy efficient operation.
- Offers rail-to-rail input operation optimized for low power single-supply applications.
- Includes open-drain outputs capable of driving heavy DC or capacitive loads.
- Supports industrial temperature range from -40°C to +125°C for robust use.
- Typical propagation delay is 4 microseconds with 100 mV overdrive, ensuring fast response.
- Outputs can be used as level-shifters up to 10V with pull-up resistors.
- Complies with automotive standard AEC-Q100 ensuring quality and reliability.
- Compact dimensions of 2.25 mm length, 2.4 mm width, and 1.1 mm height suit space-constrained designs.
Product Description
Microchip MCP6547T-I/MS is a dual comparator designed for ultra-low power applications requiring precision and flexibility. It features an open-drain CMOS output stage that allows for wired-OR logic and level shifting in mixed voltage systems, operating from a single supply voltage as low as 1.6 V up to 5.5 V.
The device draws a quiescent current of only 600 nA per comparator, making it ideal for portable and battery-powered electronics. The rail-to-rail input stage guarantees performance over the full input voltage range, enhancing design versatility.
Typical propagation delay of 4 µs with 100 mV overdrive ensures timely system responses. The comparator supports operation in industrial temperature range (-40°C to +125°C), suitable for harsh environmental conditions.
Its open-drain outputs can handle heavy DC or capacitive loads and provide level shifting up to 10 V using pull-up resistors. This flexibility is critical in automotive and industrial electronics where multiple voltage domains exist.
The compact 8-Pin SOIC package (2.25 mm length x 2.4 mm width x 1.1 mm height) optimizes board space. Compliance with the automotive AEC-Q100 standard underlines the component quality and robustness.
Ultra-low power consumption of 600 nA per comparator. Wide supply voltage range: 1.6 V to 5.5 V. Rail-to-rail input for full voltage range sensing. Open-drain outputs for level shifting and wired-OR configurations. Industrial temperature operation (-40°C to +125°C).
High-speed response with 4 µs propagation delay typical. Compact 8-Pin SOIC package dimensions. Automotive AEC-Q100 certification for reliability.
This comparator is widely used in industrial, automotive, consumer electronics, and instrumentation applications for signal conditioning, threshold detection, and level shifting tasks.
Explore more Microchip semiconductor solutions and Comparator products on EnvMart for reliable and innovative electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 1.6V to 5.5V.
The comparator features a quiescent current of only 600 nA per comparator, making it energy efficient.
It has a typical propagation delay of 4 microseconds with a 100 mV overdrive, ensuring fast response times.
The MCP6547T-I/MS supports an industrial temperature range from -40°C to +125°C, suitable for harsh environments.
This unit features open-drain outputs, allowing for wired-OR logic and level shifting in mixed voltage systems.
The dimensions of this comparator are 2.25 mm in length, 2.4 mm in width, and 1.1 mm in height, making it compact for space-constrained designs.
Yes, it complies with the automotive standard AEC-Q100, ensuring quality and reliability in automotive applications.
This comparator is packaged in an 8-Pin SOIC format, suitable for surface mounting.
Yes, the open-drain outputs can drive heavy DC or capacitive loads effectively.
This comparator is widely used in industrial, automotive, consumer electronics, and instrumentation for tasks like signal conditioning and threshold detection.
It is classified as a Sub Microamp comparator, designed for ultra-low power applications.
This model is designed for surface mounting, optimizing board space in electronic applications.
