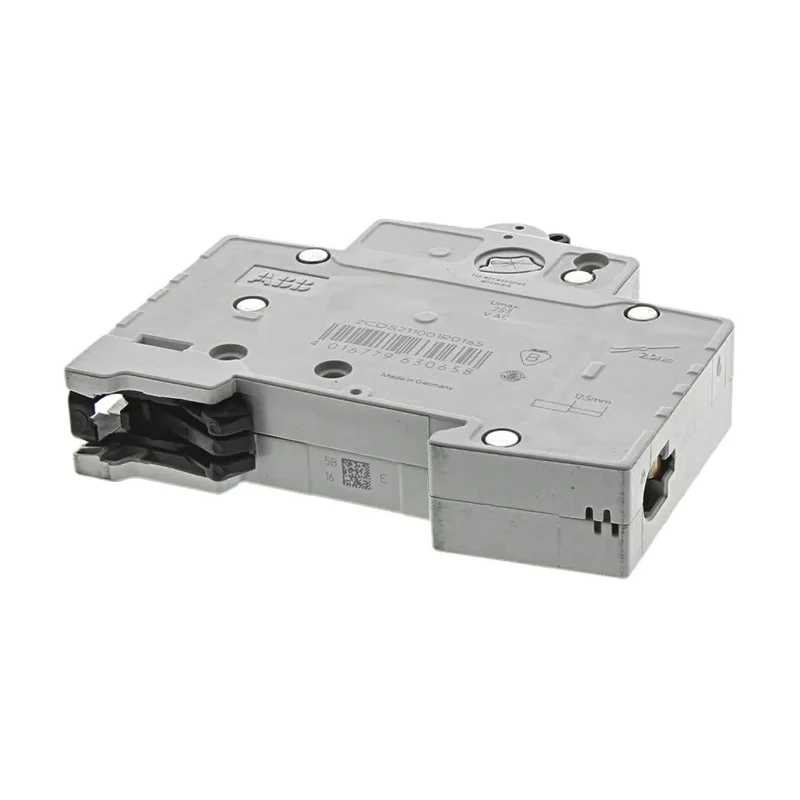

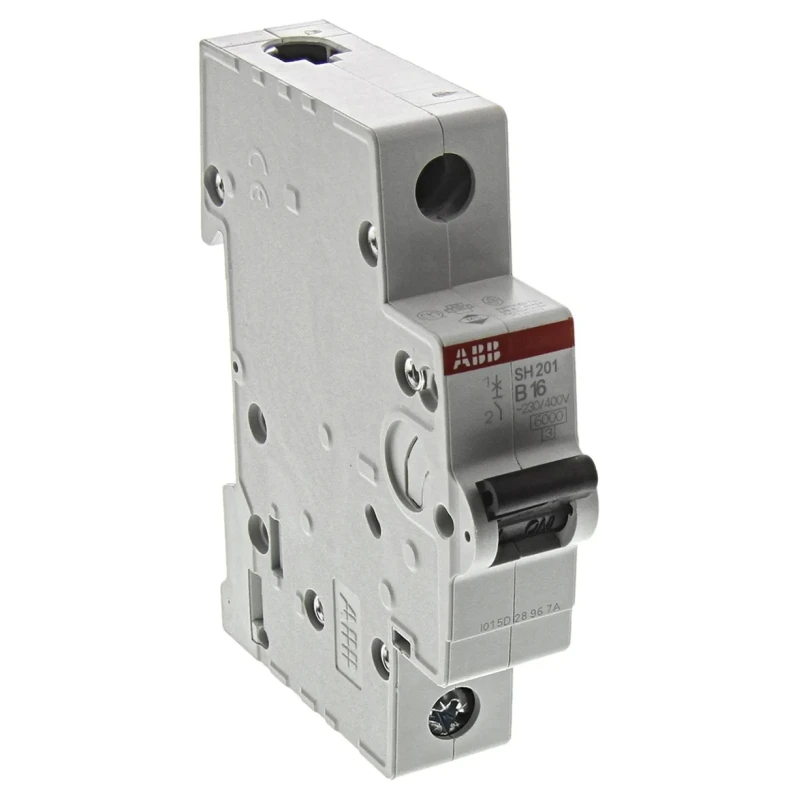

ABB ComPact Home Miniature Circuit Breaker, 1-Pole, 16A, Type B, 440V AC, 60V DC, 6 kA Breaking Capacity SH200

Free Delivery in India | Lowest Global Shipping Charges

ABB ComPact Home Miniature Circuit Breaker, 1-Pole, 16A, Type B, 440V AC, 60V DC, 6 kA Breaking Capacity SH200



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	ComPact Home
Brand	ABB
Height	85mm
Model	SH200
Depth	69mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	16A
Series	SH200
Terminal type	Screw Clamp
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1
Rated AC Voltage	440V ac
Rated DC Voltage	60V dc
Tripping Characteristics	Type B
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle Switch

Key Features

Compact design enables space-saving installation on DIN rail.
Type B tripping characteristic ensures automatic protection for domestic applications.
Supports rated voltages up to 440V AC and 60V DC for wide application.
Breaking capacity of 6 kA safeguards circuits from faults effectively.
Screw clamp terminals provide secure and reliable connections.
IP20 enclosure rating suitable for indoor electrical installations.
Built to IEC/EN 60898-1 standards for safety and performance assurance.
Toggle switch actuator allows easy manual operation and reset.

Product Description

ABB SH200 Miniature Circuit Breaker is engineered for efficient electrical protection in home and commercial environments. The 1-pole device rated for 16 amps with Type B tripping characteristic offers dependable performance for overload and short-circuit interruption, confirming to IEC/EN 60898-1 standards.

It features a compact form factor designed for easy installation on DIN rails, facilitating neat wiring and saving panel space. Suitable for operating voltages up to 440V AC and 60V DC, the breaker accommodates various electrical setups, including domestic lighting and appliance circuits.

The robust 6 kA breaking capacity ensures rapid interruption during fault conditions, preventing damage to electrical infrastructure. The device uses screw clamp terminal types for secure wiring, supporting a recommended tightening torque of 2 N·m to guarantee connection integrity.

With an IP20 protection rating, this circuit breaker is intended for indoor use in environments with temperature range between -25°C and 55°C. It includes a toggle switch actuator for manual switching and easy resetting following trip events, supporting maintenance and operational convenience.

This product also embraces ABB’s Better World initiative by being designed for disassembly, promoting reuse and recycling, contributing to sustainable electrical installations. Compact design for effective space utilization.

Type B tripping mechanism suitable for residential applications. Supports both AC and DC voltages. High breaking capacity of 6 kA for enhanced safety. Complies with IEC/EN 60898-1 standards for circuit breakers. Toggle switch for simple operation and reset.

Secure screw clamp terminals with recommended torque. IP20 rated for indoor electrical environments. Operating temperature range of -25°C to 55°C. Made in Germany ensuring high quality manufacturing.

This ABB SH200 Miniature Circuit Breaker is ideal for use in residential wiring, commercial electrical panels, and various electrical protection circuits requiring reliable overload and short circuit interruption. It ensures safety, compliance, and sustainability for diverse electrical applications.

Browse more premium circuit breakers and electrical protection devices at EnvMart to find additional solutions suitable for your industrial and commercial needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The ABB SH200 Miniature Circuit Breaker has a breaking capacity of 6 kA, which effectively safeguards circuits from faults.

This model supports rated voltages of up to 440V AC and 60V DC, making it suitable for a variety of electrical setups.

The circuit breaker features a Type B tripping characteristic, which is designed for automatic protection in domestic applications.

It is designed for mounting on DIN rails, facilitating easy and space-saving installation in electrical panels.

The dimensions of this unit are 85mm in height, 69mm in depth, and 17.5mm in width.

The ABB SH200 utilizes screw clamp terminals, which provide secure and reliable connections for wiring.

The ABB SH200 has an IP20 enclosure rating, indicating it is suitable for indoor electrical installations.

This circuit breaker operates effectively within a temperature range of -25°C to 55°C.

It complies with IEC/EN 60898-1 standards, ensuring safety and performance assurance for circuit breakers.

The ABB SH200 features a toggle switch actuator, allowing for easy manual operation and reset after a trip event.

This circuit breaker is manufactured in Germany, ensuring adherence to high manufacturing standards.

It is ideal for use in residential wiring, commercial electrical panels, and various electrical protection circuits requiring reliable overload and short circuit interruption.
