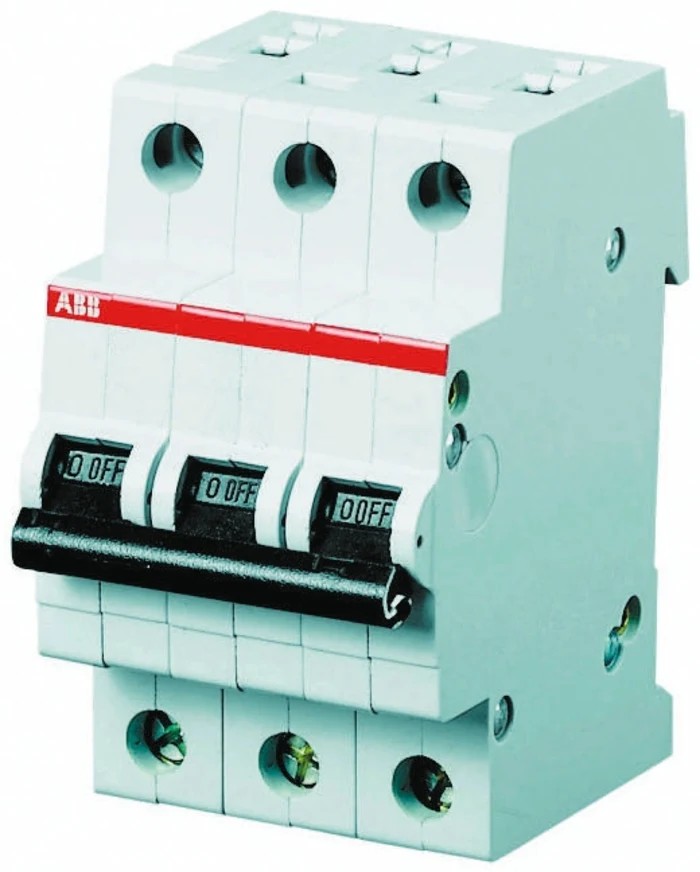

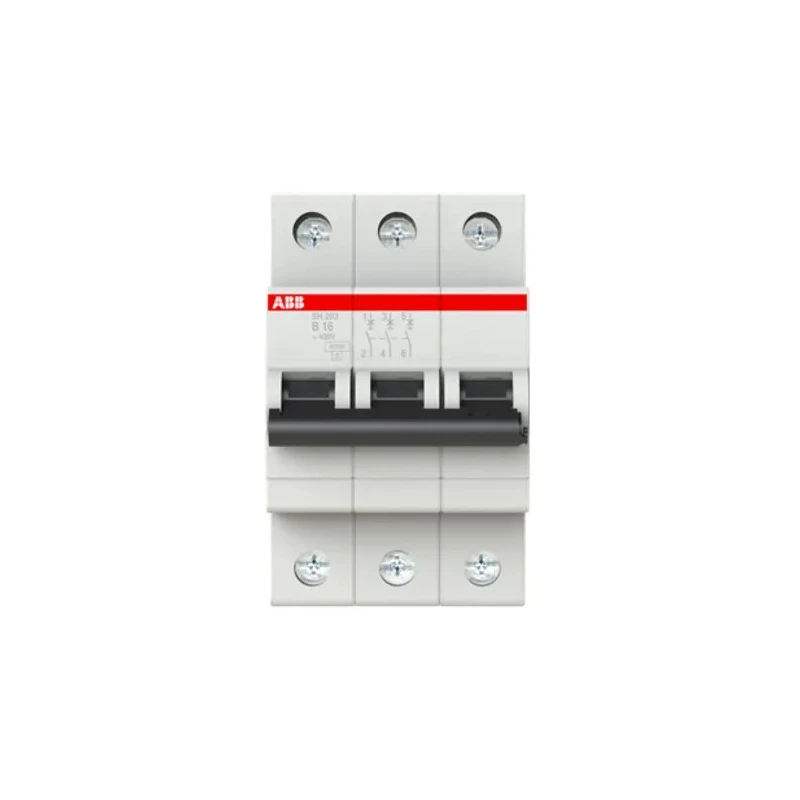

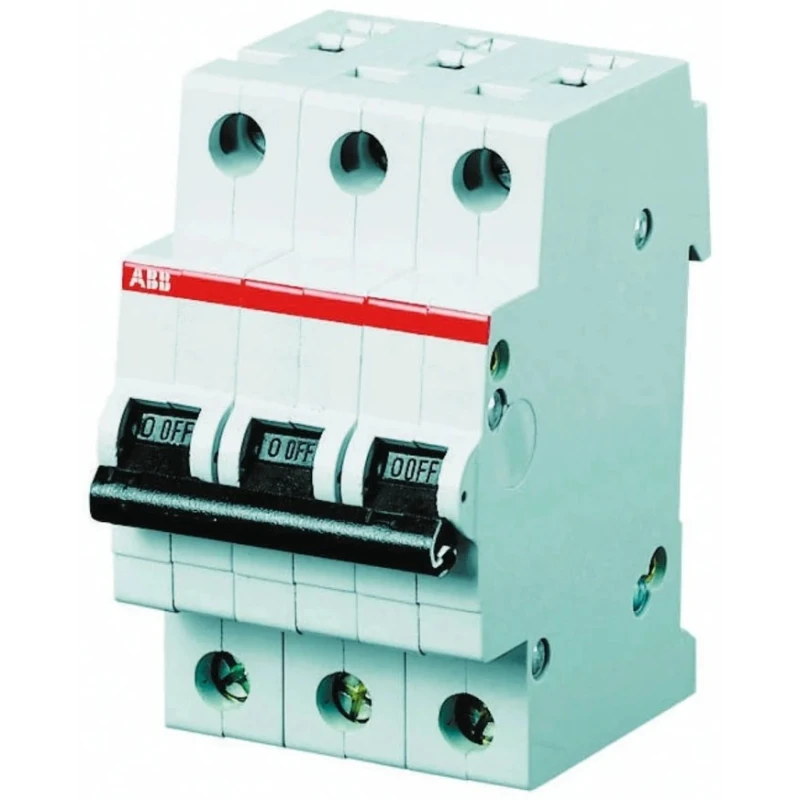

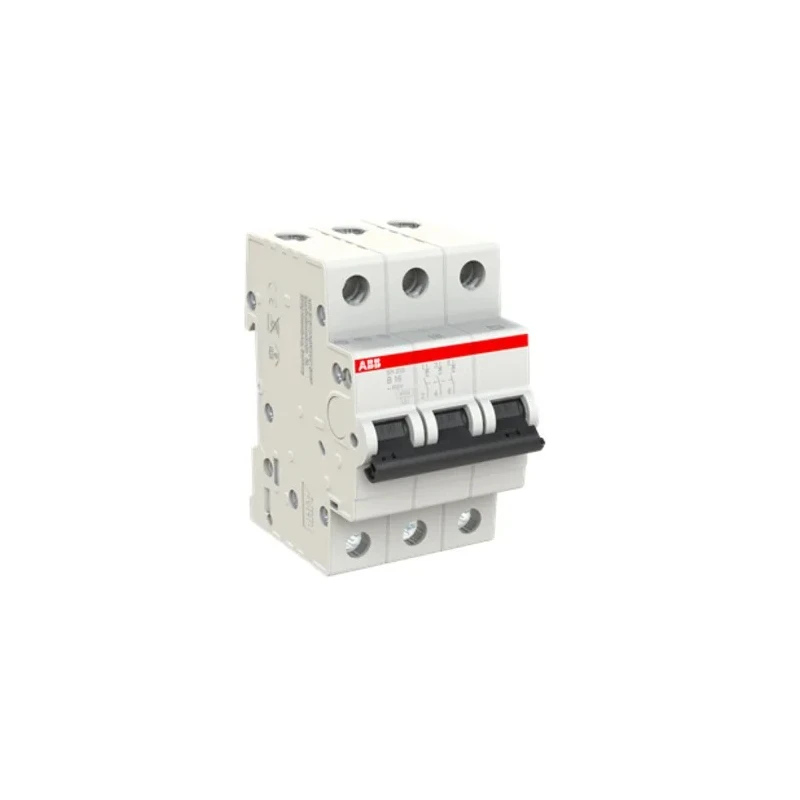

ABB ComPact Home Miniature Circuit Breaker 3-Pole 16A Type B 440V AC 6 kA Breaking Capacity SH200

ABB SH200 Miniature Circuit Breaker is a high-quality 3-pole circuit protection device rated for 16 amperes and Type B tripping characteristics. It operates at a rated AC voltage of 440 volts with a breaking capacity of 6 kiloamperes, making it well-suited for residential and light commercial electrical circuits.

This MCB uses thermal and electromechanical mechanisms to protect wiring and appliances from overload and short circuits, tripping rapidly when currents exceed 3 to 5 times the rated load. Its compact form factor (85 mm height, 52.5 mm width, 69 mm depth) enables space-saving installation within consumer units or control panels.

Installation is facilitated by DIN rail mounting compatible with standard rails and screw-type terminals for secure connections. The device supports a wide ambient operating temperature range of -25°C to +55°C, contributing to reliable performance in diverse environments.

Compliant with international standards IEC/EN 60898-1 and BS EN 60898, this MCB ensures high electrical safety and reliability. It boasts a long electrical endurance of 20,000 switching cycles and an IP20 ingress protection rating for protection against solid objects larger than 12 mm.

Notably, the SH200 series is classified as a Better World product designed for disassembly, promoting sustainability in electrical installations. Thermal and electromechanical protection against overloads and short circuit conditions.

6 kA breaking capacity for surge handling in low-power systems. Type B trip curve for protection of lighting and appliance circuits. Compact dimensions optimize space in electrical panels. Durable screw terminal connections ensure secure wiring.

Wide temperature rating supports installation in challenging environments. Compliant with IEC/EN and BS EN electrical safety standards. IP20 rating protects against solid objects and low moisture ingress. 20,000 operating cycles guarantee long service life.

Designed for easy disassembly to support environmental sustainability.

This ABB ComPact Home SH200 Miniature Circuit Breaker is ideal for use in consumer units, safety circuits, and building management systems. Its reliable protection enhances electrical safety in domestic and light commercial settings.
