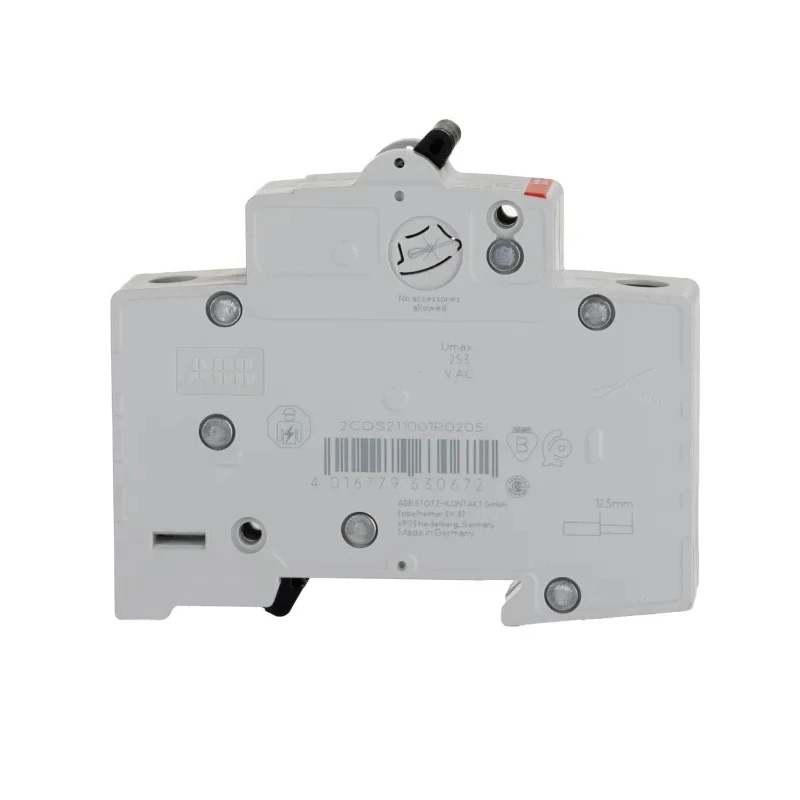

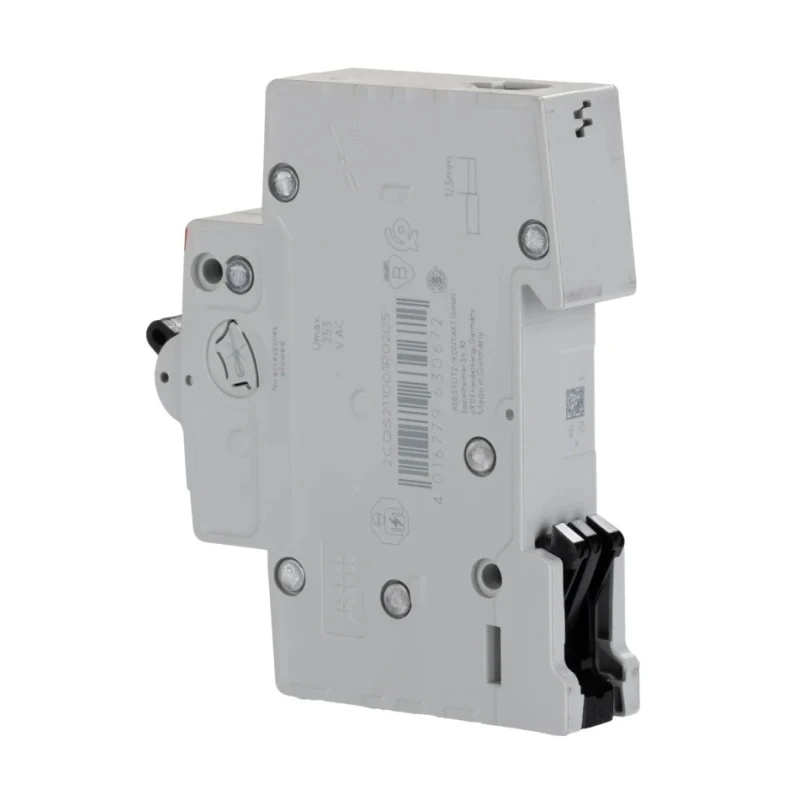

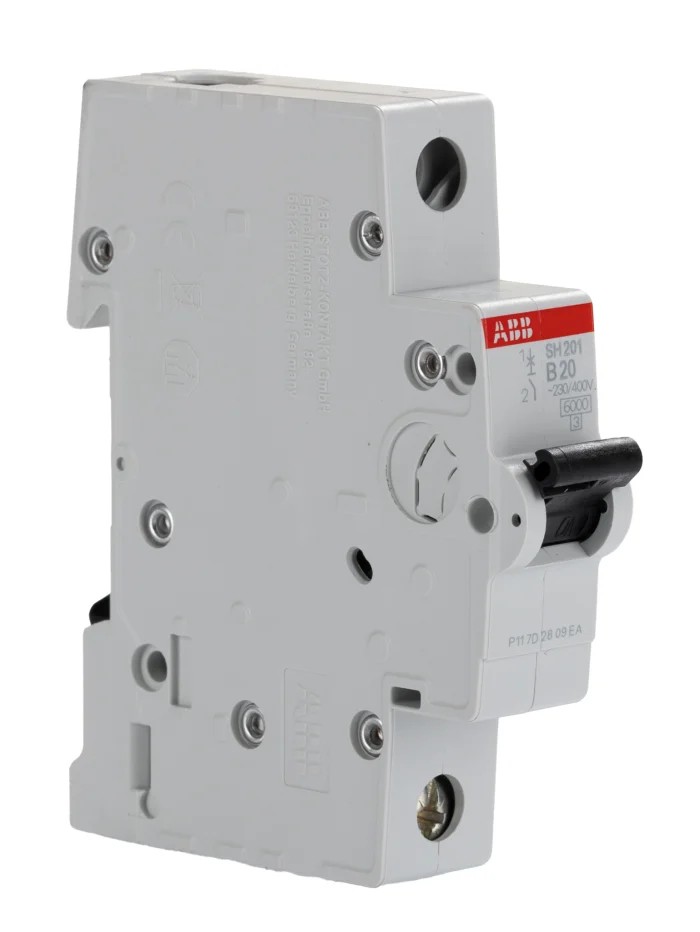

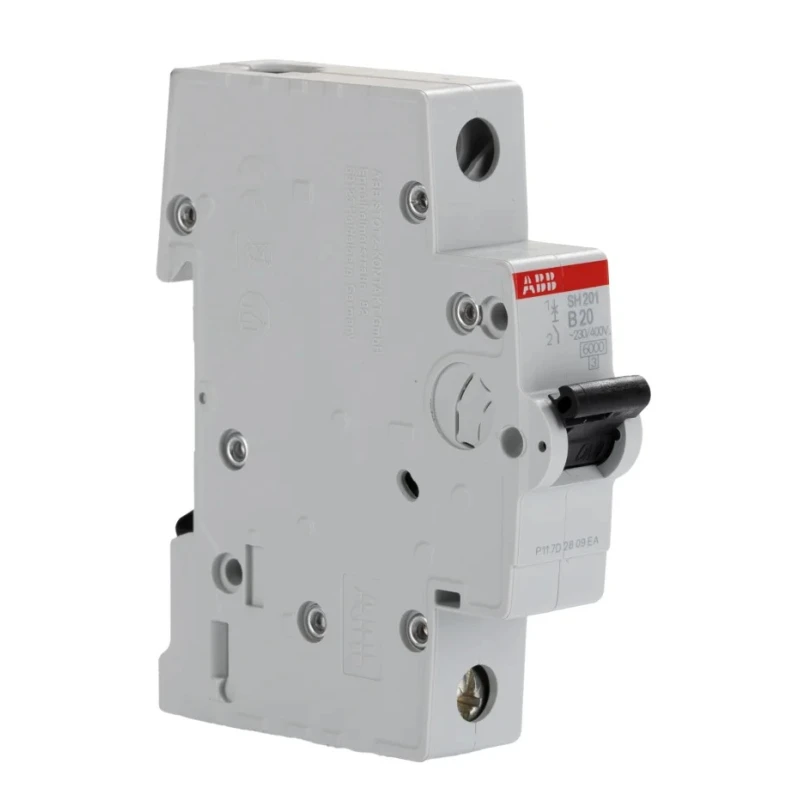

ABB ComPact Home Miniature Circuit Breaker, 1-Pole, 20A, Type B, 440V AC, 60V DC, 6kA Breaking Capacity SH200

Free Delivery in India | Lowest Global Shipping Charges

ABB ComPact Home Miniature Circuit Breaker, 1-Pole, 20A, Type B, 440V AC, 60V DC, 6kA Breaking Capacity SH200



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	ComPact Home
Brand	ABB
Height	85mm
Model	SH200
Depth	69mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	20A
Series	SH200
Terminal type	Screw Clamp
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1
Rated AC Voltage	440V ac
Rated DC Voltage	60V dc
Tripping Characteristics	Type B
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle Switch

Key Features

Offers a 6kA breaking capacity for effective overload and short circuit protection.
Compatible with rated voltages of up to 440V AC and 60V DC.
DIN rail mount type provides easy and flexible installation.
Constructed with a screw clamp terminal type for secure wiring connections.
Features an IP20 rating suitable for dry environments.
Toggle switch reset actuator allows for simple manual operation.
Designed with electromagnetic and thermomagnetic tripping mechanisms.
Complies with IEC/EN 60898-1 standards for circuit breakers.

Product Description

ABB SH200 Miniature Circuit Breaker (Model 2CDS211001R0205 SH201-B20) is engineered for efficient circuit protection in residential and light commercial applications. This 1-pole breaker is rated for 20A current and offers reliable protection against overloads and short circuits with Type B tripping characteristics.

Its compact design enables installation on standard DIN rails, making it ideal for space-constrained electrical panels. The breaker operates safely at electrical ratings of 440V AC and 60V DC, supporting both alternating and direct current circuits. The device features a robust screw clamp terminal for solid electrical connections and an IP20 enclosure for protection suitable for dry conditions.

The electromagnetic and thermomagnetic tripping mechanisms ensure precise and timely disconnection during fault conditions. Designed for disassembly, this breaker supports environmental sustainability by facilitating easier end-of-life processing.

Compliance with IEC/EN 60898-1 standards guarantees its performance and safety. Its compact dimensions of 85mm height, 69mm depth, and 17.5mm width aid in efficient panel layouts. Manufactured in Germany, the product reflects high-quality engineering standards.

6 kA breaking capacity for dependable circuit protection. DIN rail mounting for easy installation and maintenance. Toggle switch actuator for manual reset and operation. Type B tripping characteristic ideal for general residential loads.

IP20 rated enclosure suitable for dry indoor environments. Designed for disassembly to promote sustainability. Compatible with voltage ratings: 440V AC and 60V DC. Robust screw clamp terminals ensure secure wiring. Compact dimensions optimized for space-saving panel design.

This ABB miniature circuit breaker is essential for safeguarding lighting circuits, household appliances, and small machinery wiring configurations. It is applicable in industrial, residential, commercial, and electrical automation installations.

Discover more quality electrical protection devices like the ABB SH200 Miniature Circuit Breaker in the Electronics & Electricals category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The ABB ComPact Home Miniature Circuit Breaker has a breaking capacity of 6kA, providing effective overload and short circuit protection.

It is compatible with rated voltages of up to 440V AC and 60V DC, making it suitable for both alternating and direct current circuits.

This model is designed for DIN rail mounting, which allows for easy and flexible installation in electrical panels.

The breaker features both electromagnetic and thermomagnetic tripping mechanisms for precise and timely disconnection during fault conditions.

The dimensions of this miniature circuit breaker are 85mm in height, 69mm in depth, and 17.5mm in width, optimizing it for space-saving panel design.

It has an IP20 rating, which is suitable for dry indoor environments.

It is constructed with a screw clamp terminal type, ensuring secure wiring connections.

This miniature circuit breaker complies with IEC/EN 60898-1 standards, ensuring its performance and safety in electrical applications.

The ABB ComPact Home Miniature Circuit Breaker is rated for a current of 20A.

It features a toggle switch reset actuator, allowing for simple manual operation.

This model is manufactured in Germany, reflecting high-quality engineering standards.

It is applicable in residential, commercial, and light industrial installations, safeguarding lighting circuits, household appliances, and small machinery wiring configurations.
