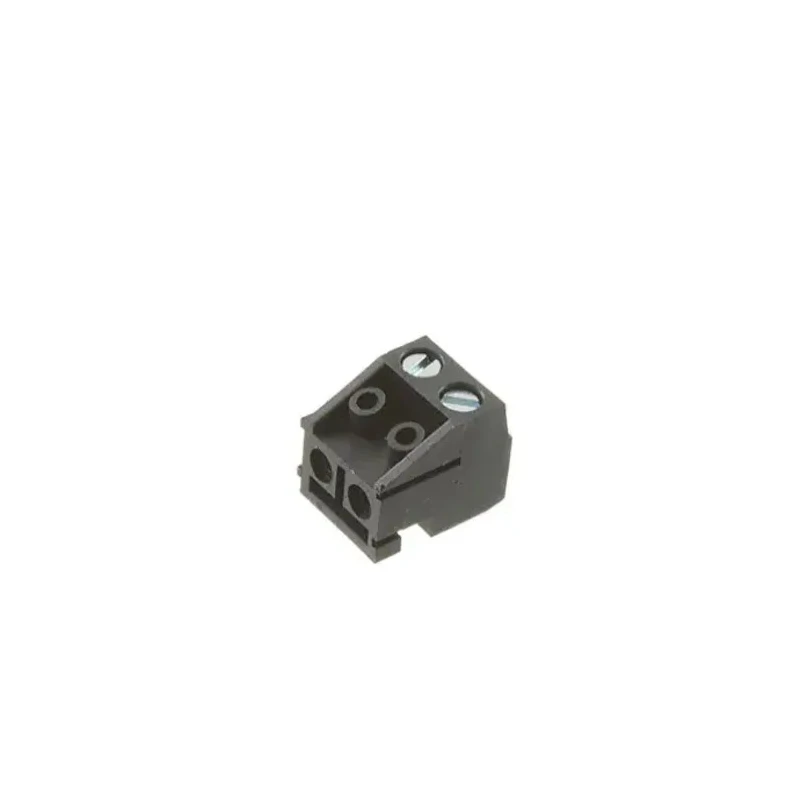

RS PRO Pluggable Terminal Block 2-Contact 5 mm Pitch 1 Row 10A Polyamide Housing 300V 237-8457

RS PRO 237-8457 Pluggable Terminal Block is a high-quality connector designed with precision for effective PCB mounting and secure wire connections. Featuring a 2-contact configuration and 5 mm pitch, this terminal block is suitable for various industrial and commercial electrical applications. It operates safely at currents up to 10A and voltages of 300V, making it reliable for both low and moderate power circuits.

The terminal block is constructed with a robust polyamide housing which offers excellent durability and electrical insulation. Its push-in wire connection method facilitates quick and easy installation. This model features a female connector gender and supports wire sizes from 28 AWG to 16 AWG (up to 1.5 mm²), accommodating diverse wiring needs.

Measuring 13.4 mm in width, 11 mm in depth, and 10 mm in length, the compact design allows efficient use of space on printed circuit boards. Designed with industry-standard compatibilities, this pluggable terminal block supports multi-position configurations thanks to its dovetail design, enabling expandable and flexible wiring solutions.

Certified RoHS compliant, the product meets environmental safety standards by restricting hazardous substances in manufacturing. Applications span across electronics manufacturing, automotive wiring harnesses, medical devices, industrial control systems, and other sectors requiring secure and maintainable electrical connections.

The RS PRO series Pluggable Terminal Blocks provide a captive screw with a rising clamp design and a unique wire guard to ensure reliable clamping and ease of maintenance. The screw mechanism is supplied in an open 'wire ready' position, reducing installation time and facilitating quick maintenance.

Constructed with durable polyamide housing for insulation and mechanical stability. Supports a maximum current of 10 amps and voltage rating up to 300 volts. Features push-in wire connection with female connector gender for ease of use.

Compatible with wire sizes ranging from 28 AWG to 16 AWG and wire area up to 1.5 mm². Industry standard 5 mm pitch with straight orientation simplifies multi-position mounting. Compact dimensions of 13.4 mm width, 11 mm depth, and 10 mm length for space-saving PCB design.

Complies with RoHS standards ensuring environmentally safe manufacturing processes. Ideal for electronic devices, automotive, healthcare, and industrial equipment requiring reliable terminal connections.

Choose RS PRO for trusted quality terminal blocks tested against demanding industrial standards. Explore more PCB terminal blocks and connectors in the Electronics & Electricals category at EnvMart.
