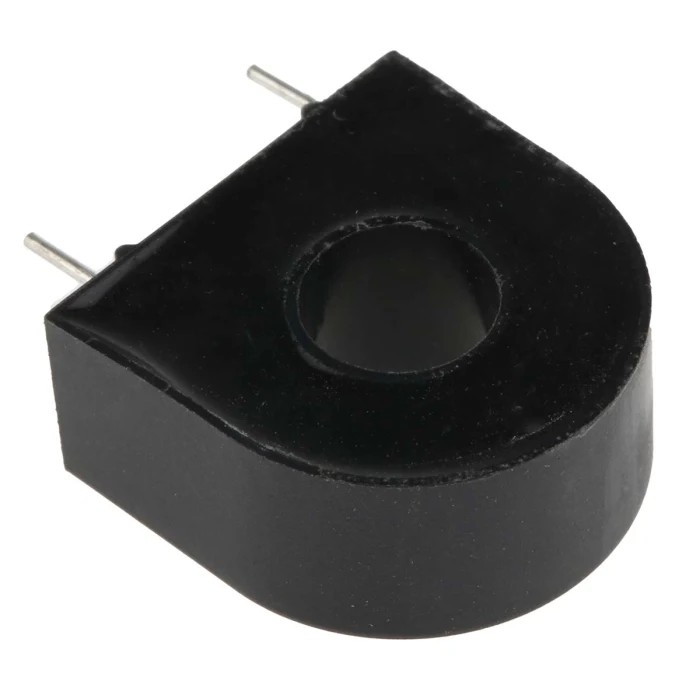

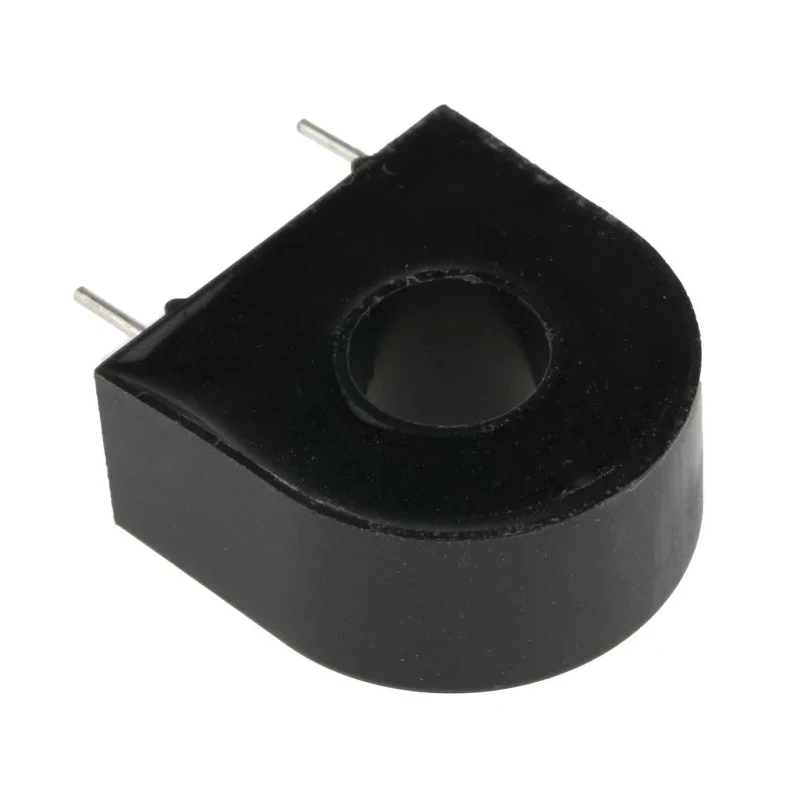

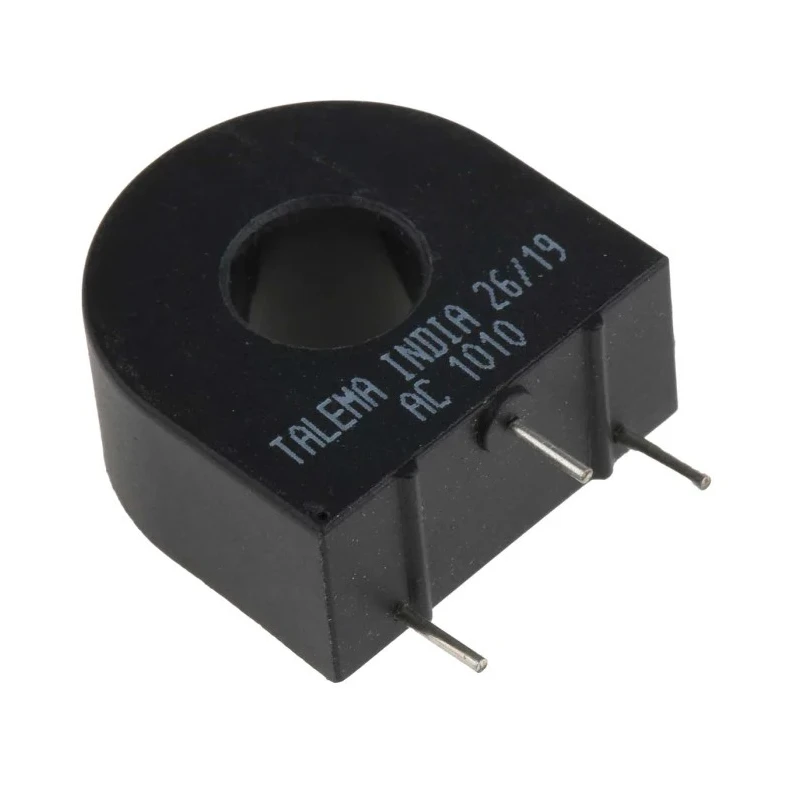

Nuvotem Talema Current Transformer AC-1 Series PCB Mount 10A Primary, 10mA Secondary, 1000:1 Turns Ratio AC-1010
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nuvotem Talema |
| Length | 23.8mm |
| Model | AC-1010 |
| Depth | 11.12mm |
| Width | 15.24mm |
| Mount Type | PCB |
| Series | AC-1 |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Secondary current | 10mA |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Primary Current | 10A |
| Turns Ratio | 1000:1 |
| 1000 | 1 |
| Turns Ratio 1000 | 1 |
| Nuvotem Talema AC-1 Series Current Transformer 10 A 1000 | 1 |
| Nuvotem Talema AC-1 Series Current Transformer 5 A 1000 | 1Brand: Nuvotem Talema |
| Standards/Approvals REACH, ISO 9001 | 2015, UL94V-0, ISO 14001:2015, RoHS |
| RS PRO Current Transformer, 10 → 60A InputBrand | RS PRO |
| PCB Current Transformer 10A 50/60HzBrand | Alttec |
Key Features
- Features a primary current rating of 10A with a 10mA secondary current output.
- Compact dimensions measuring 23.8 x 15.24 x 11.12 mm for easy PCB integration.
- Operates reliably in temperatures ranging from -40°C to 120°C.
- Ideally suited for sensing overload currents, ground fault detection, metering, and analog to digital circuit applications.
- Termination via PC pins allows secure mounting on printed circuit boards.
- AC frequency operation supports 50/60Hz applications with DC resistance of 41.8 ohms.
- Manufactured to deliver high quality with extremely competitive pricing.
Product Description
Nuvotem Talema AC-1010 Current Transformer from the AC-1 Series is a precision PCB mount transformer. This model features a primary current rating of 10A with a secondary current of 10mA, providing a high turns ratio of 1000:1 for accurate sensing in electrical applications.
Its compact size (23.8 mm length, 15.24 mm width, 11.12 mm depth) makes it highly suitable for integration onto printed circuit boards. The device is designed to operate efficiently across a wide temperature range from -40°C to 120°C, ensuring reliable performance under harsh industrial conditions.
The AC-1010 complies with several industrial standards including REACH, ISO 9001:2015, UL94V-0 flame retardance, ISO 14001:2015 environmental management, and RoHS, attesting to its quality and environmental compliance. With a DC resistance of 41.8 ohms and designed for operation at standard AC frequencies of 50/60Hz, it supports precise current measurement and protection applications.
This current transformer is suitable for a variety of industrial uses such as sensing overload currents, ground fault detection, electrical metering, and signal conversion in analog to digital circuits. Its PC pin mount type allows for secure and reliable attachment on PCBs commonly used in industrial automation and control systems.
Primary current of 10A and secondary current of 10mA ensure high precision measurement. Accurate turns ratio of 1000:1 for effective current sensing applications. Wide operating temperature range (-40°C to 120°C) enhances durability.
Compliance with multiple international standards ensures reliability and safety. Compact dimensions facilitate seamless PCB mounting in complex systems. Suitable for industrial automation, process control, and metering applications.
Low DC resistance improves efficiency and reduces energy losses.
This Nuvotem Talema current transformer is an excellent choice for electronics engineers and industrial users seeking a compact, reliable, and compliant sensor solution. Browse our Electronics & Electricals and Automation & Control Gear categories for complementary products and accessories.
Explore more products in our Electrical, Automation & Cables category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this model is 10A.
The secondary current output is 10mA.
It has a turns ratio of 1000:1, allowing for accurate current sensing.
The compact dimensions are 23.8 mm in length, 15.24 mm in width, and 11.12 mm in depth.
It operates reliably in temperatures ranging from -40°C to 120°C.
This model features a PCB mount type for secure attachment on printed circuit boards.
It supports operation at standard AC frequencies of 50/60Hz.
The DC resistance is 41.8 ohms.
It complies with REACH, ISO 9001:2015, UL94V-0, ISO 14001:2015, and RoHS standards.
It is suitable for sensing overload currents, ground fault detection, electrical metering, and analog to digital circuit applications.
The country of origin is India.
The 1000:1 turns ratio allows for effective current measurement and sensing in various applications.
