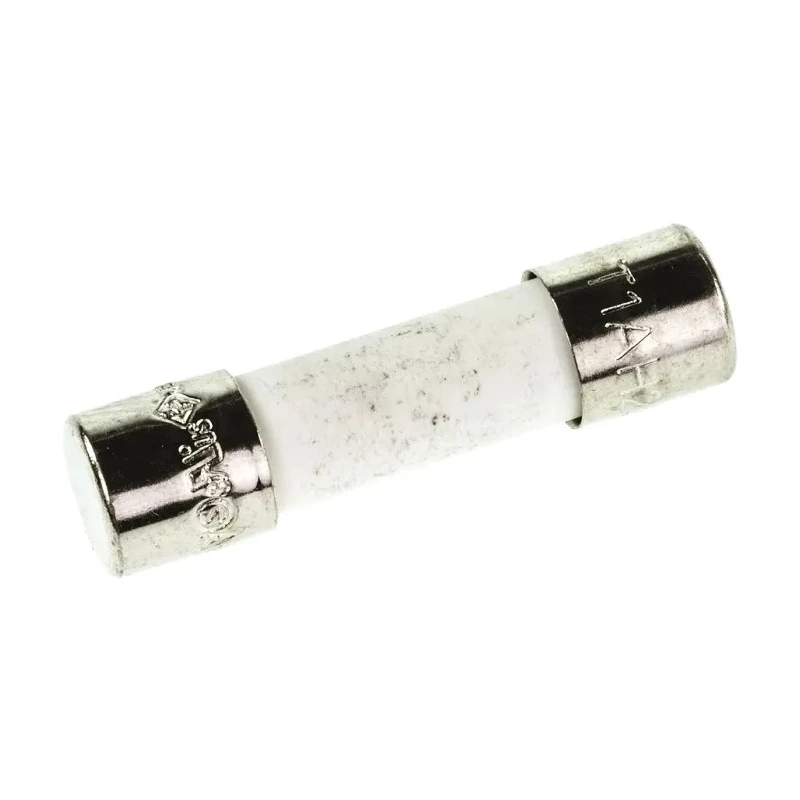

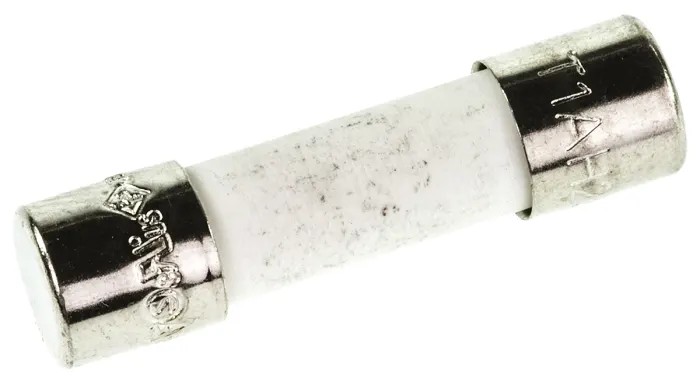

Eaton Ceramic Cartridge Fuse 1A Time Delay, 5 x 20 mm, 250V AC S505-1-R

Eaton S505-1-R ceramic cartridge fuse is a 1A time delay fuse designed to operate at 250V AC with a robust ceramic body measuring 5 x 20 mm in size. It is engineered to protect electrical circuits and equipment from costly damage caused by overcurrents.

This fuse features time delay (T) characteristics allowing it to tolerate short surges of high current, preventing nuisance blowing and providing reliable protection in applications where transient currents occur.

The fuse complies with international safety and quality standards, including BSI, CCC, CSA, IMQ, KC, PSE, SEMKO, and VDE, ensuring suitability for industrial, commercial, and automation environments.

With an operating temperature range from -55°C to 125°C, this ceramic fuse can perform reliably in diverse temperature conditions.

Its compact size of 5 x 20 mm with a 20 mm overall length and 5.2 mm diameter fits standard fuse holders, making it an excellent choice for panel and board protection in electrical and automation systems.

The Eaton Bussmann series anti-surge ceramic cartridge fuse prevents equipment damage by breaking the circuit when current exceeds the rated 1A, contributing to system safety and longevity.

The ceramic body structure provides enhanced capacity for handling higher currents compared to glass fuses. Time delay rating avoids immediate fuse blow under transient current conditions. Broad compliance with global standards supports wide industrial use.

Compact form factor suits many panel and board applications. Reliable overcurrent protection enhances equipment safety. Applicable in electrical, automation, and control systems. Manufactured with quality materials ensuring durability.

Designed for 250V AC system voltage use. Explore the Eaton brand and similar Cartridge Fuses within EnvMart’s electronics and electricals category for trusted circuit protection solutions.
