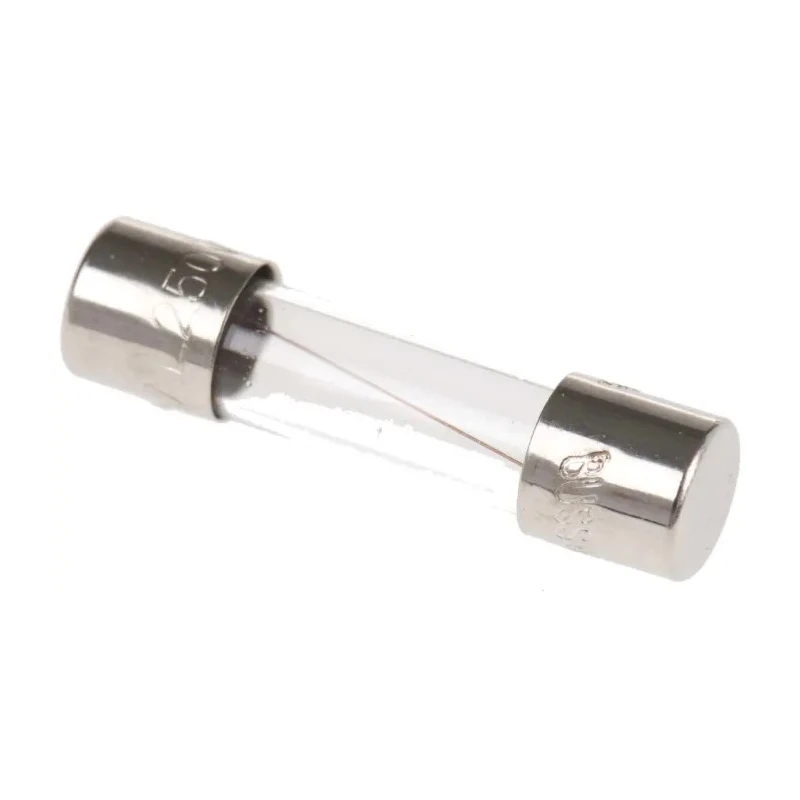

Eaton 800mA T Glass Cartridge Fuse, 5 x 20 mm, Time Delay, 250V AC S506-800-R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Glass |
| Model | S506-800-R |
| Overall Length | 20mm |
| Current Rating | 800mA |
| Series | S506 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | VDE, UL, SEMKO, IMQ, CSA, CCC, BSI |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| Application Category | Time Delay |
| Cooper Bussmann Cartridge FuseBrand | Cooper Bussmann |
| RS PRO 800mA T Glass Cartridge Fuse, 5 x 20 mmBrand | RS PRO |
Key Features
- Time-delay allows safe passage of short inrush currents without fuse blowing.
- Rated for continuous current of 800mA and 250V AC voltage.
- Glass body allows visual inspection of fuse element condition.
- Operates reliably between -40°C and +125°C ambient temperatures.
- Suitable for motor control electronics and automation system protection.
- Recognized by multiple international safety standards including VDE, UL, SEMKO, and CSA.
- Compact size of 5 x 20 mm with overall length of 20mm and diameter of 5mm.
- Designed to protect control panels and power supplies with high start-up currents effectively.
Product Description
Eaton S506-800-R 800mA T Glass Cartridge Fuse, 5 x 20 mm, is a time-delay fuse designed for overcurrent protection in electronic and electrical systems. Rated for 800mA continuous current and 250V AC voltage, this glass-bodied fuse allows for visual inspection of the filament, facilitating rapid fault diagnosis without dismantling.
This fuse is built to tolerate brief inrush currents typical during motor start-up or power supply activation, preventing nuisance blowing while ensuring circuit protection against sustained overloads. Its operating temperature range from -40°C to +125°C suits demanding industrial and automation environments.
The 5 x 20 mm size, with an overall length of 20mm and diameter of 5mm, makes it ideal for compact control panels and industrial instrumentation. Eaton's S506 series carry multiple recognized international approvals including VDE, UL, SEMKO, IMQ, CSA, CCC, and BSI. This broad certification supports its integration in certified electrical equipment.
Applications include safeguarding motor control electronics, consumer electronics assemblies in production, power supplies with high start-up currents, and industrial instrumentation. The glass construction also aids maintenance by enabling easy visual verification of fuse status.
Time-delay characteristic enables harmless surge tolerance. Continuous current rating of 800mA at 250V AC. Visual inspection afforded by the glass body construction. Wide temperature range from -40°C to +125°C for robust environment operation.
Certified by major international safety organizations. Compact 5 x 20 mm fuse size suited for industrial electronics. Designed to protect automation system control panels effectively.
This Eaton fuse from the S506 series offers reliable performance in industrial, laboratory, and commercial electrical protection applications. It ensures system integrity and safety while facilitating maintenance and compliance with international standards. Explore the Electronics & Electricals category at EnvMart for compatible fuse holders and circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a continuous current rating of 800mA.
It is rated for 250V AC voltage.
The fuse has a size of 5 x 20 mm, with an overall length of 20mm and a diameter of 5mm.
It operates reliably between -40°C and +125°C.
The fuse is constructed with a glass body, allowing for visual inspection of the fuse element condition.
This fuse features a time-delay characteristic, which allows safe passage of short inrush currents without blowing.
It is recognized by multiple international safety standards including VDE, UL, SEMKO, IMQ, CSA, CCC, and BSI.
It is suitable for protecting motor control electronics, power supplies with high start-up currents, and industrial instrumentation.
The glass body allows for easy visual verification of the fuse status, facilitating rapid fault diagnosis without dismantling.
The time-delay feature enables the fuse to tolerate harmless surge currents, preventing nuisance blowing during brief inrush conditions.
The country of origin for this fuse is China.
The overall length of this fuse is 20mm.
