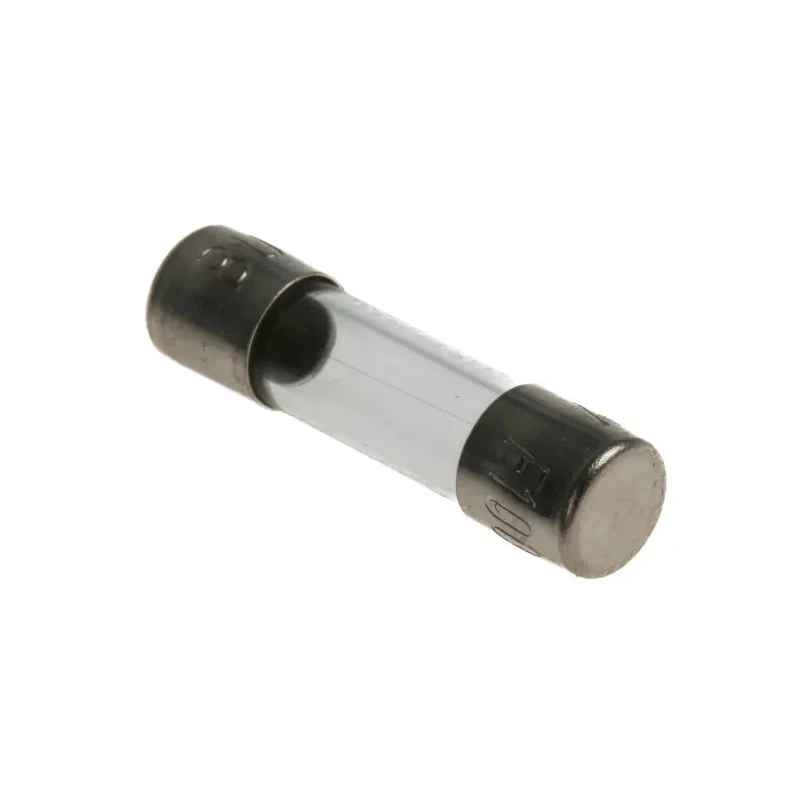

Eaton Fast Acting Glass Cartridge Fuse 100mA 250V AC 5 x 20 mm S500-100-R

Eaton S500-100-R is a fast acting glass cartridge fuse rated at 100mA and 250 volts AC, designed to protect electrical circuits from overcurrent and short circuits. The fuse features a transparent glass body that allows easy visual inspection of the fuse element, facilitating quick fault detection.

This fuse has a standard 5 x 20 mm size, with an overall length of 20 mm and a diameter of 5 mm, making it compatible with a broad range of fuse holders used in industrial, commercial, and household electrical applications.

The fast acting (F) characteristic enables the fuse to respond rapidly to overload conditions, thereby protecting sensitive components and preventing wiring damage. It complies with international standards including IEC and RoHS and carries approvals such as cURus, ensuring safety and reliability.

The S500 series Low Breaking Capacity (LBC) fuses are suitable for circuits with limited fault current and are typically used in control panels, automation systems, and electrical devices requiring reliable protection against short circuits and overloads.

Cartridge fuses like this one are essential in isolating faulty sub-systems to protect equipment and personnel, reducing downtime and maintenance costs. Designed with a glass body for visual fuse condition monitoring. Standard fuse size of 5 x 20 mm suitable for various fuse holders.

Rated voltage of 250 volts AC ensuring effective performance in AC systems. Fast acting (F) fuse speed protects cabling and components from overloads promptly. Complies with IEC standards and RoHS directives for quality and safety.

Low breaking capacity (LBC) suitable for applications with limited fault current. Compact 20 mm overall length and 5 mm diameter for panel and board protection. Widely used in electrical and automation equipment for reliable circuit protection.
