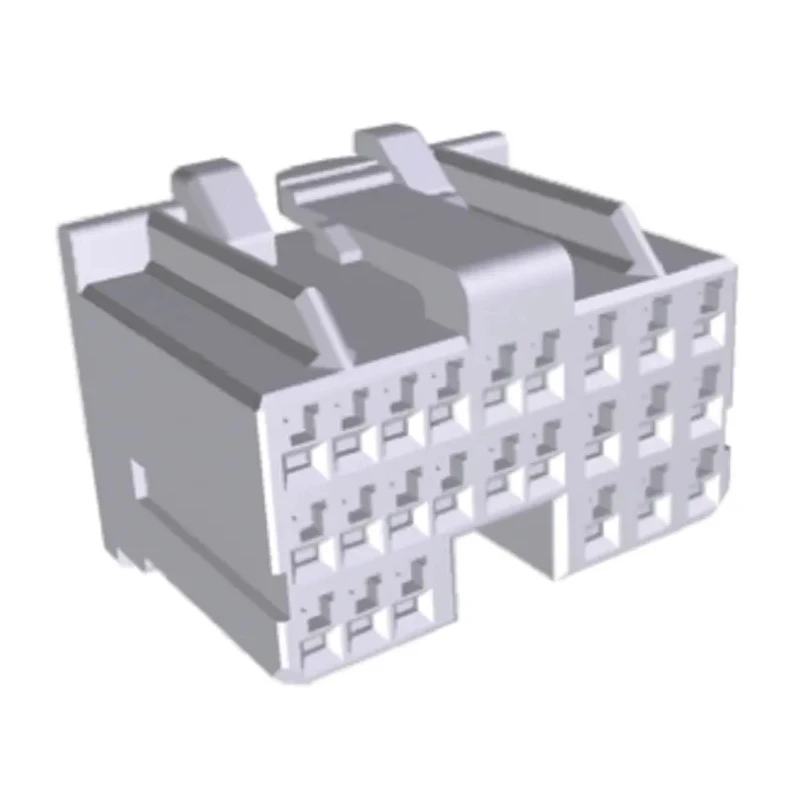

TE Connectivity MULTILOCK 040 II Male Connector Housing 2.5 mm Pitch 24 Way 3 Row Straight 316371-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 27.5mm |
| Model | 316371-1 |
| Width | 21.7mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 040 II |
| Number of Rows | 3 |
| Pitch | 2.5mm |
| For Use With | II MULTILOCK Connector |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-0910PBrand: TE ConnectivityManufacturers Part No.: 316371-1 |
| Number of Contacts | 24 |
| Connector Gender | Male |
Key Features
- Compact design with high density 2.5 mm contact centres.
- Durable housing made from Polybutylene Terephthalate material.
- Integral double locking system ensures contact retention.
- Pin protection feature prevents rocking action during mating and un-mating.
- Designed mainly for automotive systems including powertrain and safety applications.
- Suitable for general-purpose applications such as convenience, driver information, and chassis systems.
- Supports wire-to-wire and wire-to-board configurations.
- Provides snap-in crimp contacts for cable receptacles and board mounting options pre-loaded with contacts.
Product Description
TE Connectivity 316371-1 MULTILOCK 040 II Male Connector Housing is engineered for automotive and general electronic applications requiring reliable, compact, and durable connector solutions. Featuring a 2.5 mm pitch and 24 contacts arranged in 3 rows, this straight cable mount connector offers high density within a compact form factor. Its Polybutylene Terephthalate housing provides high durability and resistance suitable for harsh environmental conditions.
The connector's design incorporates a double locking mechanism to secure contacts firmly and prevent disengagement during operation. Pin protection prevents rocking action while mating or un-mating, enhancing connection stability and longevity. The MULTILOCK 040 series is widely used in automotive powertrain systems, safety and security modules, convenience electronics such as air conditioning and radios, driver information units, and body & chassis electrical systems.
This connector supports versatile configurations with snap-in crimp contacts for cable receptacles and board mounting options with pre-loaded male contacts for wire-to-board interface. The cable cap and plug pairs ensure firm wire-to-wire connections. This makes the 316371-1 model suitable for complex automotive wiring harnesses and electronic system integrations.
Besides automotive applications, the MULTILOCK 040 II series is adaptable to various industrial, manufacturing, and commercial electrical systems demanding compact and dependable connections with high contact density and secure locking features.
Compact and highly durable connector housing. High density 2.5 mm pitch for space-efficient wiring. Pin protection against rocking action improves reliability. Integral double locking system secures contacts firmly. Supports automotive and general-purpose electronic applications.
Enables wire-to-wire and wire-to-board configurations. Polybutylene Terephthalate housing material offers robust performance. Straight orientation for cable mounting. 24 way, 3 row contact arrangement for complex wiring needs.
For engineers and buyers seeking reliable automotive connectors with high compactness and durable construction, the TE Connectivity MULTILOCK 040 II Male Connector Housing 316371-1 is a premium choice. Explore our comprehensive category of Connector Housings for more TE Connectivity products and advanced electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing features a 2.5 mm pitch and has 24 contacts arranged in 3 rows.
The housing is made from Polybutylene Terephthalate, which provides high durability and resistance suitable for harsh environmental conditions.
This model has a straight orientation for cable mounting.
It is designed mainly for automotive systems, including powertrain and safety applications, as well as general-purpose applications such as convenience and driver information systems.
The integral double locking system secures contacts firmly and prevents disengagement during operation, enhancing connection stability.
The connector housing has a length of 27.5 mm and a width of 21.7 mm.
It supports wire-to-wire and wire-to-board configurations, with snap-in crimp contacts for cable receptacles and board mounting options.
Yes, besides automotive applications, it is adaptable to various industrial, manufacturing, and commercial electrical systems that require compact and dependable connections.
The country of origin for this connector housing is India.
The model number of this connector housing is 316371-1.
The mount type for this connector is cable mount.
The pin protection feature prevents rocking action during mating and un-mating, which enhances connection reliability and longevity.
