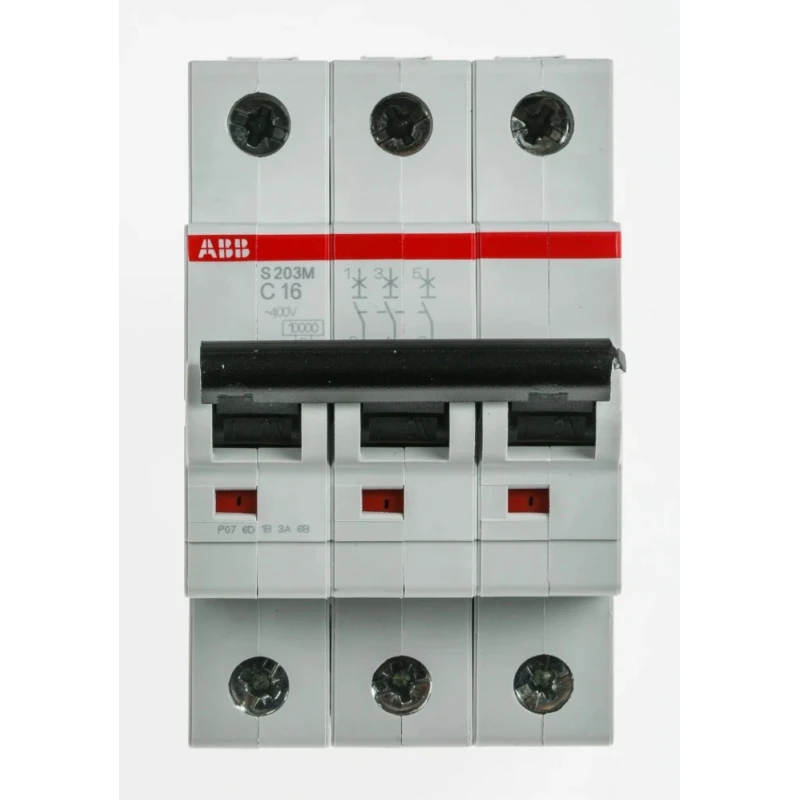

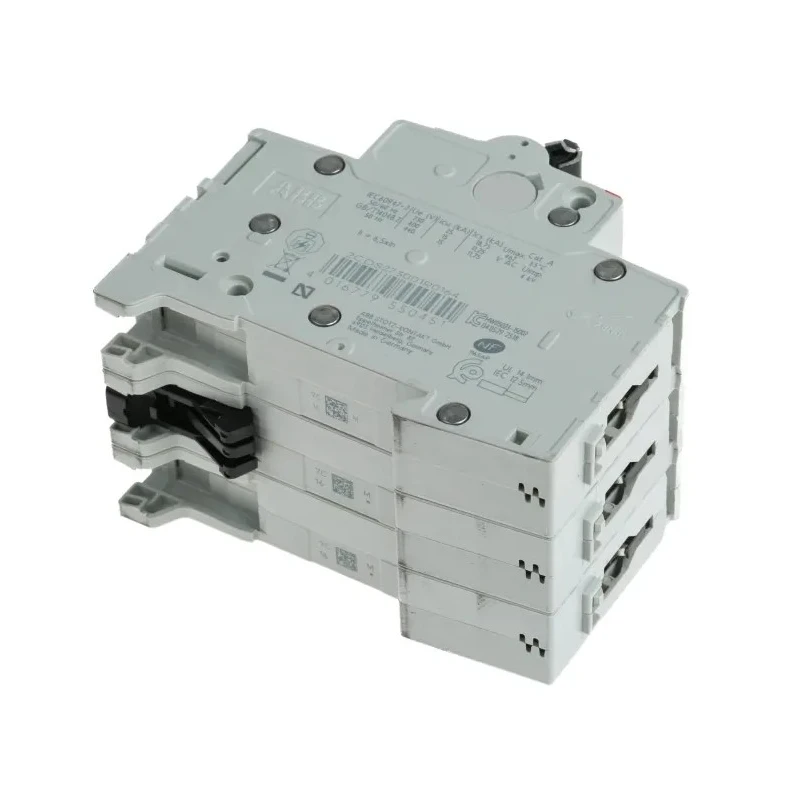

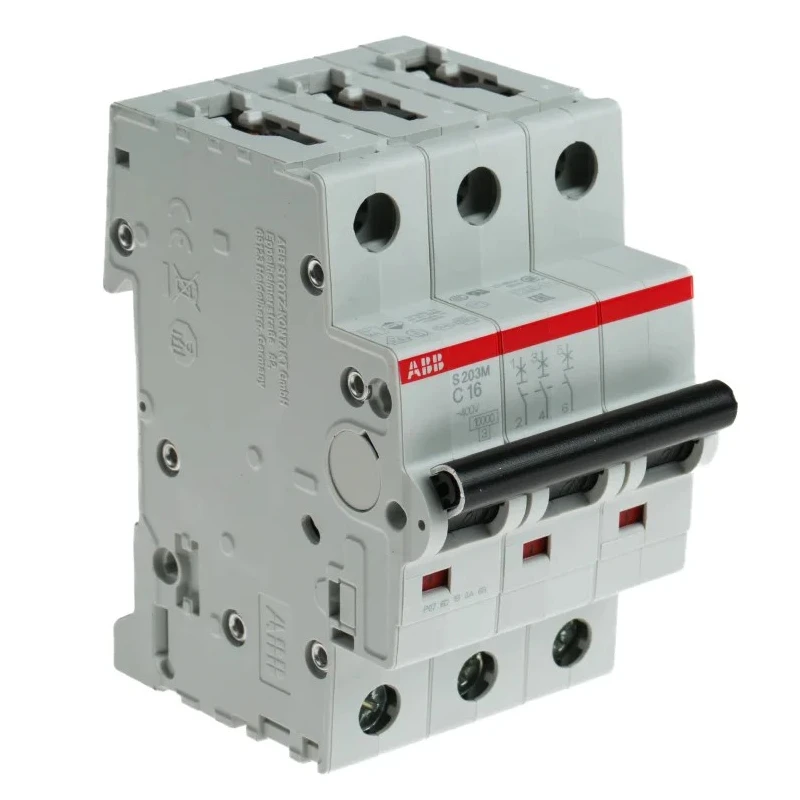

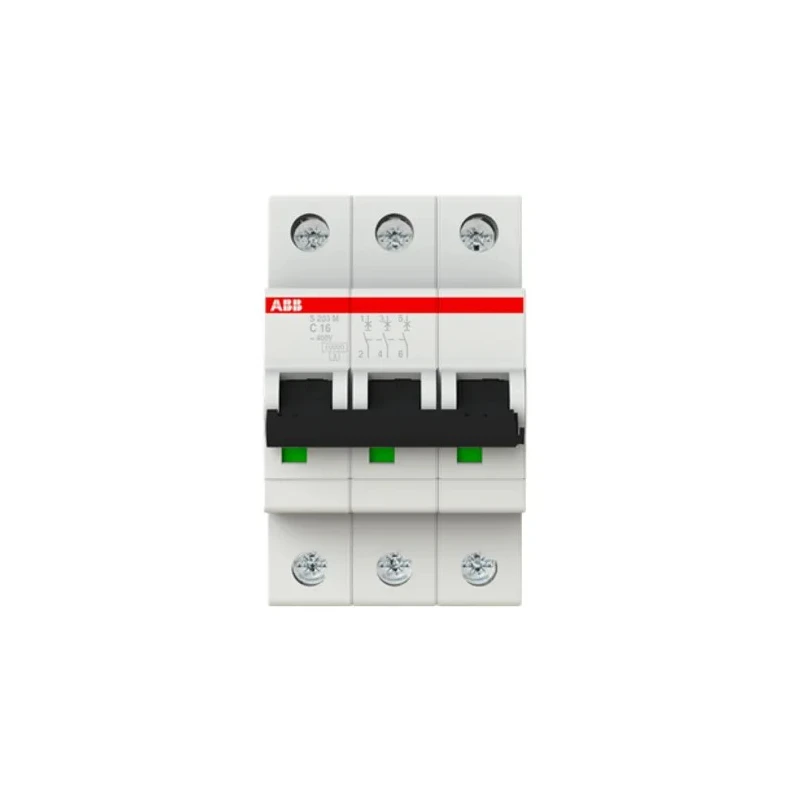

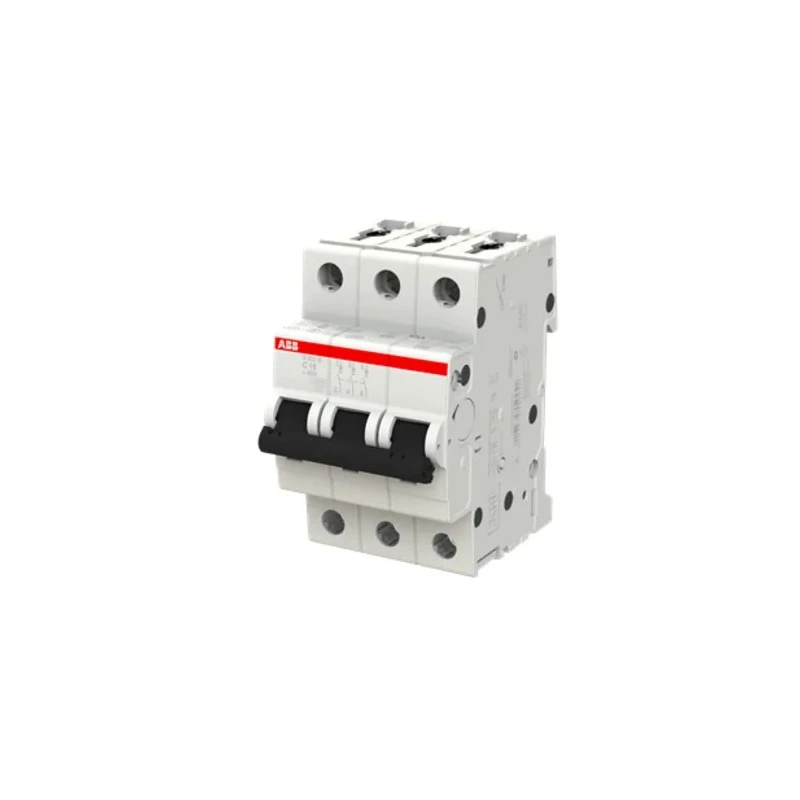

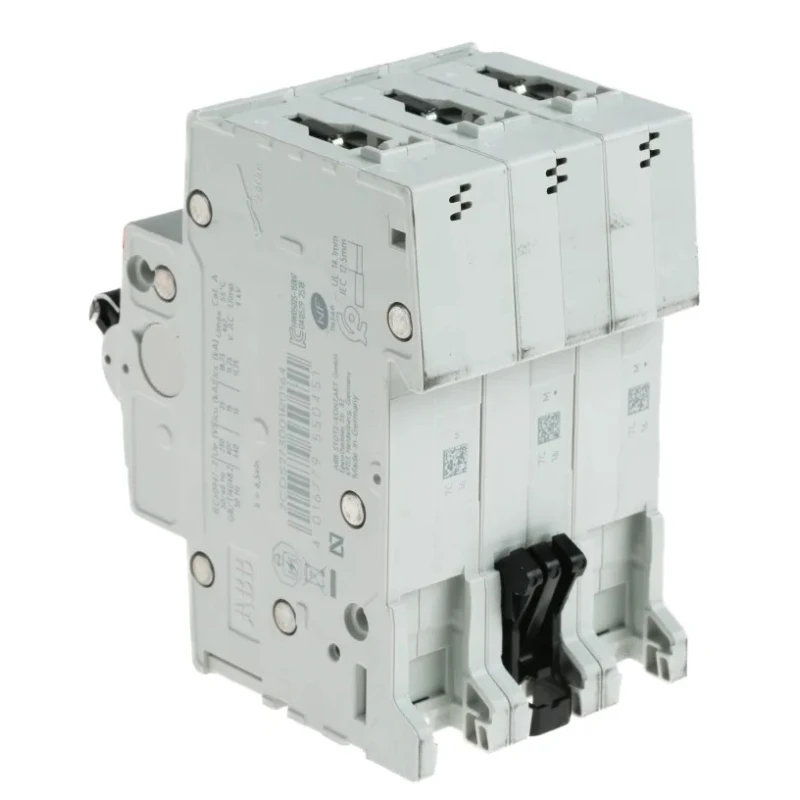

ABB System Pro M Compact S200M Miniature Circuit Breaker, 3-Pole, 16A, Type C, 440V AC, 12V DC, 10 2CDS273001R0164 S203M-C16

ABB 2CDS273001R0164 S203M-C16 Miniature Circuit Breaker from the System Pro M Compact S200M series is designed to provide robust electrical protection in industrial and commercial installations. This 3-pole MCB features a 16 ampere current rating and Type C tripping characteristic, suitable for protecting circuits that experience moderate inrush currents commonly found in industrial machinery and electrical panels.

It operates efficiently at rated voltages of 440V AC and 12V DC, with a breaking capacity of 10 kA, ensuring interruption of short circuits and overloads to prevent damage to downstream equipment and wiring. The device mounts easily on DIN rails and uses screw terminals offering a secure and reliable electrical connection. Its thermal tripping mechanism allows for protection against prolonged overloads by detecting excess current and disengaging the circuit.

The MCB provides finger-safe terminals (IP20 rating) to minimize the risk of accidental electric shocks during installation or maintenance. Constructed according to IEC/EN 60947-2 and IEC/EN 60898-1 standards, the device guarantees international compliance for safety and performance. It is built to withstand electrical endurance of 20,000 cycles and resist shock and vibration, reducing false trips and extending operational life.

With compact dimensions (88mm height, 52.5mm width, 69mm depth), it fits efficiently into electrical enclosures where space optimization is required. The broad operating temperature range from -25°C to +55°C permits reliable functioning in diverse environmental conditions.

This ABB Miniature Circuit Breaker is ideal for use in manufacturing industries, information technology systems, healthcare facilities, and construction sites to ensure safety and continuous operation of electrical installations.

Designed for 440V AC and 12V DC operation. Type C tripping characteristic for heavy-duty electrical loads. DIN rail mounting facilitates fast and tool-free installation. Thermal tripping mechanism prevents overload damage.

Finger-safe terminals with IP20 rating enhance user safety. Complies with IEC/EN international standards for circuit breakers. Robust construction for electrical endurance up to 20,000 cycles. Compact and space-saving design.
