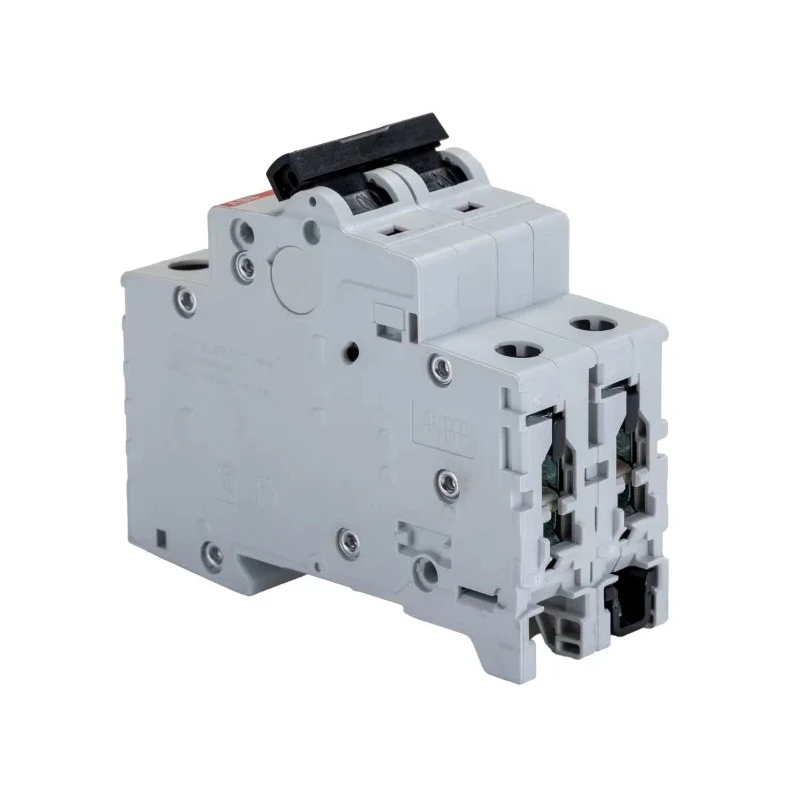

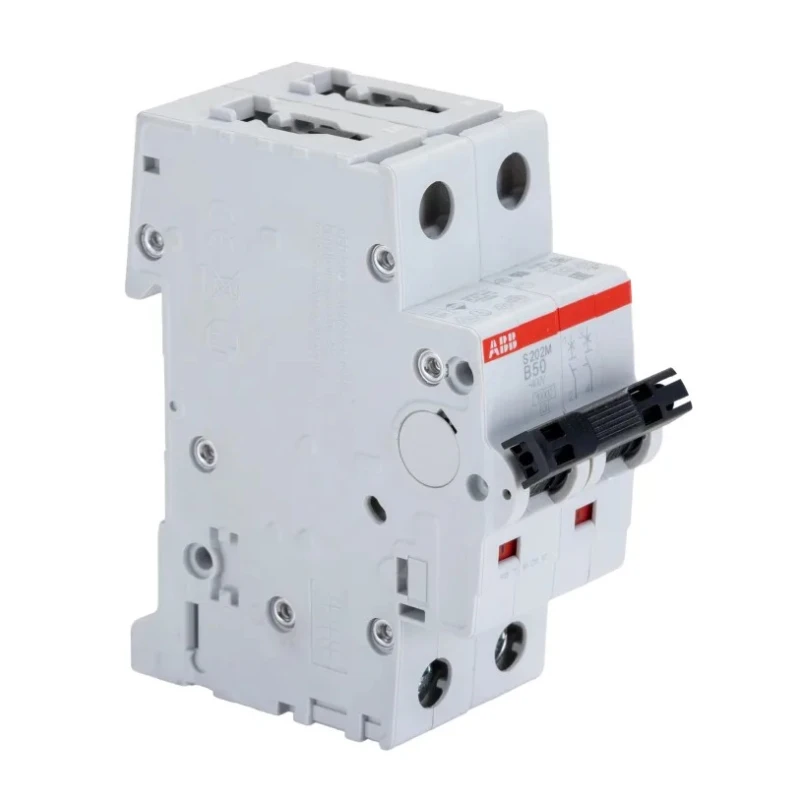

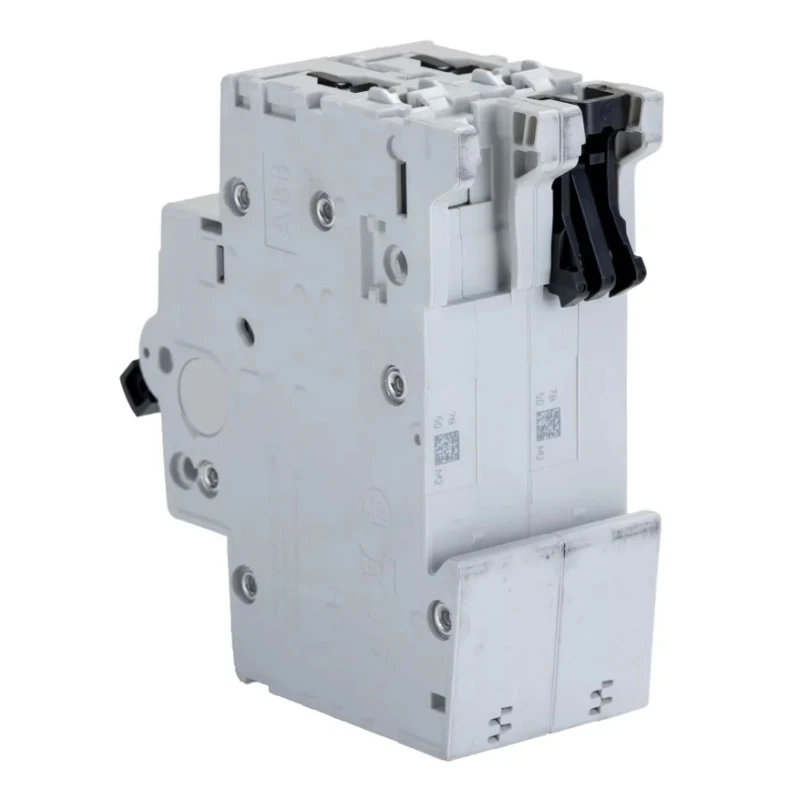

ABB System Pro M Compact S200M Miniature Circuit Breaker, 2-Pole, 50A, Type B, 440V AC, 125V DC 2CDS272001R0505 S202M-B50

ABB 2CDS272001R0505 S202M-B50 System Pro M Compact S200M Miniature Circuit Breaker is a high-quality electrical protective device with a 2-pole configuration rated for 50 amps. Designed for both residential and small industrial electrical applications, this MCB offers reliable protection against overloads and short circuits with its Type B tripping mechanism suitable for general-purpose lighting and power circuits.

This Miniature Circuit Breaker supports AC voltages up to 440V and DC voltages up to 125V, making it versatile for a wide range of electrical installations. It features a robust breaking capacity of 10kA, ensuring safe interruption of fault currents and minimizing damage to electrical installations.

The device is built for easy DIN rail mounting, allowing quick and secure integration into electrical panels. Its compact dimensions (35mm width, 88mm height, and 76mm depth) enable efficient use of panel space. The toggle switch actuator allows for simple manual reset after tripping events, while cage terminals provide secure and reliable wiring connections.

This ABB MCB complies with international standards IEC/EN 60898-1 and IEC/EN 60947-2, guaranteeing high safety and performance levels. Its electromagnetic and thermomagnetic tripping mechanisms offer enhanced protection and durability.

Typical uses include residential electrical panels, commercial distribution boards, and small industrial control panels for equipment such as pumps and small motors. Its IP20 and IP40 ratings protect against intrusion of solids and limited water exposure.

Compact 2-pole MCB designed for efficient electrical system protection. Rated current of 50A with Type B tripping characteristics for accurate overload response. Supports both 440V AC and 125V DC applications. High breaking capacity of 10kA for effective fault current interruption.

DIN rail mountable design for quick and secure installation. Equipped with toggle switch reset actuator for easy manual operation. Fitted with cage terminals to ensure safe and secure wiring connections. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 safety standards.

IP20 and IP40 rated for protection against solid objects and limited ingress of water. Compact dimensions optimize installation space in electrical panels. Explore the range of ABB electrical protection devices and MCBs at EnvMart for reliable circuit safeguarding solutions.
