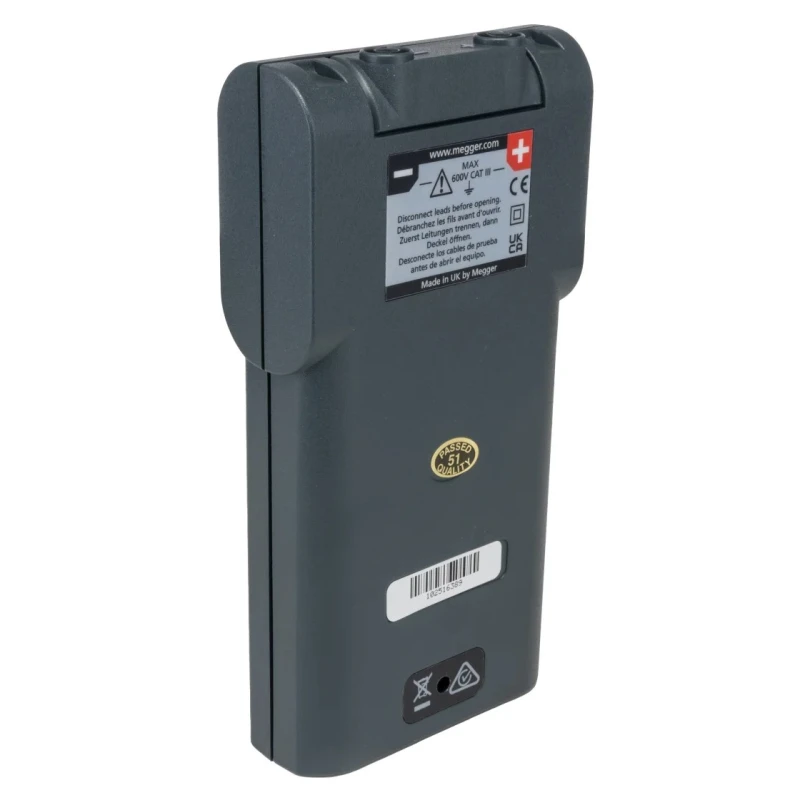

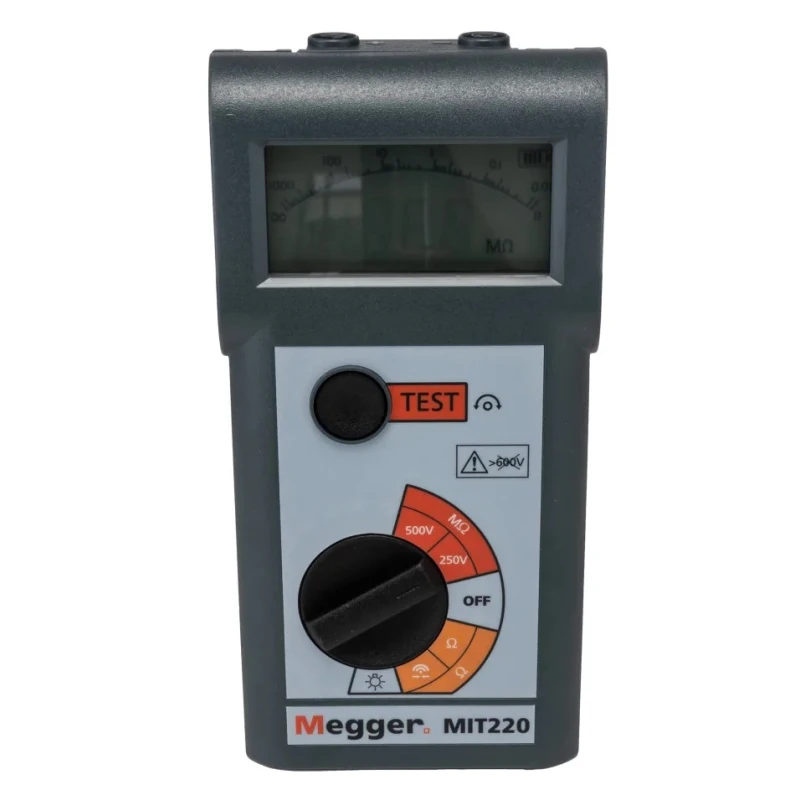

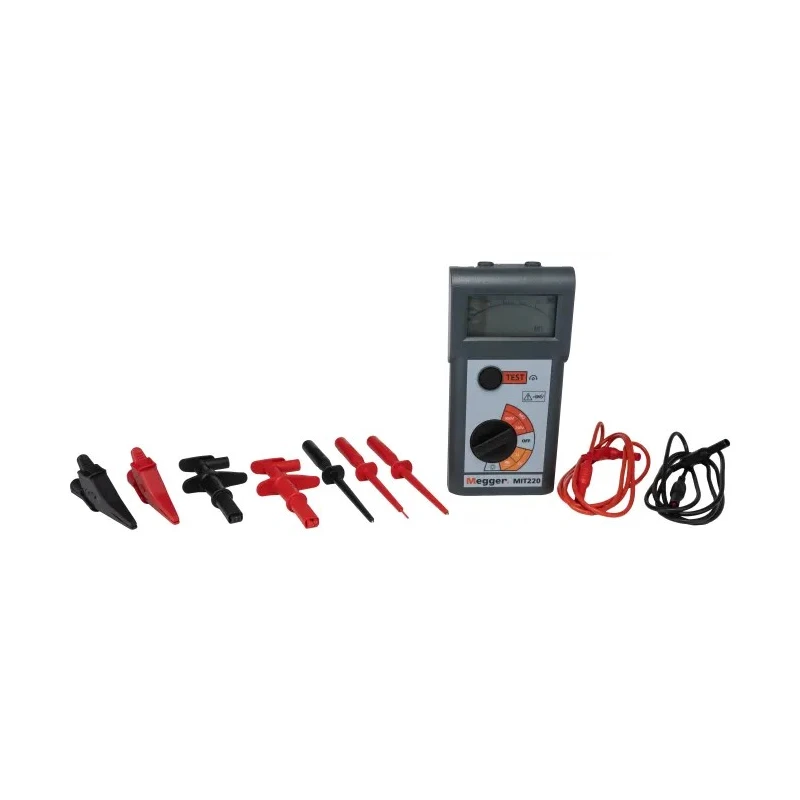

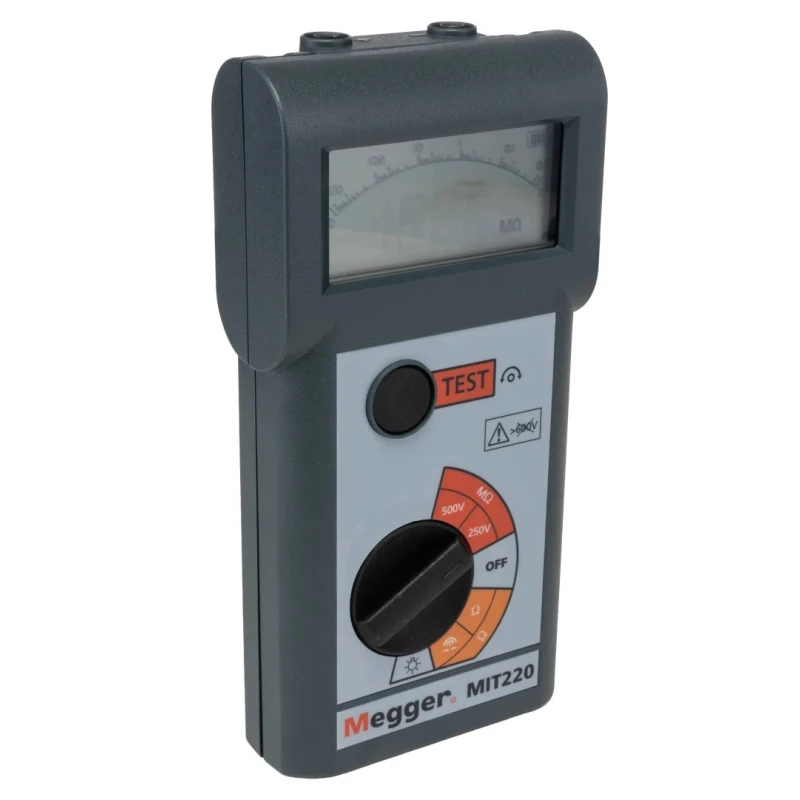

Megger Insulation & Continuity Tester, 250 V Minimum Test Voltage, 500 V Maximum Test Voltage, CAT III 300 V Safety MIT220

Megger MIT220 Insulation & Continuity Tester, model MIT220, is a highly reliable testing instrument designed for industrial and electrical safety testing. It operates with a minimum test voltage of 250 V and maximum test voltage of 500 V, producing accurate insulation resistance measurements up to 999 MΩ. The device is CAT III rated at 300 V, providing the necessary safety standards for electrical testing environments.

This tester is equipped with a clear LCD display for easy reading of insulation and continuity values, coupled with an analogue meter for dual readings that confirm results and track variations. It delivers a test current of 200mA, ensuring dependable insulation accuracy within ±30% at 1000MΩ.

The instrument operates reliably within a temperature range of -10°C to 55°C and is powered by AA batteries, offering up to 3000 consecutive tests per battery set for extended field usage. The compact form factor measures 195mm in length, 98mm in width, and 40mm in height, weighing 530 grams for comfortable portability.

Key functional features include a continuity measurement range from 0.01Ω to 100Ω, and insulation resistance measurement capabilities between 10kΩ and 1000MΩ, suitable for a broad spectrum of electrical circuit assessments. The device incorporates auto power-down to conserve battery life and display notifications if the test fuse is ruptured.

Designed to meet IEC 61326-1 standards, the tester ensures compliance with electromagnetic and safety requirements. It is ideal for use in environments such as repair workshops, electrical engineering tasks, robotics, and packaging facilities.

The tester offers dual display with LCD and analogue meter readout. Test current of 200mA provides accurate insulation resistance testing. Operates safely under CAT III 300 V safety category standards. Wide insulation measurement range between 10kΩ and 1000MΩ.

Continuity measurement range supports 0.01Ω to 100Ω detection. Auto power-down feature extends battery life during inactivity. Battery life supports up to 3000 consecutive tests for field longevity. Compact, lightweight design enhances portability for on-site use.

Conforms to IEC 61326-1 for electromagnetic compatibility.

This Mit220 model from Megger is a dependable instrument suited for industrial, laboratory, HVAC, electrical maintenance, and safety verification tasks. Its precision measurement and safety certifications ensure compliant and practical usage. Discover more Insulation Testers and related electrical test equipment in the EnvMart catalogue to meet your professional testing needs.
