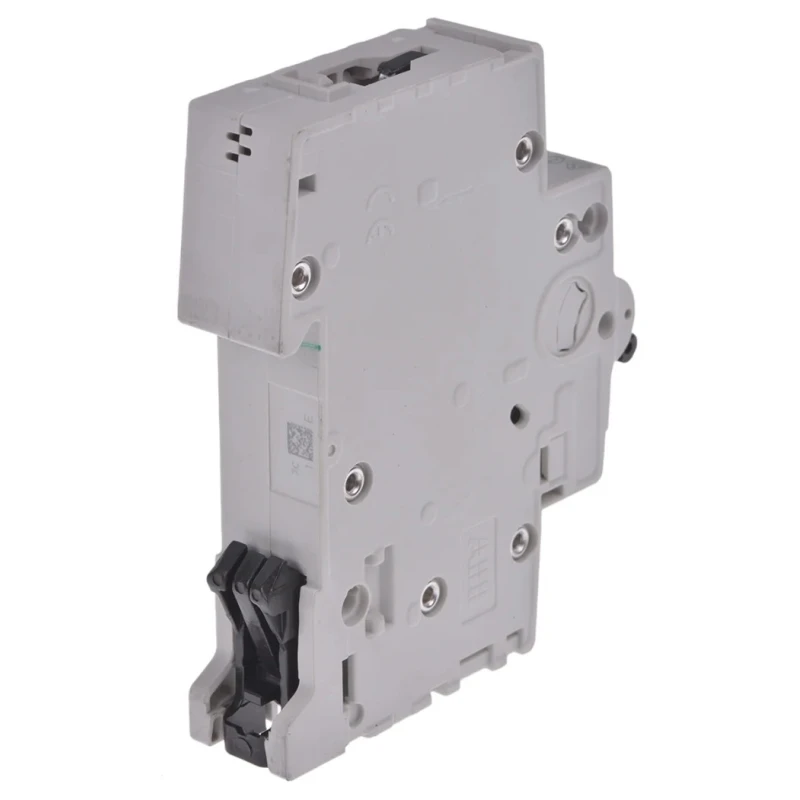

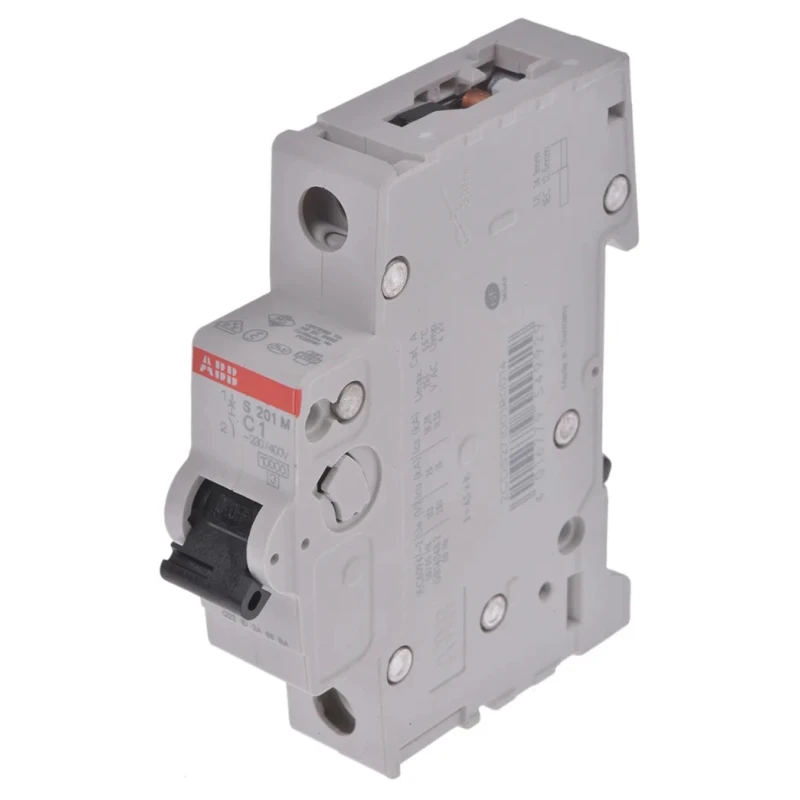

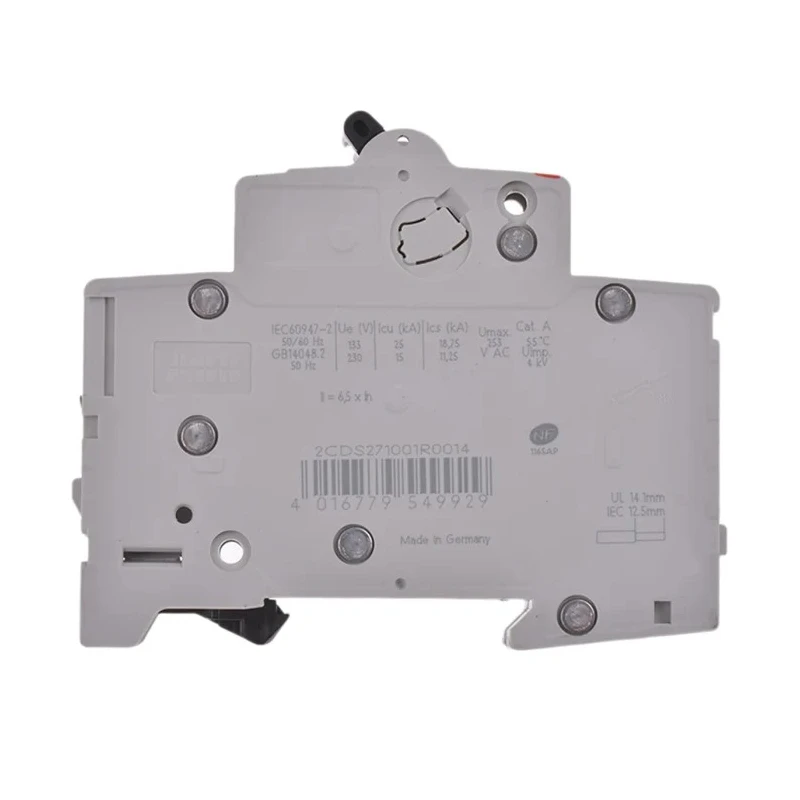

ABB Miniature Circuit Breaker System Pro M Compact 1-Pole 1A Type C 253V AC 72V DC 10kA Breaking 2CDS271001R0014 S201M-C1

ABB 2CDS271001R0014 S201M-C1 Miniature Circuit Breaker from the System Pro M Compact series provides precise and reliable circuit protection. With a current rating of 1A and Type C tripping characteristics, it effectively safeguards electrical circuits against overload and short circuits by tripping between 5 to 10 times the rated current, making it ideal for inductive loads commonly found in industrial environments.

This compact MCB is engineered for dependable performance with a breaking capacity of 10kA, ensuring it can withstand high fault currents. Its compact dimensions, 88mm height, 17.5mm width, and 69mm depth, allow efficient use of panel space. The device is designed for DIN rail mounting, enabling quick installation without additional tools.

The MCB features a toggle switch for easy resetting and a built-in contact indicator to monitor operational status effortlessly. It is equipped with a thermal tripping mechanism ideal for various industrial and commercial applications requiring reliable and consistent circuit protection.

Manufactured to the highest standards IEC/EN 60898-1 and IEC/EN 60947-2, and rated IP40 and IP20 for ingress protection, this ABB circuit breaker is suitable for use in power stations, data centers, marine engineering, and the oil and gas industry. Its mechanical endurance of 20,000 cycles highlights its longevity and robust performance under demanding conditions.

As a better world product designed for disassembly, it aligns with sustainable manufacturing practices. Originating from Germany, it exemplifies quality engineering and environmental consideration.

Designed for 1-pole configuration with a breaking capacity of 10kA. Operates at rated AC voltage of 253V and DC voltage of 72V. Equipped with a toggle switch for easy resetting. Compact size with dimensions 88mm height, 17.5mm width, and 69mm depth.

Features DIN rail mounting for quick and tool-free installation. Built-in contact indicator allows hassle-free status monitoring. Mechanical endurance of 20,000 cycles ensures long-term durability. Meets IEC/EN 60898-1 and IEC/EN 60947-2 standards for safety and quality.

IP40 and IP20 rated for protection against ingress. Thermal tripping mechanism suitable for industrial and commercial applications. Manufactured in Germany focusing on sustainable design and disassembly. Explore the ABB brand and System Pro M Compact range on EnvMart for high-quality circuit protection solutions designed to meet industrial and commercial electrical system demands.
