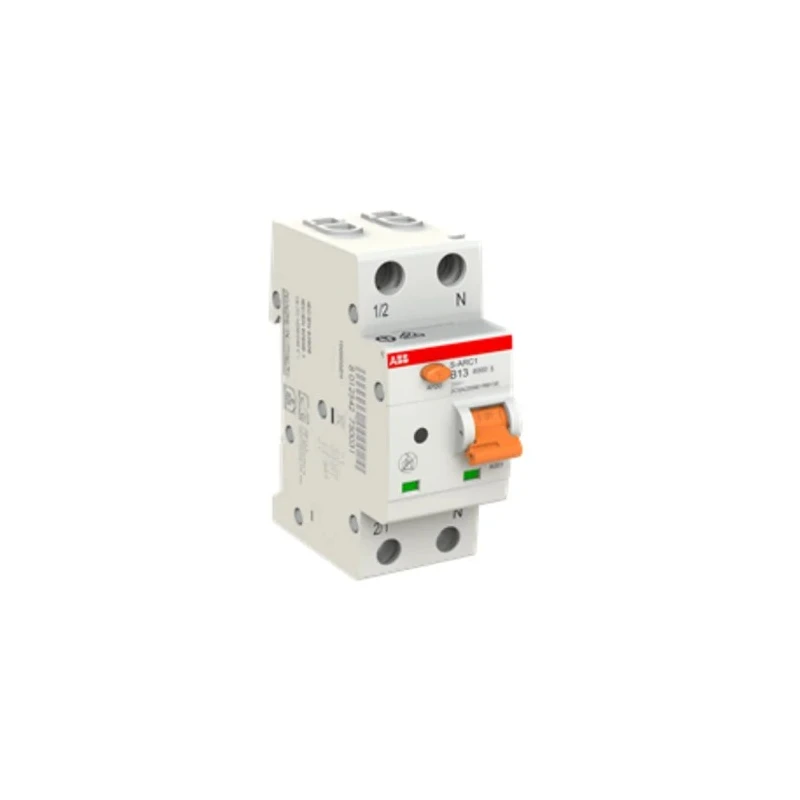

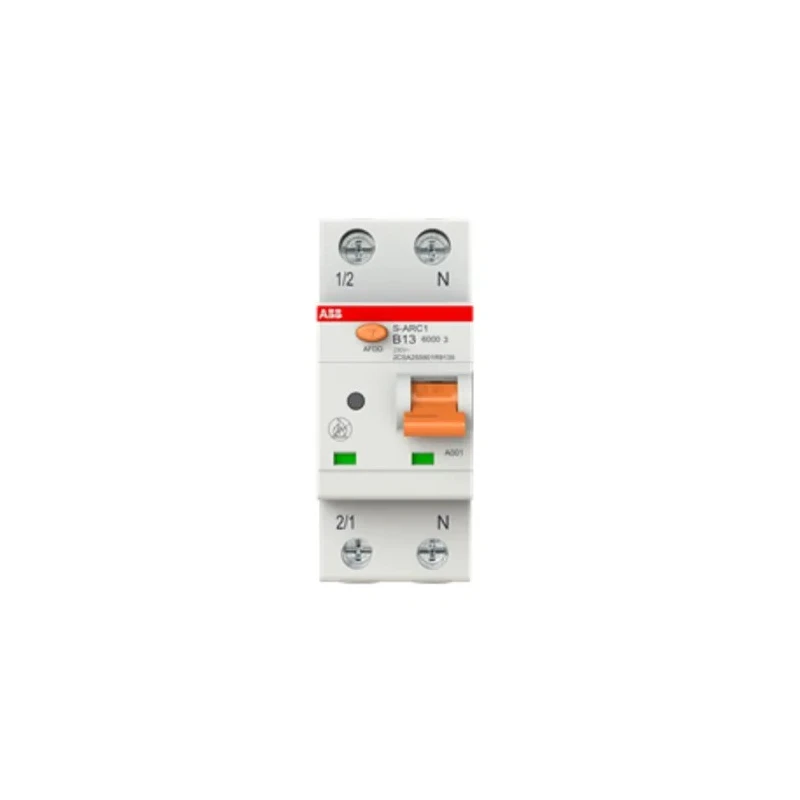

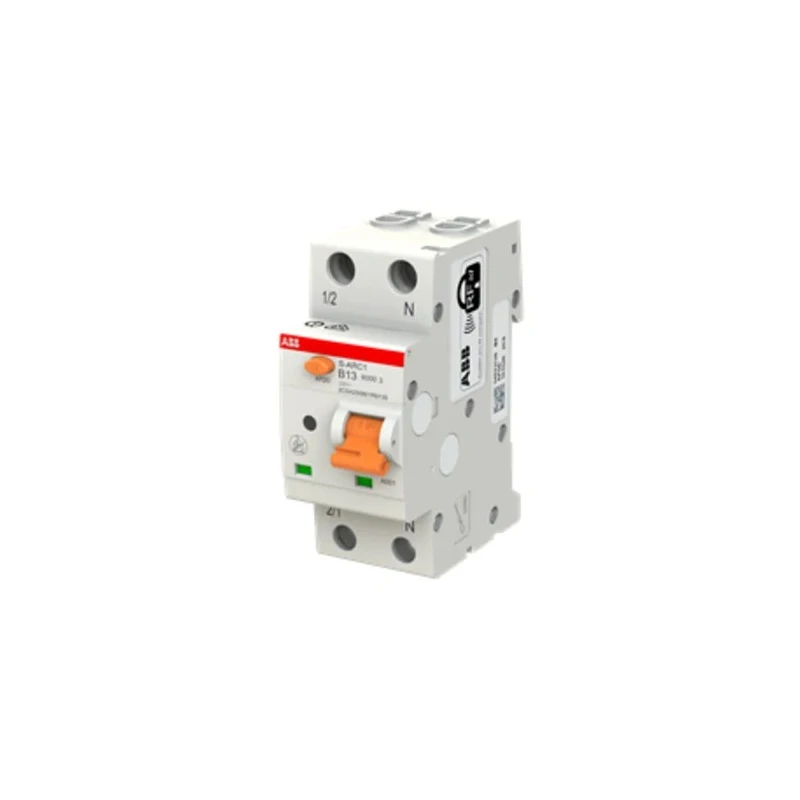

ABB Miniature Circuit Breaker, 1-Pole, 13A, Type B, 240V AC, 6 kA Breaking Capacity ARC1

Free Delivery in India | Lowest Global Shipping Charges

ABB Miniature Circuit Breaker, 1-Pole, 13A, Type B, 240V AC, 6 kA Breaking Capacity ARC1



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	S-ARC1
Brand	ABB
Height	85mm
Model	ARC1
Depth	69mm
IP Rating	IP20, IP40
Width	35mm
Mount Type	DIN Rail
Current Rating	13A
Series	S-ARC1
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1, IEC/EN 62606
Rated AC Voltage	240V ac
Tripping Characteristics	Type B
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch

Key Features

Compact 1-pole design suitable for residential and light commercial applications.
Rated current of 13 amps with Type B tripping characteristics for effective overload protection.
Supports DIN rail mounting with screw terminal connections for secure installation.
Toggle switch actuator allows easy manual resetting of the breaker.
Thermal magnetic tripping mechanism ensures accurate fault detection and response.
Complies with IEC/EN 60898-1 and IEC/EN 62606 international standards.
IP20 and IP40 protection ratings guard against solid particles and limited water ingress.
Compact dimensions of 35mm width, 85mm height, and 69mm depth save panel space.

Product Description

ABB ARC1 Miniature Circuit Breaker, model ARC1, is a 1-pole electrical protection device rated at 13 amperes with Type B tripping characteristic. It is designed for 240V AC systems with a breaking capacity of 6 kA. This compact MCB allows effective overload and short circuit protection for residential, commercial, and light industrial electrical installations.

The device mounts easily on standard DIN rails and features screw-type terminals enabling safe and straightforward wiring. The toggle switch actuator provides users with simple manual reset after trip events. Thermal magnetic trip technology combines thermal protection for overloads and magnetic response for short circuits, ensuring fast and reliable circuit interruption under fault conditions.

The MCB conforms to IEC/EN 60898-1 and IEC/EN 62606 standards guaranteeing compliance with strict safety and performance requirements. IP20 and IP40 ratings make it suitable for indoor installations with protection from dust and incidental contact. Measuring 35 mm wide, 85 mm high, and 69 mm deep, it occupies minimal space in distribution boards.

Manufactured in Italy, this model is built for durability and stability, making it an essential component in safety and automation systems for homes, small businesses, and energy distribution panels. Applications include protection of lighting circuits, household appliances, and automation modules requiring high reliability.

Compact 1-pole design for versatile electrical protection. Rated for 13A current with Type B tripping for residential loads. DIN rail mounting and screw terminals for secure installation. Toggle switch for easy manual reset functionality.

Thermal magnetic mechanism provides accurate trip performance. Certified to IEC/EN 60898-1 and IEC/EN 62606 standards. IP20 and IP40 rated for protection against solids and limited moisture. Space-saving dimensions (35x85x69 mm) ideal for panel integration.

Manufactured in Italy for high quality assurance. Suitable for residential, commercial, and automation applications. Explore more high-quality ABB circuit breakers and electrical components at EnvMart for industrial, residential, and commercial automation safety needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The breaking capacity of this model is 6 kA, which allows it to effectively interrupt fault currents in electrical systems.

It has a rated current of 13A, making it suitable for various residential and light commercial applications.

This miniature circuit breaker features Type B tripping characteristics, which are designed for residential loads and provide effective overload protection.

The dimensions are 35mm in width, 85mm in height, and 69mm in depth, allowing for compact installation in distribution boards.

It is designed for DIN rail mounting, which facilitates secure installation in electrical panels.

This miniature circuit breaker features screw-type terminals for safe and straightforward wiring connections.

It has IP20 and IP40 ratings, providing protection against solid particles and limited moisture ingress for indoor installations.

It complies with IEC/EN 60898-1 and IEC/EN 62606 international standards, ensuring safety and performance reliability.

The reset mechanism is a toggle switch actuator, allowing for easy manual resetting after a trip event.

It is suitable for protecting lighting circuits, household appliances, and automation modules in residential and light commercial settings.

This model is manufactured in Italy, ensuring adherence to quality standards during production.

It utilizes a thermal magnetic tripping mechanism, which combines thermal protection for overloads and magnetic response for short circuits.
