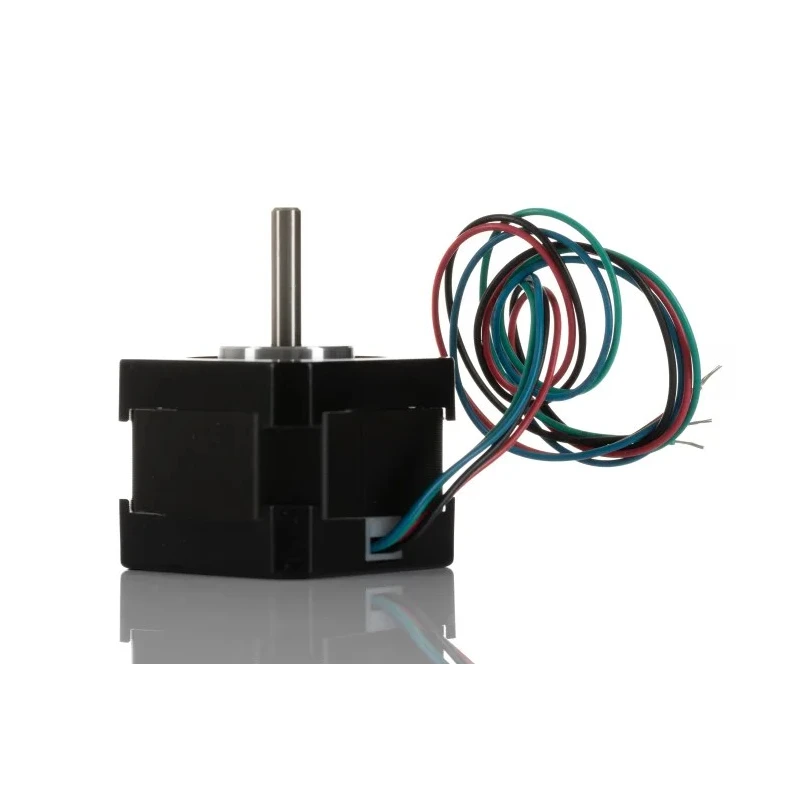

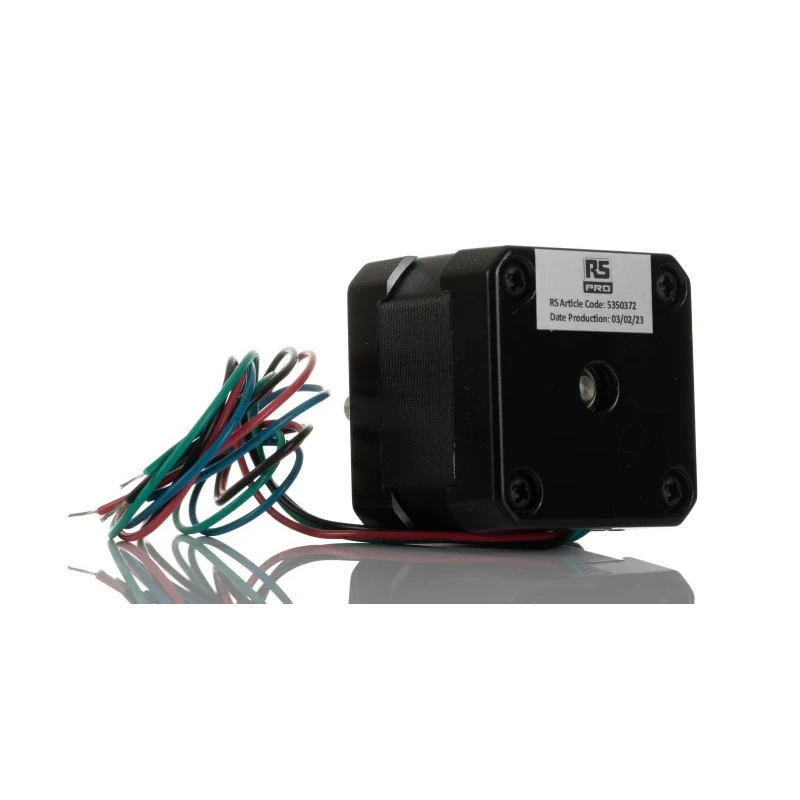

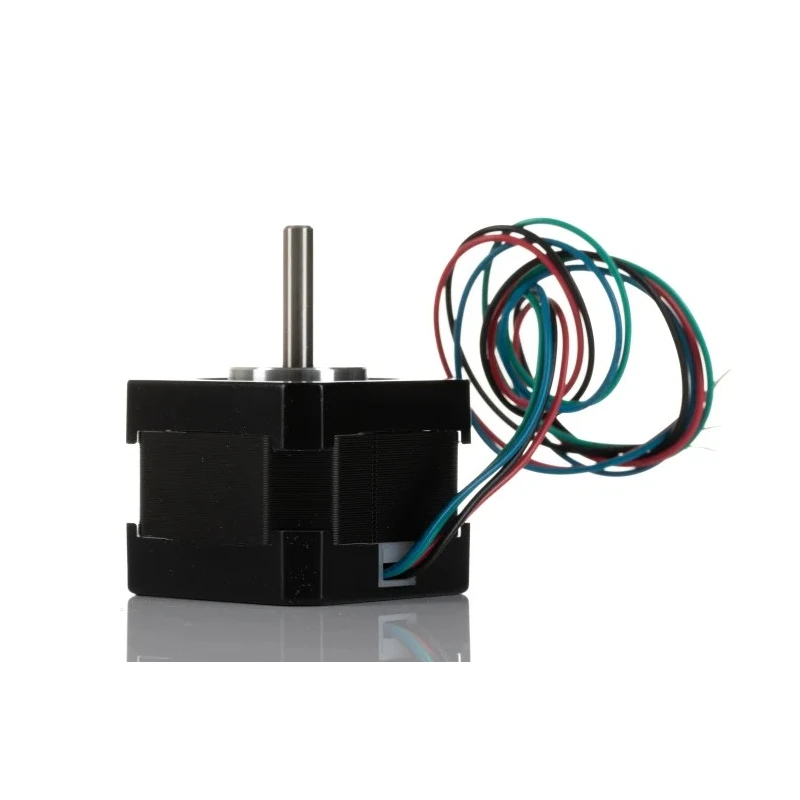

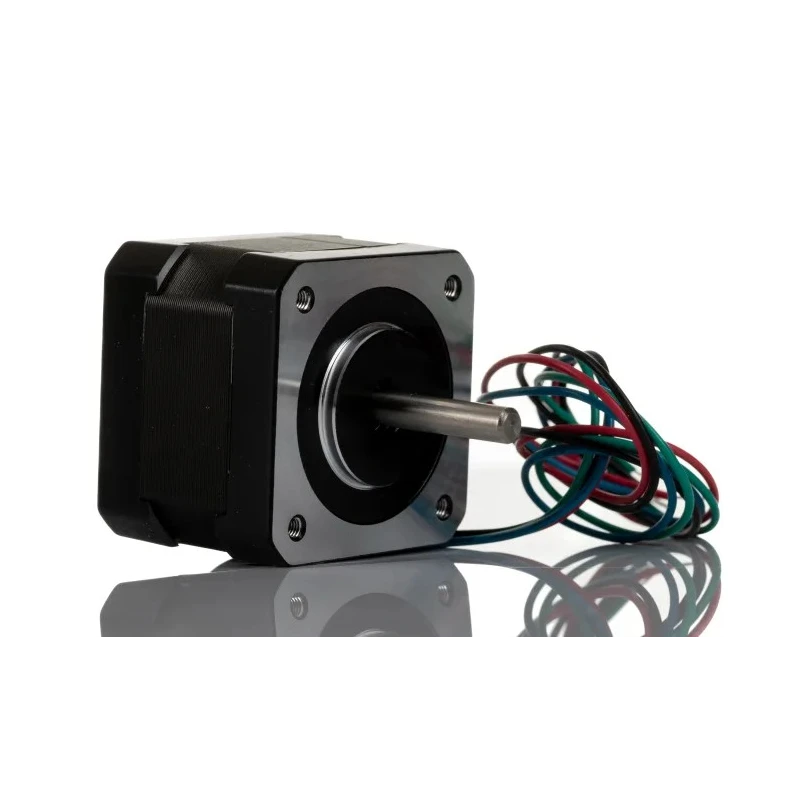

RS PRO Hybrid Permanent Magnet Stepper Motor 2.8V, 2.2mNm Holding Torque, 0.9° Step Angle, 42.3 x 42.3 mm Frame, 5 535-0372

RS PRO 535-0372 is a high precision hybrid permanent magnet stepper motor operating at 2.8 V and 1.33 A current rating. It offers a fine step angle of 0.9°, enabling exact positional control for applications requiring meticulous movement.

Featuring a compact 42.3 x 42.3 mm frame with a 5 mm diameter shaft measuring 22 mm in length, and a depth of 33 mm, the motor is designed for integration into small to medium industrial precision devices.

The motor incorporates a four-wire bipolar winding with a resistance of 2.1 Ω per phase, optimized for smooth stepping performance and energy efficiency. A holding torque of 2.2mNm ensures steady holding capability in static positions, while a detent torque of 0.02 Nm minimizes unwanted movement when not energized.

This stepper motor is RoHS compliant, guaranteeing environmentally safe operation without hazardous materials. It is particularly suited for applications such as robotics, linear actuators, goniometers, laser optics, camera lenses, DVD players, 3D printers, paper feed mechanisms, and XY plotters where precise step control is essential.

This stepper motor features a 42.3 x 42.3 mm frame size and a 5 mm shaft diameter. It uses a four-wire bipolar winding configuration for improved control. The motor provides a current rating of 1.33 A ensuring reliable performance.

Resistance per phase is 2.1 Ω, contributing to electrical efficiency. The shaft length is 22 mm with an overall depth of 33 mm. The motor is RoHS compliant, free from harmful substances. Detent torque is a low 0.02 Nm, enhancing smooth operation.

Ideal for precise positioning in industrial, robotics, and automation applications. Explore EnvMart’s extensive selection of Stepper Motors and other precision motion components to find the ideal match for your industrial needs.
