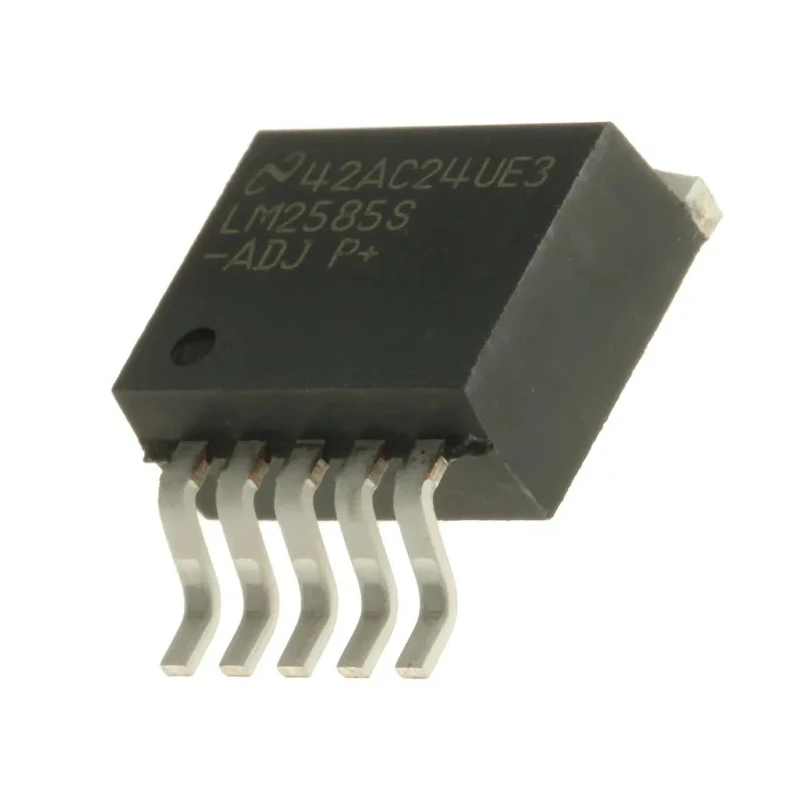

Texas Instruments Boost Converter Surface Mount 12.6V Output Voltage 3A Output Current LM2585S-ADJ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Efficiency | 93% |
| Length | 10.16mm |
| Model | LM2585S-ADJ/NOPB |
| Depth | 4.57mm |
| Width | 8.64mm |
| Mount Type | Surface |
| Series | LM2585 |
| Output Current | 3A |
| Package Type | TO-263 |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | 125°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Line Regulation | 100 mV |
| Standards/Approvals | RoHS, JEDEC |
| Minimum Input Voltage | 4V |
| Number of Pins | 5 |
| Output Voltage 1 | 12.6V |
| Output Voltage 2 | 5.25V |
| Wide Input Voltage Range | 4V to 40V |
| Output voltage versions | 5V, 12V, and adjustable |
Key Features
- Operates with a wide input voltage range from 4V to 40V.
- Features high efficiency up to 93% to minimize power loss.
- Includes internal protection with current limit, under voltage lockout, and thermal shutdown.
- Output voltage tolerance maintains ±4% accuracy under varying line and load conditions.
- Packaged in a compact TO-263 surface mount package with 5 pins.
- Suitable for flyback, boost, SEPIC, and forward converter topologies.
- Wide operating temperature range up to 125°C supports harsh environments.
- Includes internal soft-start to reduce inrush current on startup.
Product Description
Texas Instruments LM2585S-ADJ/NOPB Boost Converter is a high-performance surface mount switching regulator designed to deliver a stable 12.6V output voltage with a maximum output current of 3A. This regulator belongs to the LM258x SIMPLE SWITCHER® family, optimized for flyback, step-up (boost), SEPIC, and forward converter applications.
The device supports a wide input voltage range from 4V to 40V, making it highly suitable for varied power supply designs. It features a high efficiency of 93%, minimizing energy losses and improving thermal performance.
Protection features include internal current limiting, under voltage lockout, and thermal shutdown to ensure reliable operation in demanding industrial, electronic component, and power management applications.
The LM2585S-ADJ/NOPB package type is TO-263 with 5 pins, facilitating easy surface mounting on printed circuit boards. It offers a voltage tolerance of ±4% max over line and load conditions, ensuring stable voltage regulation critical for precision electronics.
This device is designed to reduce inrush current through an internal soft-start function and provides consistent line and load regulation with 100 mV maximum deviation. Its wide operating temperature capability up to 125°C suits use in industrial and commercial electronics environments.
Compliance with RoHS and JEDEC standards assures environmental safety and reliable manufacturing quality. Typical applications include industrial power supplies, DC/DC converters for embedded systems, and regulated power modules requiring efficient and compact voltage boosting.
Operates over wide input voltage range (4V to 40V) with 3A max output current. High efficiency of 93% reduces heat generation and power waste. Internal protections for current limit, under voltage lockout, and thermal shutdown.
Accurate output voltage regulation within ±4% tolerance over varying conditions. Compact TO-263 surface mount package with 5 pins for PCB integration. Soft-start functionality to minimize startup current surges. Suitable for flyback, boost, SEPIC, and forward converter applications.
Compliance with RoHS and JEDEC standards ensures quality and safety. Wide operating temperature up to 125°C supports harsh environments. Explore more electronics components and switching regulators at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 12.6V.
The maximum output current for this unit is 3A.
It operates with a wide input voltage range from 4V to 40V.
The LM2585S-ADJ/NOPB features a high efficiency of up to 93%.
The dimensions of the TO-263 package are 10.16mm in length, 8.64mm in width, and 4.57mm in depth.
It includes internal protections such as current limit, under voltage lockout, and thermal shutdown.
The load regulation is specified at 100 mV maximum deviation.
This model is suitable for applications such as flyback, boost, SEPIC, and forward converter topologies.
The maximum operating temperature for this unit is 125°C.
The TO-263 package has 5 pins.
It complies with RoHS and JEDEC standards, ensuring environmental safety and quality.
The output voltage tolerance is ±4% under varying line and load conditions.
