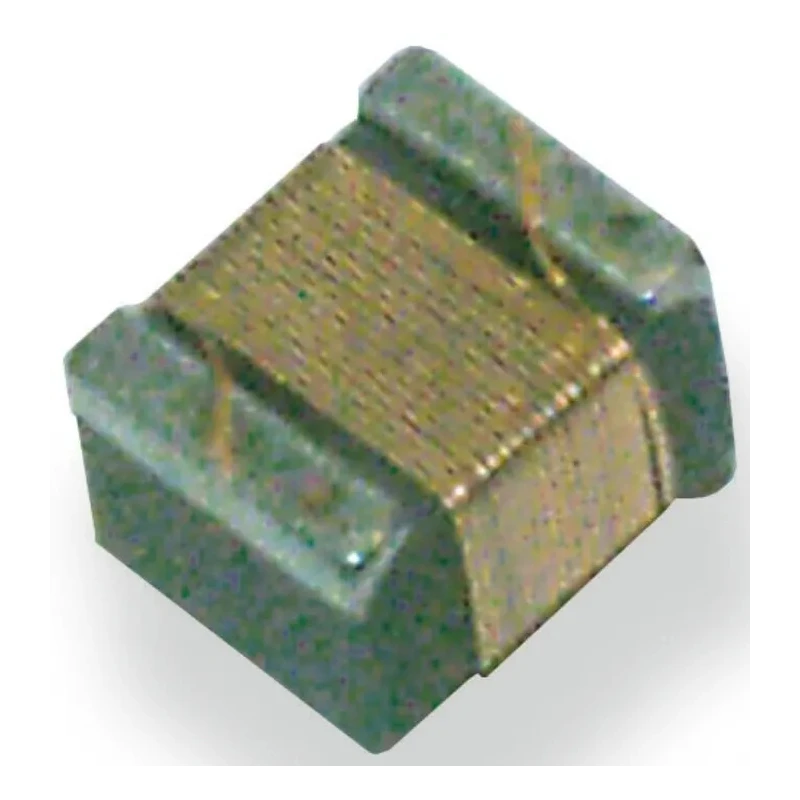

TE Connectivity 3650 Series 0805 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 470 nH ±5% 220 36502AR47JTDG
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| Height | 1.52mm |
| Length | 2.29mm |
| Model | 36502AR47JTDG |
| Depth | 1.73mm |
| Packaging | Reel |
| Series | 3650 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 470nH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 220mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.7Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 375MHz |
| Minimum Quality Factor | 33 |
| Inductor Construction | Wirewound |
Key Features
- Inductance of 470 nH with ±5% tolerance ensures consistent inductive properties.
- Maximum DC current rating of 220 mA suitable for low power applications.
- Ferrite core and wirewound construction deliver high quality factor and minimal losses.
- Maximum operating temperature up to 125°C for reliable operation in harsh environments.
- RoHS compliant, moulded design with solder termination style for surface mounting.
- Maximum DC resistance of 1.7 Ω and self-resonant frequency of 375 MHz.
- Minimal pin count of 2 for easy PCB integration.
Product Description
TE Connectivity 36502AR47JTDG is an 0805 unshielded wirewound surface mount inductor with a ferrite core, delivering inductance of 470 nH ±5% tolerance and a maximum DC current rating of 220 mA.
This surface mount inductor series (3650) features a compact footprint with dimensions of 2.29 mm length, 1.52 mm height, and 1.73 mm depth, making it ideal for space-constrained electronic circuit designs.
The ferrite core material combined with wirewound construction provides high quality factor (minimum Q of 33) and high self-resonant frequency of 375 MHz, enabling efficient operation at high frequencies common in communication and power applications.
With a maximum operating temperature of 125°C and RoHS compliance, this inductor guarantees reliable and environmentally friendly performance. The solder termination style supports surface mount technology (SMT) assembly on printed circuit boards.
This product is moulded for durability and has a maximum DC resistance of 1.7 Ω, ensuring minimal power losses in sensitive electronic applications.
Applications include use in electronic components for power supplies, signal processing, RF circuits, and general passive component functions within industrial, telecommunications, and consumer electronics sectors.
TE Connectivity offers this component as part of their high-quality 3650 series of surface mount inductors designed to meet demanding technical requirements and production efficiencies.
Inductance of 470 nH with ±5 % tolerance. Maximum DC current rating of 220 mA. Compact 0805 package footprint suitable for surface mounting. Ferrite core with wirewound construction ensures high Q and low losses. Maximum operating temperature of 125°C.
RoHS compliant and moulded for long-term reliability. Solder termination style for SMT assembly. High self-resonant frequency of 375 MHz enables high-frequency operation. Explore the Electronics Components category at EnvMart for reliable surface mount inductors and related passive components by TE Connectivity and other industry-leading brands.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 470 nH with a tolerance of ±5%.
This inductor has a maximum DC current rating of 220 mA, suitable for low power applications.
The dimensions of this unit are 2.29 mm in length, 1.52 mm in height, and 1.73 mm in depth.
The maximum operating temperature for this inductor is 125°C.
It has a maximum self-resonant frequency of 375 MHz, enabling efficient operation at high frequencies.
This inductor uses a ferrite core material, which contributes to its high quality factor and efficiency.
The termination style is solder, supporting surface mount technology (SMT) assembly on printed circuit boards.
This model has a minimal pin count of 2, facilitating easy integration into PCB designs.
The maximum DC resistance is 1.7 Ω, which helps minimize power losses in electronic applications.
Yes, this inductor is RoHS compliant, ensuring it meets environmental standards.
It is suitable for use in electronic components for power supplies, signal processing, RF circuits, and general passive component functions.
The minimum quality factor of this model is 33, indicating its efficiency at high frequencies.
