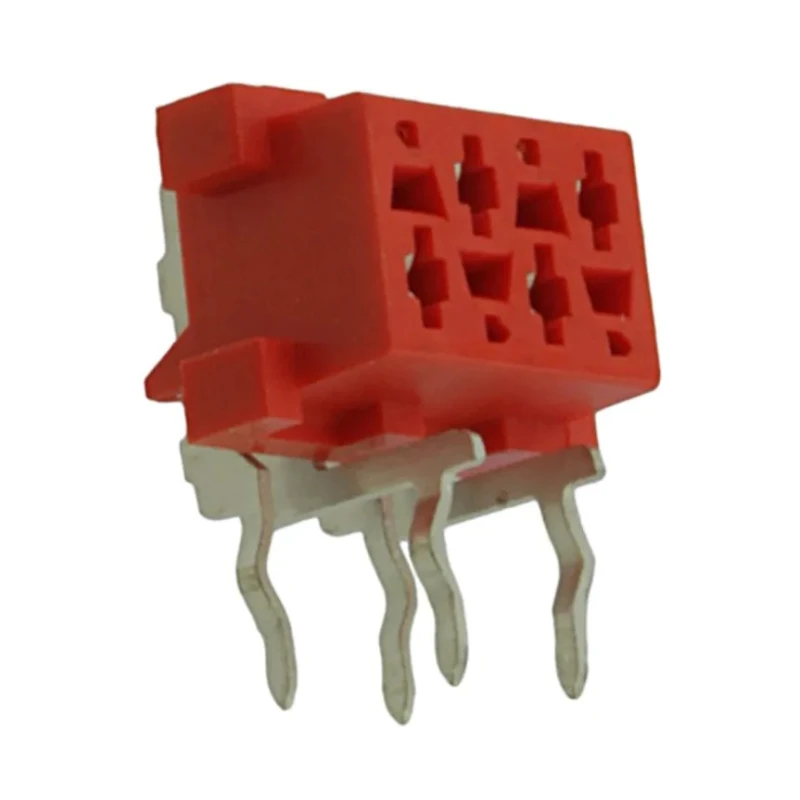

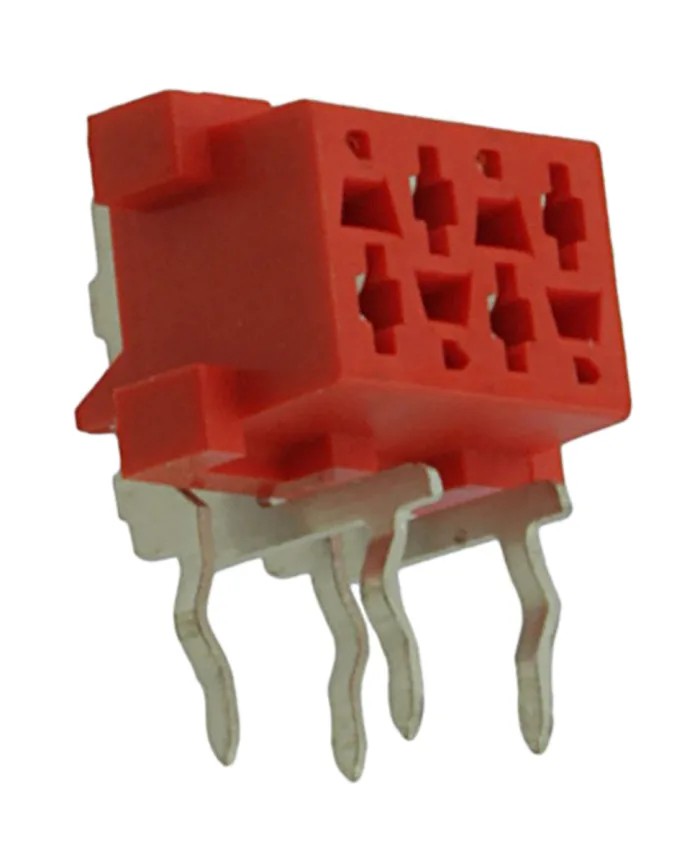

TE Connectivity Micro-MaTch Series Right Angle Through Hole PCB Socket, 4-Contact, 2 Row, 2.54 mm Pitch 7-215460-4

TE Connectivity 7-215460-4 Micro-MaTch Series Right Angle Through Hole PCB Socket is a precision female-on-board connector designed for compact board-to-board and wire-to-board applications. Featuring 4 contacts arranged in 2 rows with a 2.54 mm pitch, this connector ensures a secure and reliable electrical connection in industrial, automotive, and electronics manufacturing environments.

The socket is made with bronze contact material plated with nickel and tin to enhance corrosion resistance and longevity. The unique contact spring system absorbs vibrations and thermal expansion effects, preventing fretting corrosion and ensuring gas-tight connections over long-term use.

This right angle PCB socket uses a polybutylene terephthalate housing that offers excellent durability and stability. It uses solder termination and kinked leg design to provide firm retention to the PCB, ensuring robustness during installation and operation. The connector supports nominal operating voltage of 230V and current up to 1.5 amperes, making it suitable for a wide range of signal and low power connections.

Operating temperature range from -40°C to 105°C allows its use in harsh industrial or automotive applications. Available in side entry version for flexible mounting options, it is manufactured under stringent quality controls in Germany. While it does not have special certifications, the connector adheres to industry standards through TE Connectivity’s proven design.

Typical applications include production and material handling equipment, robots, motors, control units, central heating systems, car radios, navigation systems, dashboard instrumentation, base stations, set top boxes, and audio equipment. Its compact and space-saving Micro-MaTch design facilitates high-density PCB layouts while maintaining reliable performance.

Compact Micro-MaTch series design saves PCB space effectively. Right angle orientation suits board-to-board interconnections requiring vertical and lateral connection. Bronze female contacts with nickel and tin plating ensure corrosion resistance.

Kinked legs provide secure retention on PCB for robust mechanical stability. Handles current up to 1.5A and voltage rating of 230V for standard electronic applications. Wide operating temperatures from -40°C to 105°C enable use in harsh environments.

Contact spring design prevents fretting corrosion and ensures gas-tight connections. Manufactured from durable polybutylene terephthalate housing material with solder termination. Made in Germany to high quality standards without specific approvals.

Ideal for control units, audio equipment, central heating units, robots, motors, navigation, and automotive dashboards. Explore the complete range of PCB Sockets at EnvMart for seamless electronics interconnection solutions.
