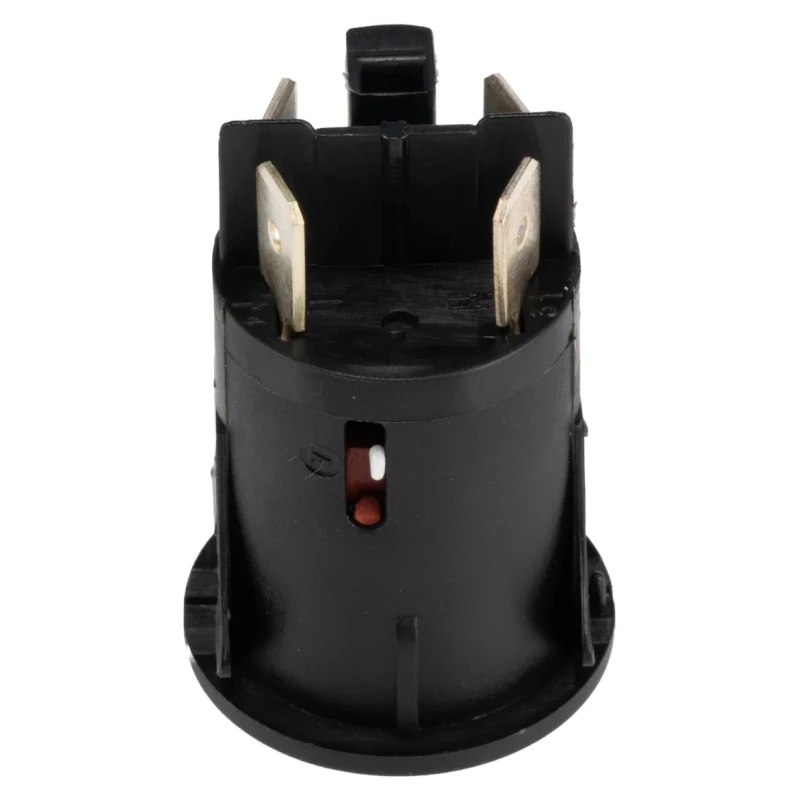

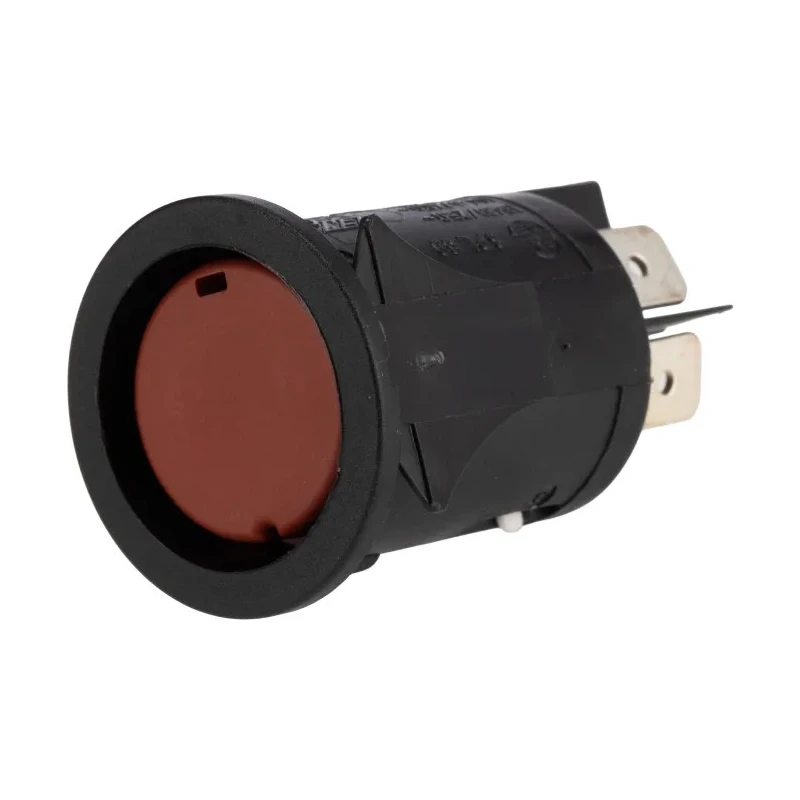

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 25 mm Cutout, DPDT, IP40 IP67, 250 V AC 528-7814
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Dimensions | Depth behind panel 34mm, max. panel thickness 4.5, panel cut-out 25mm |
| Model | 528-7814 |
| IP Rating | IP40, IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off |
| Panel Cutout Size | 25 mm |
| Terminal type | Tab |
| Standards/Approvals | UL, CSA |
| Switch Operation | Latching |
| Actuator Colour | Green |
| Actuator Style | Button |
| Switch Contact Current | 16A |
| Contact AC Voltage | 250V ac |
Key Features
- Features green-colored illuminated actuator for clear status indication.
- DPDT contact configuration supports versatile switching.
- IP40 and IP67 ratings provide excellent protection against dust and water ingress.
- Rated for AC voltage up to 250 V and contact current of 16 A.
- Panel mount with maximum panel thickness of 4.5 mm and 34 mm depth behind panel.
- Mechanical life exceeding 105 operations ensures long-lasting performance.
- Constructed with self-extinguishing thermoplastic conforming to UL94V-2 for safety.
- Standards and approvals include UL and CSA ensuring compliance with international norms.
Product Description
The RS PRO 528-7814 Illuminated Push Button Switch is an industrial-grade latching switch ideal for panel mounting in electrical automation and control systems. It features a green illuminated actuator designed for clear operational feedback, suitable for use in environments where visual status indicators are required.
This switch supports a double pole double throw (DPDT) contact configuration, enabling complex circuit control with dependable switching capability. The unit is robustly built to withstand demanding industrial usage, with a contact rating of 16 A at AC 250 V and mechanical life greater than 105,000 operations, ensuring reliability and extended service life.
The product is protected with IP40 and IP67 ingress protection ratings, which safeguard against dust and water penetration, making it suitable for harsh environments. It is constructed from self-extinguishing thermoplastic material rated UL94V-2 for increased safety and durability in electrical panels and machines.
The push button switch installs easily with a panel cutout size of 25 mm and can be mounted on panels up to 4.5 mm thick with a depth behind the panel measuring 34 mm. Its robust construction and certified standards compliance, including UL and CSA, make it an excellent choice for industrial, manufacturing, electrical panel applications, and automation systems where reliable and visible control is essential.
Green illuminated push button actuator for clear visibility. Latching switch operation ensures stable switching state until reset. Double pole double throw (DPDT) contact configuration. IP40 and IP67 ratings for protection in industrial environments.
Rated for 16 A contact current at 250 V AC. Constructed with flame-retardant UL94V-2 thermoplastic. Mechanical life exceeding 105,000 operations for durability. Certified to UL and CSA standards for safety compliance.
Available as part of the RS PRO series, this push button switch is ideal for integration in control panels and industrial machines requiring precise and reliable operation combined with clear visual indication. Explore more in the Push Button Switch category at EnvMart for comprehensive electrical switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching capabilities.
It has IP40 and IP67 ratings, providing protection against dust and water ingress, making it suitable for harsh environments.
The switch is rated for a contact current of 16 A and can handle an AC voltage of up to 250 V.
The panel cutout size required is 25 mm, with a maximum panel thickness of 4.5 mm and a depth behind the panel of 34 mm.
It can operate at a maximum temperature of 120°C, suitable for various industrial applications.
It is constructed from self-extinguishing thermoplastic material rated UL94V-2, enhancing safety and durability.
The mechanical life of this unit exceeds 105,000 operations, ensuring long-lasting performance in industrial settings.
This switch operates in a latching configuration, maintaining its state until reset.
It is certified to UL and CSA standards, ensuring compliance with international safety norms.
The actuator is green in color and designed as a button, providing clear visual feedback during operation.
The switch features tab-type terminals for easy connections during installation.
