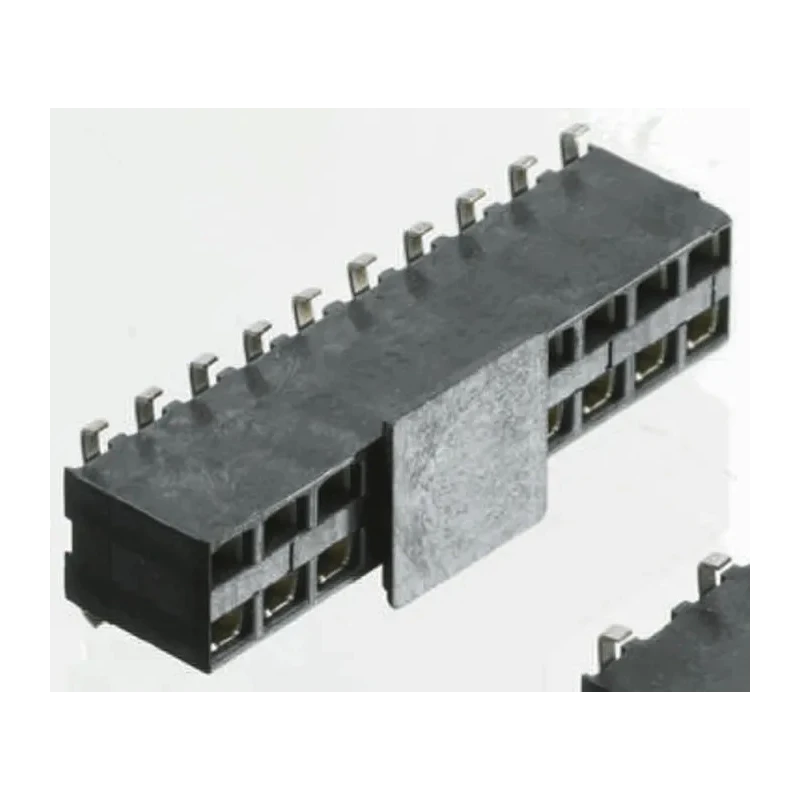

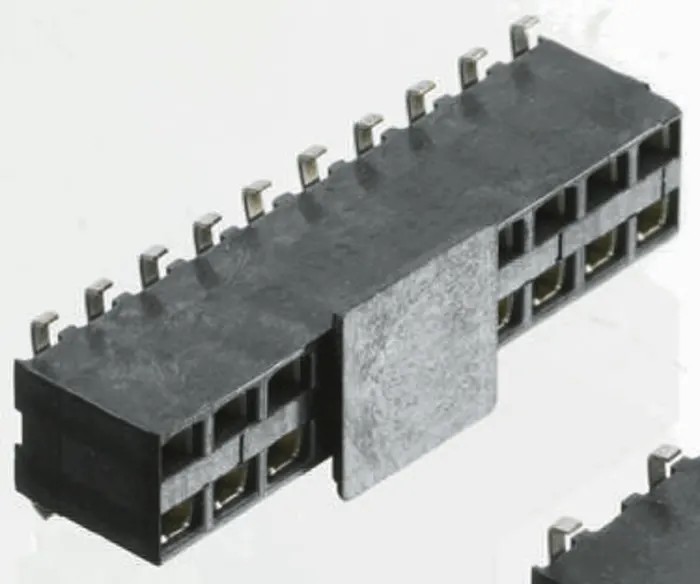

TE Connectivity AMPMODU HV100 Series Straight Surface PCB Socket, 12-Contact, 2 Row, 2.54 mm Pitch Solder HV100
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Supports current up to 12A and voltage rating of 250V.
- Features straight orientation and surface mount type for PCB applications.
- Constructed with polyamide housing material for durability.
- Female contact gender with bronze contacts plated with tin for reliable conductivity.
- Operates reliably in temperature ranges from -65°C to 125°C.
- Part of the AMPMODU HV100 series, ensuring compatibility with board-to-board connections.
- Ideal for industrial, electronic, and laboratory PCB interconnect applications.
- Offers vertical PCB mount with top or bottom entry and end stackable capability.
Product Description
TE Connectivity HV100 Series Straight Surface PCB Socket, model HV100, is a high-quality PCB connector designed with 12 contacts arranged in 2 rows with a 2.54 mm pitch. This surface mount socket ensures efficient solder termination and is engineered to meet industrial electronics requirements.
Constructed using durable polyamide housing and bronze contacts plated with tin, this connector supports a current rating of 12A and voltage rating of 250V, suitable for board-to-board connection systems. The female contact gender and straight orientation facilitate straightforward installation and reliable electrical contact.
Engineered to operate effectively in temperatures ranging from -65°C to 125°C, this PCB socket is ideal for use across various industrial, manufacturing, and electronic laboratory environments. Its vertical mount style supports both top and bottom entry as well as end-stackable configurations, enhancing design flexibility.
The AMPMODU HV100 series is recognized for offering robust modular interconnect solutions on the standard 2.54 mm grid, widely used in multiple industry sectors. This product provides a dependable interface for wire-to-board and board-to-board applications, including stacking.
Supports current up to 12A and 250V voltage rating. Features polyamide housing and bronze tin-plated contacts. Designed for surface mount and solder termination. Female contact gender with straight orientation. Operates within temperature range of -65°C to 125°C.
12 contacts arranged in 2 rows with 2.54 mm pitch. Vertical PCB mount with top or bottom entry and end stackable. Suitable for industrial and electronic manufacturing applications.
This TE Connectivity PCB Socket offers precision and reliability suitable for demanding electronics applications in industrial, laboratory, manufacturing, and commercial environments. Browse EnvMart's extensive range of electronics connectors for compatible solutions and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB socket is 12A.
This connector can handle a voltage rating of 250V.
The contacts in this model are arranged with a pitch of 2.54 mm.
The housing is made of polyamide, and the contacts are bronze plated with tin.
It operates reliably in temperatures ranging from -65°C to 125°C.
This PCB socket has 12 contacts arranged in 2 rows.
This connector uses solder termination.
The orientation of this PCB socket is straight.
Yes, this model is designed for board-to-board connection systems.
This connector supports surface mount type for PCB applications.
It supports both top and bottom entry configurations.
This PCB socket is part of the AMPMODU HV100 series.
