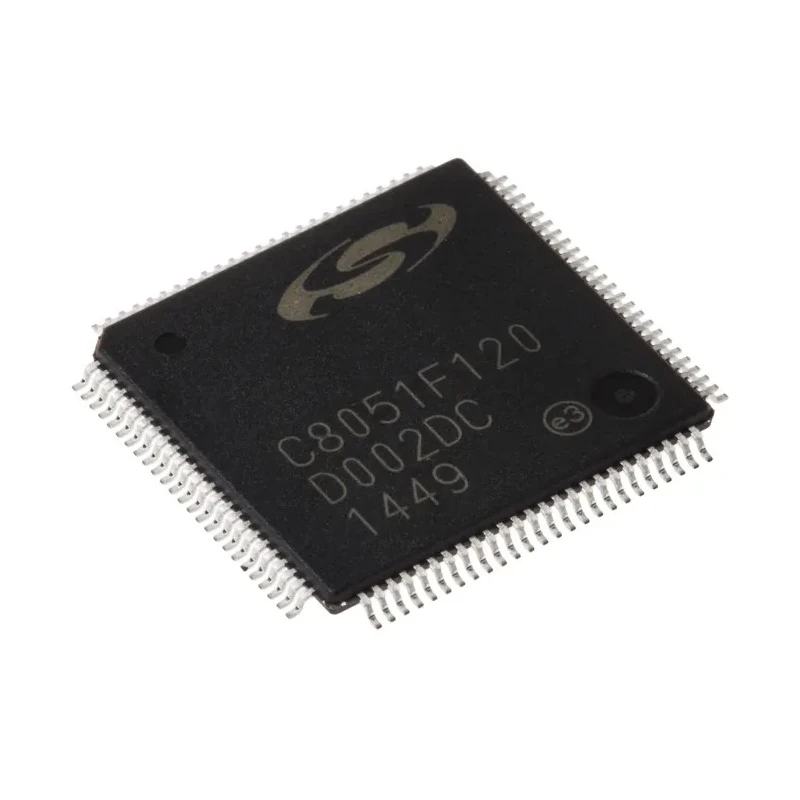

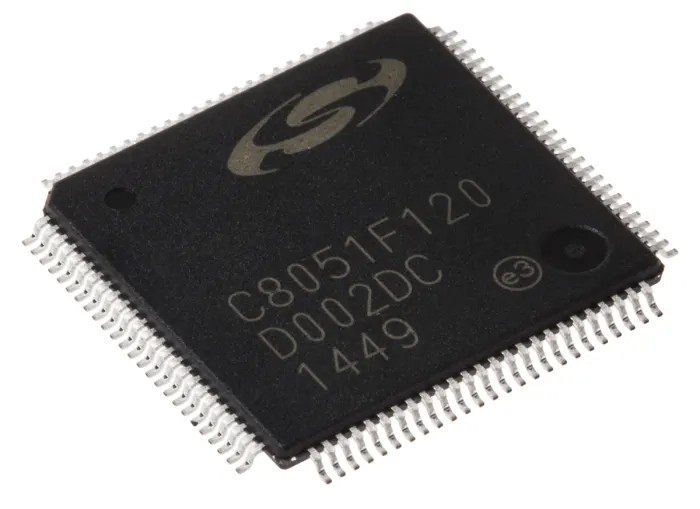

Silicon Labs 8-bit 8051 Microcontroller 100 MHz 128kB FLASH 100-Pin TQFP C8051F120-GQ

Free Delivery in India | Lowest Global Shipping Charges

Silicon Labs 8-bit 8051 Microcontroller 100 MHz 128kB FLASH 100-Pin TQFP C8051F120-GQ

Name: Silicon Labs 8-bit 8051 Microcontroller 100 MHz 128kB FLASH 100-Pin TQFP C8051F120-GQ
Brand: Silicon Labs
SKU: 338765
Price: 51.53 USD
Availability: InStock



Category Microcontroller Brand Silicon Labs Condition New

Specifications

Country of Origin	India
Brand	Silicon Labs
Height	1.05mm
Length	14mm
Model	C8051F120-GQ
Width	14mm
Mount Type	Surface
Series	C8051F
Maximum Operating Temperature	85°C
Package Type	TQFP
Minimum Operating Temperature	-40°C
Ram size	8.45kB
Pin Count	100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Device Core	8051
Program Memory Size	128kB
Maximum Clock Frequency	100MHz
Number of Programmable I/Os	64
Analogue Comparators	2
Maximum Expanded Memory Size	8kB
Number of Timers	5
Instruction Set Architecture	CISC
ADCs	8 x 12 Bit
Program Memory Type	FLASH
DACs	2 x 12 Bit

Key Features

The microcontroller features a classic 8051 core architecture delivering up to 100 MIPS performance.
It operates with a supply voltage range from 3 V to 3.6 V, supporting industrial temperature ranges from -40°C to 85°C.
Includes advanced peripherals such as 8 x 12-bit ADCs, 2 x 12-bit DACs, and 2 analog comparators.
Equipped with five 16-bit timers and 64 programmable input/output pins for flexible control.
Flash memory is reprogrammable in-circuit allowing field upgrades and non-volatile data storage.
Package dimensions include 14mm length, 14mm width, and 1.05mm height suitable for surface mounting.
The device supports CISC instruction set and has a maximum expanded memory size of 8kB.

Product Description

Silicon Labs C8051F120-GQ is an 8-bit 8051 microcontroller designed for industrial and embedded applications requiring high-speed processing and extensive peripheral integration. Operating at up to 100 MHz, this microcontroller offers superior performance with 128kB of FLASH memory and 8.45kB of RAM, housed in a compact 100-pin TQFP surface-mount package measuring 14mm by 14mm by 1.05mm.

This microcontroller family features analogue-intensive mixed-signal capabilities, including 8 precision 12-bit analog-to-digital converters (ADCs) and 2 12-bit digital-to-analog converters (DACs), along with 2 analog comparators and a temperature sensor. It supports a versatile voltage range from 3 to 3.6 V and is specified for operation across a broad industrial temperature range from -40°C to 85°C, ensuring reliable performance in harsh environments.

With 64 programmable I/O pins and five versatile 16-bit timers, the C8051F120-GQ allows for intricate timing and control applications. Its FLASH memory supports in-circuit reprogramming, enabling firmware upgrades and non-volatile data storage, which is ideal for evolving product requirements or maintenance in deployed systems.

The CPU core is based on a CISC architecture, optimized for embedded control tasks. Its program memory size of 128kB and RAM of 8.45kB provide substantial on-chip resources for complex applications. The microcontroller supports up to 8kB of expanded memory in application designs.

Its surface-mount TQFP package is widely compatible with industrial-standard PCBs facilitating easy integration. The device does not carry automotive standard certifications but is suitable for industrial applications.

Typical applications include embedded industrial controllers, data acquisition systems, consumer electronics, and instrumentation requiring analog and digital integration. This microcontroller series supports efficient mixed-signal processing for modern industrial and commercial electronics development.

Set includes 1 Silicon Labs C8051F120-GQ 8-bit microcontroller in a 100-pin TQFP package. Browse more Microcontrollers and embedded solutions from Silicon Labs on EnvMart to meet your design and manufacturing needs.
