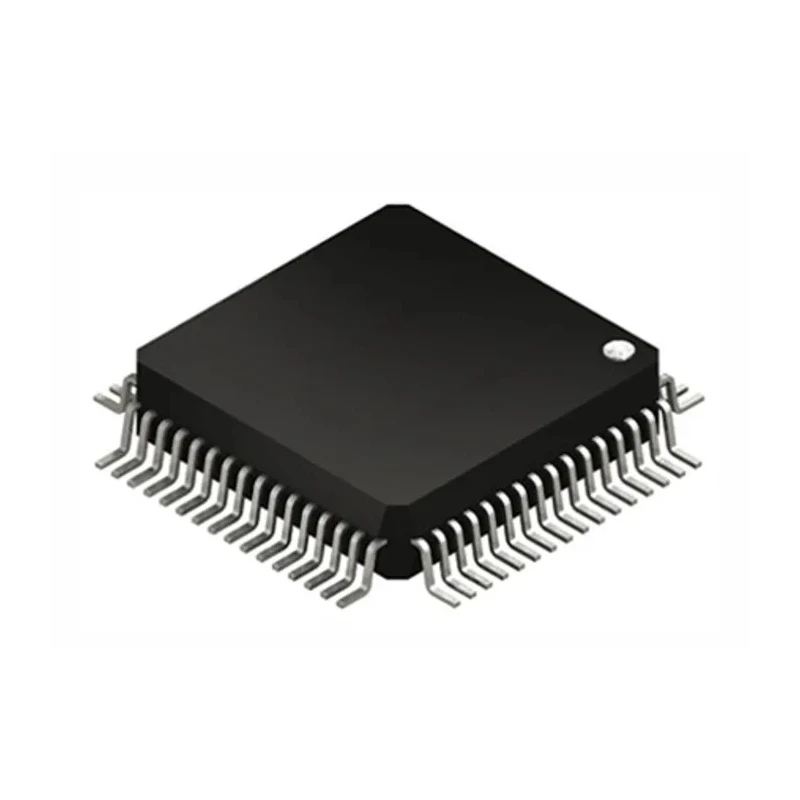

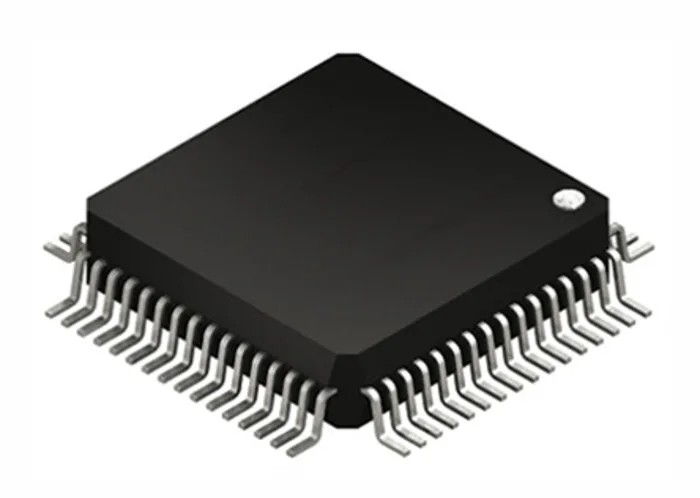

Silicon Labs 8-bit 8051 Microcontroller 64 kB FLASH 25 MHz 64-Pin TQFP C8051F023-GQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Silicon Labs |
| Height | 1.05mm |
| Length | 10mm |
| Model | C8051F023-GQ |
| Width | 10mm |
| Mount Type | Surface |
| Series | C8051F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4.35kB |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.7V |
| Device Core | 8051 |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 25MHz |
| Number of Programmable I/Os | 32 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 4.1kB |
| Number of Timers | 5 |
| Instruction Set Architecture | CISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- Highly integrated 8051-compatible CIP-51 core delivering up to 25 MIPS performance.
- 64 kB in-system programmable FLASH memory and 4352 bytes of on-chip RAM.
- Dual 12-bit DACs, two analogue comparators, and 8 x 10-bit ADC channels with PGA.
- Wide supply voltage range of 2.7 to 3.6 V with industrial temperature specifications from -40°C to 85°C.
- 64-pin TQFP surface-mount package with 64 digital I/O pins and five 16-bit timers.
- Supports SPI, SMBus/I2C, and two UART serial interfaces for versatile connectivity.
- Includes on-chip watchdog timer, VDD monitor, and temperature sensor for system reliability.
- In-system flash reprogramming and full-speed non-intrusive debug interface.
Product Description
Silicon Labs C8051F023-GQ is a highly integrated 8-bit 8051-compatible microcontroller designed for industrial, embedded, and mixed-signal applications. It features a 25 MHz clock frequency and 64 kB of flash memory enabling efficient processing and ample program storage capacity with in-system programmability for firmware updates.
The device offers extensive analogue and digital peripherals including two 12-bit DACs, an 8-channel 10-bit ADC with programmable gain amplifiers, analogue comparators, and up to 64 programmable I/O pins in a compact 64-pin TQFP package, making it ideal for compact, high-performance embedded control systems.
The microcontroller operates over a wide voltage range from 2.7 to 3.6 volts and is specified for industrial temperature operation from -40°C to +85°C, making it robust for harsh environments. On-chip features such as watchdog timer, voltage monitoring, and temperature sensing provide advanced system protection and reliability.
Communication interfaces supported include SPI, SMBus/I2C bus, and two UARTs, facilitating integrative communication in multi-device systems. The multifunctional timers and programmable counter/timer array offer precise timing and control for complex embedded applications.
This microcontroller features an 8051-compatible CIP-51 core achieving up to 25 MIPS performance. Equipped with in-system programmable flash memory and can be programmed or reprogrammed in-circuit. Includes multiple timely and analogue peripherals such as timers, DACs, ADCs, and comparators for versatile application use.
Supports a broad temperature and voltage range consistent with industrial standards. Packaged in a 64-Pin TQFP surface-mount package suitable for dense circuit board designs.
The Silicon Labs C8051F023-GQ microcontroller is widely used in industrial automation, control systems, embedded research and development, and various signal processing applications. It provides developers with a reliable, powerful, and feature-rich platform suitable for complex embedded designs.
Explore EnvMart’s selection of Silicon Labs Microcontrollers for advanced electronic projects and industrial-level embedded solutions.
