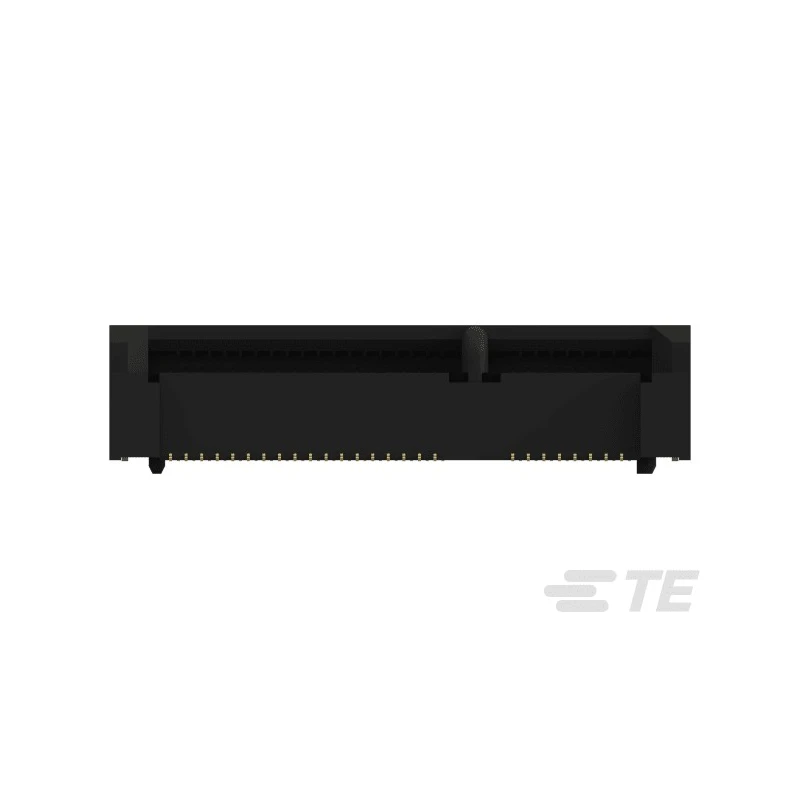

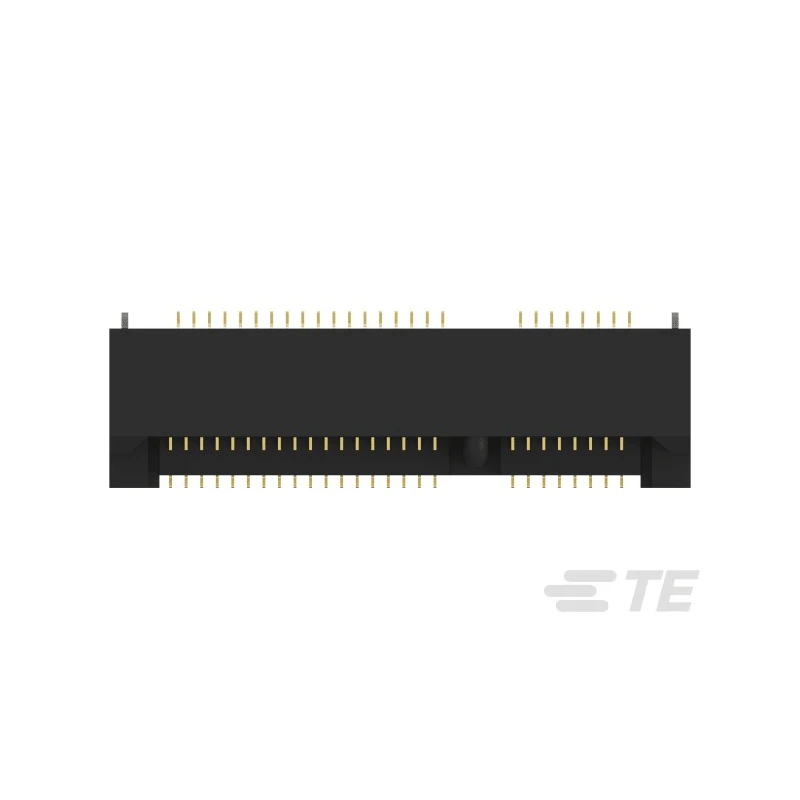

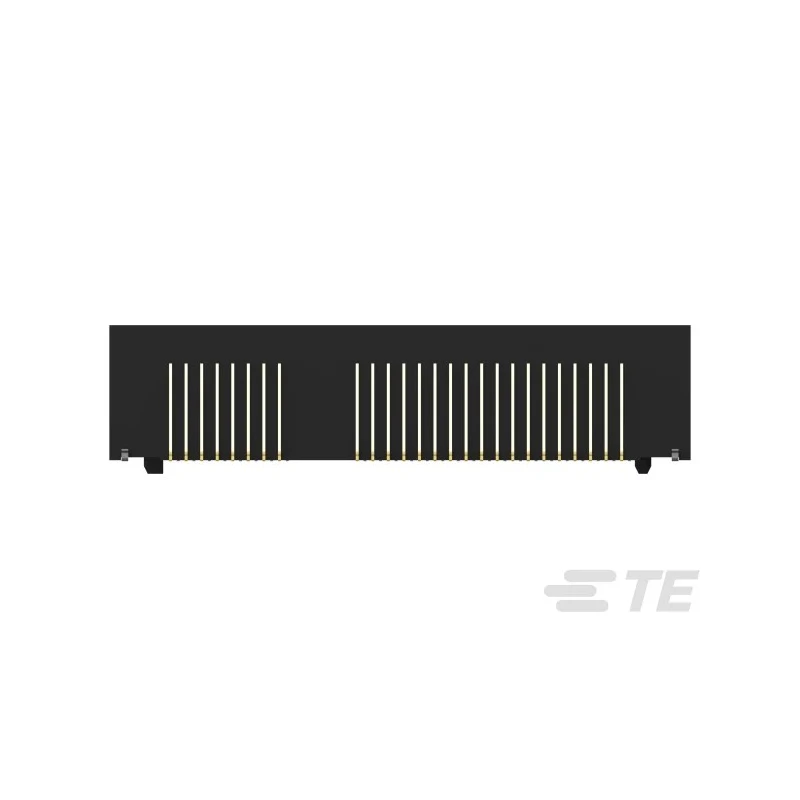

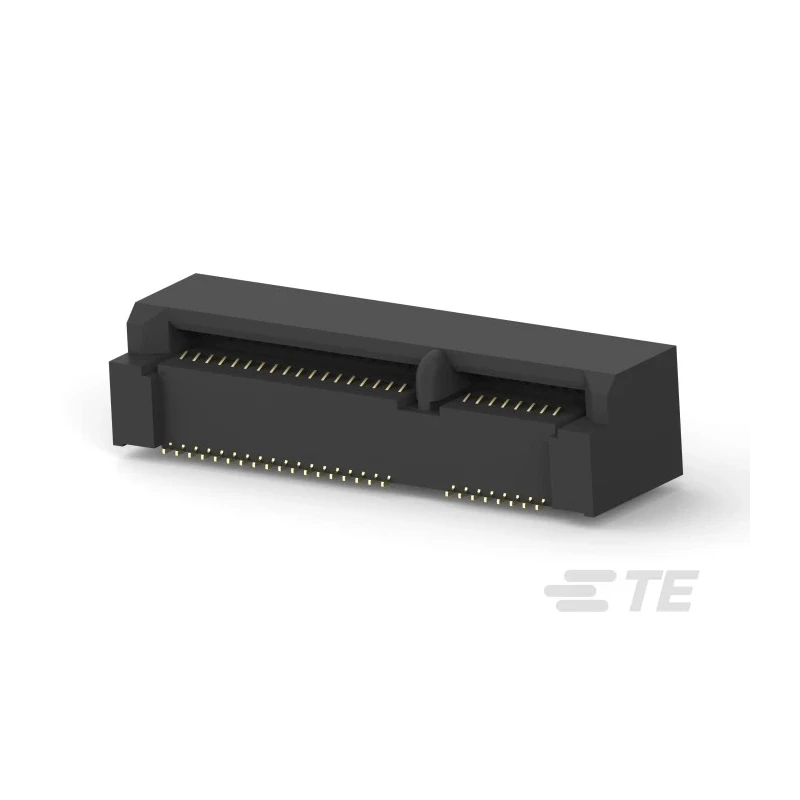

TE Connectivity Mini PCI Express Series Edge Connector Female, 52-Contacts, 0.8 mm Pitch, 52 Row 1759547-1

TE Connectivity 1759547-1 Mini PCI Express Series Edge Connector Female is a high-precision electronic connector designed for board-to-board connection systems used in Mini PCIe form factor devices. It features 52 gold-plated contacts with a fine 0.8 mm pitch, suitable for compact and high-density electronic applications.

This edge connector utilizes copper alloy contact material, providing excellent conductivity and mechanical durability, ensuring stable signal transmission and longevity under demanding operating conditions. The connector's operating temperature range from -55°C to 85°C makes it suitable for a variety of industrial, commercial, and embedded computing environments.

Its keyed design prevents incorrect mating, enhancing assembly reliability in manufacturing and field servicing. The current rating of 500 mA aligns with signal-level power requirements typically found in computing and communication devices.

The product complies with RoHS environmental standards, supporting sustainable manufacturing. This connector is specifically designed for Mini PCI Express and mSATA cards featuring a 52-row layout, making it an ideal choice for manufacturers and engineers working on industrial networking, embedded systems, and compact computing solutions.

This edge connector has 52 gold-plated contacts ensuring high conductivity and resistance to corrosion. The 0.8 mm pitch spacing supports compact and precise electronic designs. Constructed with copper alloy contact material to provide durable performance.

Supports operating temperatures ranging from -55°C to 85°C for versatile industrial use. Features a keyed design to ensure proper mating and avoid incorrect connections. Specified current rating is 500 mA, suitable for low power signal transmission.

The connector complies with RoHS standards for environmental safety. Designed specifically for Mini PCI Express and mSATA card types with a 52-row configuration.

This connector finds widespread use in electronic component manufacturing, industrial control systems, embedded computer applications, telecommunications equipment, and wherever reliable Mini PCIe connectivity is required. It ensures precise, secure connections between printed circuit boards in tight form factors.
