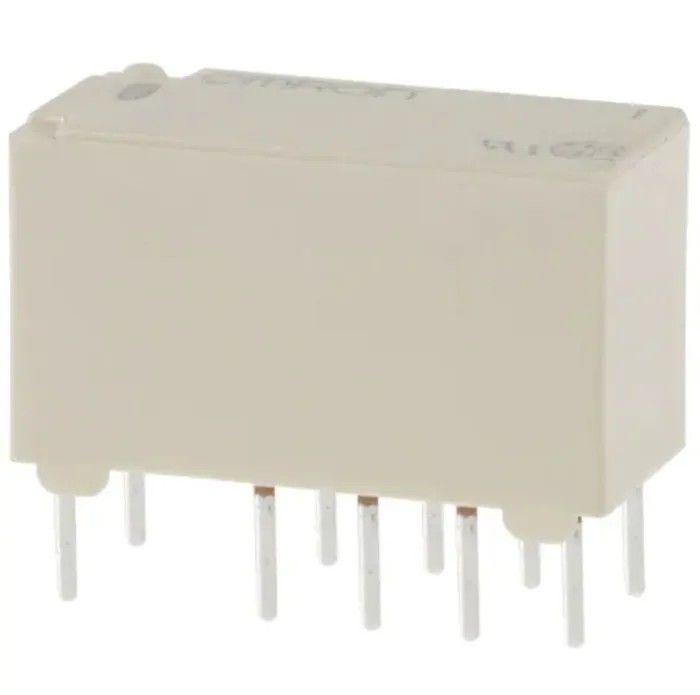

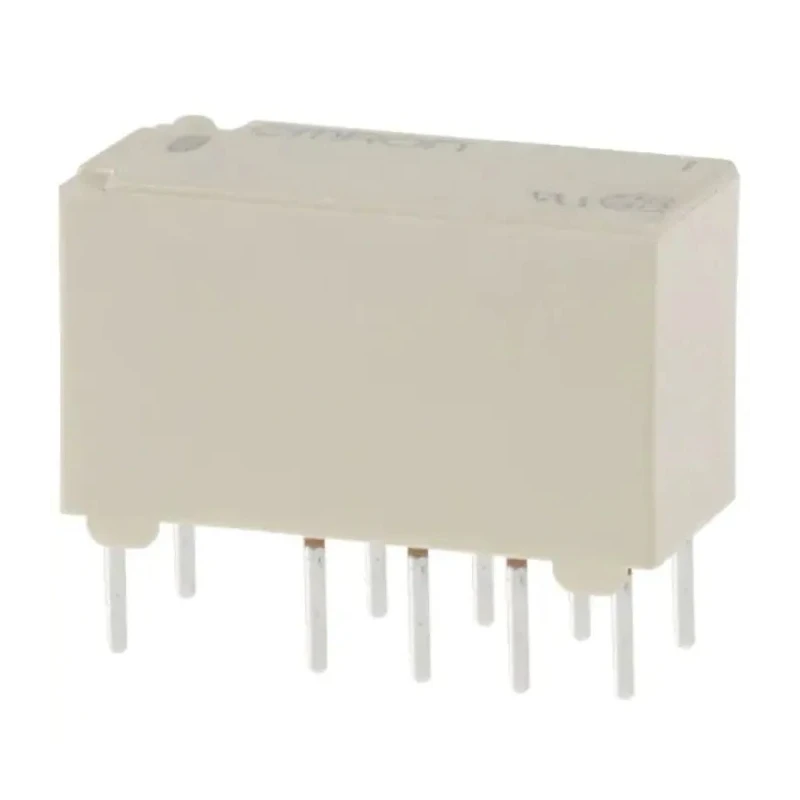

Omron Signal Relay PCB Mount DPDT 12V DC Coil 2A Switching Current G6SK-2 DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.4mm |
| Length | 15mm |
| Model | G6SK-2 DC12 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Silver Alloy |
| Series | G6S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Contact Resistance | 75mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 200mW |
| Switching Power | 60W |
Key Features
- Designed for surface mount PCB installation for compact applications.
- DPDT configuration supports dual-pole functionality.
- Switching voltage ratings up to 220V AC/DC for versatile use cases.
- Operating temperature range from -40°C to 70°C ensures reliability in harsh environments.
- Contacts are made of gold silver alloy for low contact resistance of 75mΩ.
- Coil resistance of 720Ω with low power consumption at 200mW coil power.
- Compact size with dimensions 15mm length, 9.4mm height, and 7.5mm width.
- Fully RoHS compliant for environmental safety.
Product Description
Omron G6SK-2 DC12 is a PCB mount signal relay designed for high-performance switching with a 12V DC coil and 2A switching current. This DPDT relay features surface mount terminals making it suitable for compact PCB designs.
Constructed with gold silver alloy contacts, it ensures minimal contact resistance of 75mΩ, improving signal integrity and longevity. The relay supports a maximum switching AC and DC voltage of 220V, enabling versatile electrical switching operations.
The operating temperature range from -40°C to 70°C makes it reliable for applications in various industrial and commercial environments. The coil resistance stands at 720Ω with a power consumption of only 200mW, facilitating energy-efficient operation.
This relay's dimensions are 15mm in length, 9.4mm in height, and 7.5mm in width, providing a compact footprint ideal for modern electronics. The relay is fully RoHS compliant, adhering to environmental regulations.
Ideal for use in telecommunications equipment, measurement devices, office automation, audio-visual products, security systems, building automation, industrial machinery, amusement equipment, and home appliances. It ensures high reliability and performance in signal switching applications.
Designed for surface mount PCB installation for compact applications. DPDT contact configuration supports dual-pole functionality. Switching voltage ratings up to 220V AC/DC for versatile use cases. Operating temperature range from -40°C to 70°C ensures reliability in harsh environments.
Gold silver alloy contacts provide low contact resistance. Low coil power of 200mW for energy efficiency. Compact dimensions ideal for space-constrained PCB layouts. Fully RoHS compliant for environmental safety. Wide industrial and commercial application suitability.
Explore more Omron Signal Relays and components in the Electronics & Electricals category at EnvMart for reliable industrial and laboratory use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron G6SK-2 DC12 has a switching current rating of 2A.
This relay operates with a coil voltage of 12V DC.
The dimensions of this relay are 15mm in length, 9.4mm in height, and 7.5mm in width.
The relay supports a maximum switching voltage of 220V AC/DC.
The G6SK-2 DC12 features a DPDT (Double Pole Double Throw) contact configuration.
The contacts are made of gold silver alloy, which provides low contact resistance.
The coil resistance of this relay is 720Ω.
The operating temperature range is from -40°C to 70°C.
The coil power consumption is 200mW, making it energy efficient.
Yes, this relay is fully RoHS compliant, adhering to environmental safety regulations.
This model is designed for PCB surface mount installation.
This relay is suitable for telecommunications equipment, measurement devices, and various industrial applications.
