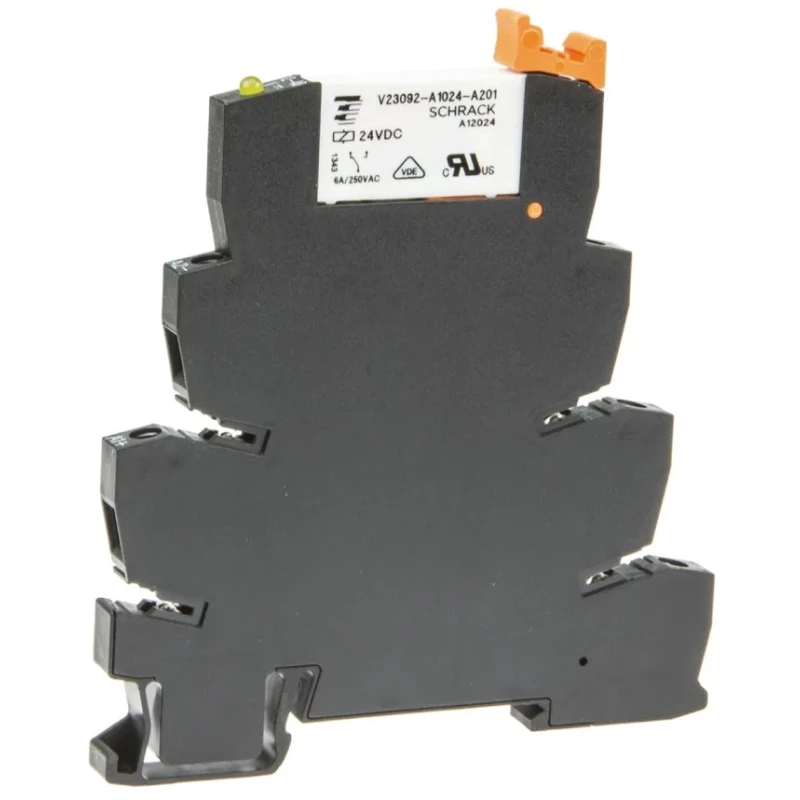

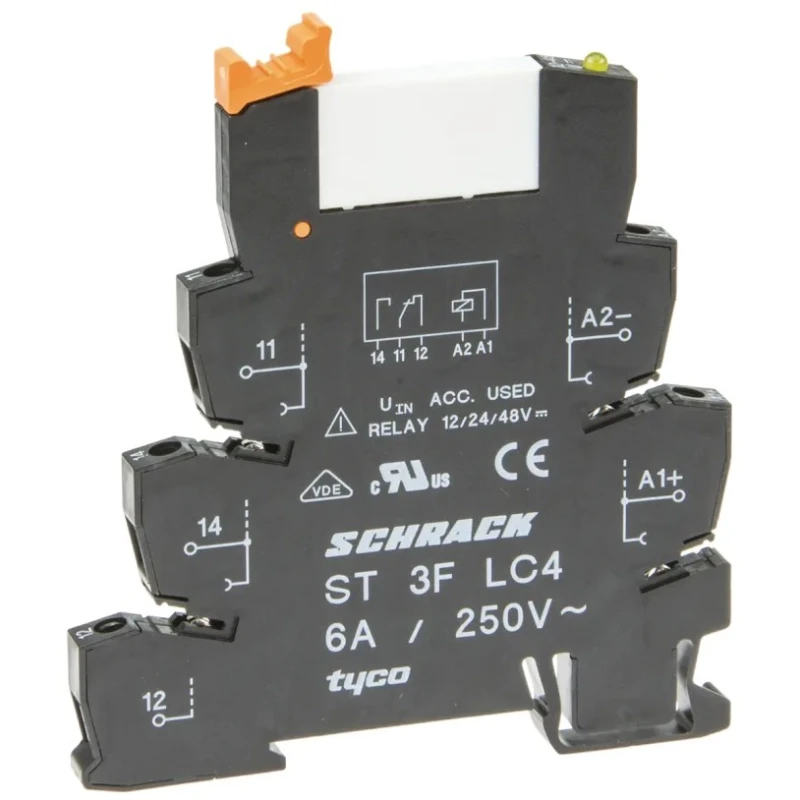

TE Connectivity SNR Series Interface Relay DIN Rail Mount 24V DC Coil SPDT ST3P2LC4 3-1416100-0
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 94mm |
| Length | 80mm |
| Model | ST3P2LC4 3-1416100-0 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Contact Material | Gold Plated |
| Series | SNR |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | RoHS, REACH |
| Coil Resistance | 3.39kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| RS PRO Interface Relay, DIN Rail, 24V dc Coil, SPDTBrand | RS PRO |
Key Features
- The relay features a slim 6.2mm width for high packing density on DIN rails.
- It includes screw terminal type for secure electrical connections.
- Coil resistance is 3.39kΩ, suitable for precise coil control at 24 volts DC.
- Designed to switch currents up to 6A with gold-plated contacts for durability.
- The relay body measures 80mm in length, 94mm in height, and 6.2mm in width.
- Operating temperature ranges from -40°C to 55°C, suitable for industrial environments.
- Equipped with LED and protection diodes for DC coil versions ensuring precise operation and polarity protection.
- Rated for switching AC voltages up to 240V and DC voltages up to 24V.
Product Description
TE Connectivity presents the SNR Series Interface Relay model ST3P2LC4 3-1416100-0, a high-performance electromechanical relay optimized for industrial automation, electrical control panels, and signal conditioning applications. This Interface Relay is designed for DIN rail mounting, featuring a compact 6.2mm slim-line package that maximizes space efficiency on control panels.
Operating on a 24V DC coil with a coil resistance of 3.39kΩ, this relay offers reliable switching with a single pole double throw (SPDT) contact configuration. It supports switching AC voltage up to 240V and DC voltage up to 24V, capable of handling a switching current of 6A. Contacts are gold plated, ensuring excellent conductivity and resistance to corrosion, enhancing lifespan and performance reliability.
The relay includes screw terminals to provide secure and robust wiring connections. The device accommodates an operating temperature range from -40°C to 55°C, capable of withstanding demanding industrial environments. The built-in LED and protection diodes provide enhanced operational safety and polarity protection, reducing installation errors and maintenance requirements.
Manufactured in the Czech Republic, this relay complies with RoHS and REACH environmental regulations and holds VDE electrical safety approval. The product is ideal for use in industrial automation systems, manufacturing equipment, HVAC control panels, and other electrical interface applications requiring robust, reliable relay performance.
The relay provides a slim 6.2mm width design enabling high-density mounting on DIN rails. Screw terminal connections guarantee secure mechanical and electrical integrity. Gold plated contacts optimize conductivity and durability.
LED and protection diodes on DC versions enhance reliability and fail-safe operation. Wide temperature range operation ensures suitability for diverse industrial environments. Meets RoHS and REACH environmental compliance standards.
VDE approval attests to product safety and regulatory compliance. Compact dimensions of 80mm length and 94mm height allow easy integration. Switching capacity of 6A makes it versatile for multiple load types. Ideal for automation, control systems, and signal conditioning applications.
Explore the full range of TE Connectivity products in the Electronics & Electricals category at EnvMart for reliable and certified solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates on a 24V DC coil voltage.
It is rated for a maximum switching current of 6A.
The relay measures 80mm in length, 94mm in height, and 6.2mm in width.
This model features a single pole double throw (SPDT) contact configuration.
The coil resistance is 3.39kΩ, allowing for precise coil control.
It complies with RoHS and REACH environmental regulations.
The operating temperature range is from -40°C to 55°C.
It includes screw terminals for secure electrical connections.
It can switch AC voltages up to 240V.
The relay is equipped with LED indicators and protection diodes for DC coil versions, enhancing reliability and polarity protection.
The relay is manufactured in the Czech Republic.
This model is designed for DIN rail mounting, which allows for high-density installation.
