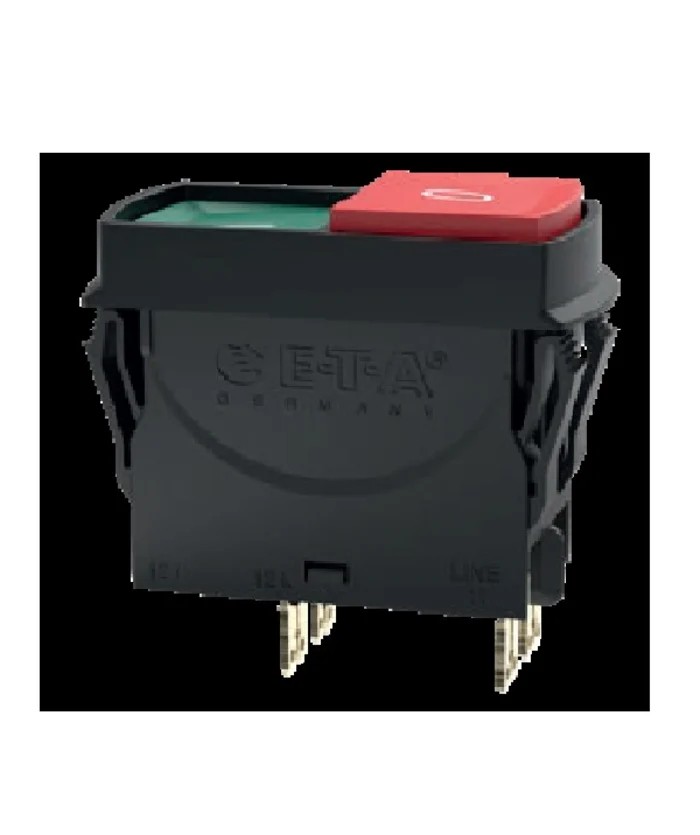

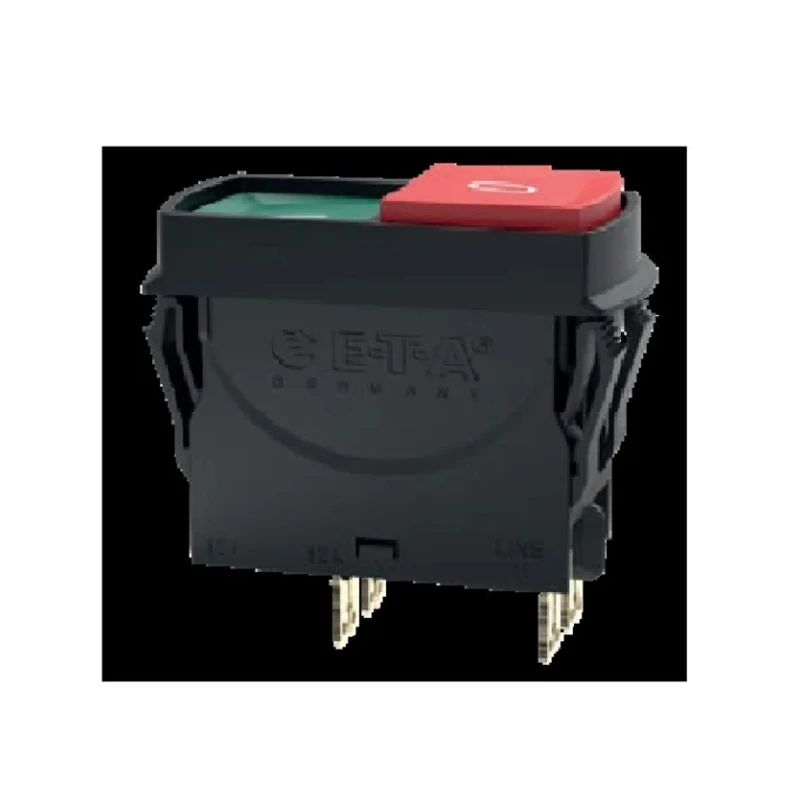

ETA Thermal Circuit Breaker 2-Pole Screw Mount 10A Current Rating 240V AC 50V DC 3120-N32F-H7T1-SGRD-10A
Specifications
| Country of Origin | Tunisia |
|---|---|
| Range | 3120-N |
| Brand | ETA |
| Height | 56.4mm |
| Model | 3120-N32F-H7T1-SGRD-10A |
| Depth | 42.6mm |
| Mounting Type | Snap-in, cut-out 50.5 x 21.5mm |
| Width | 26.4mm |
| Mount Type | Screw |
| Current Rating | 10A |
| Series | 3120-N |
| Terminal type | Screw |
| Breaking Capacity | 10A |
| Number of Poles | 2 |
| Standards/Approvals | IEC, REACH, RoHS, VDE, CCC, CSA, EAC |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Push Button |
| ETA Thermal Circuit Breaker - 3120 2 Pole Snap In, 10A Current RatingBrand | ETA |
Key Features
- Combines overcurrent protection and ON/OFF switch functions.
- Equipped with a thermal bimetal trip element for reliable tripping.
- Push button reset actuator allows quick and easy resetting after trip.
- Designed for overload protection of motors, pumps, transformers, and cables.
- Mounts via snap-in with cut-out dimensions 50.5 x 21.5 mm.
- Blade terminals with flat head screws M3.5 for under voltage release module.
- Positively trip-free mechanism ensures disconnection even if actuator is blocked.
- Space-saving design reduces mounting and wiring time.
Product Description
ETA 3120-N32F-H7T1-SGRD-10A is a high-quality Thermal Circuit Breaker featuring a 2-pole configuration and screw mounting, rated for 10A current with an AC voltage rating of 240V and DC rating of 50V. This circuit breaker integrates both overload protection and on/off switching in one compact unit, making it suitable for diverse industrial and commercial electrical applications.
The device utilizes a thermal bimetal trip mechanism that provides reliable response to overcurrent conditions by tripping quickly to protect connected systems such as motors, pumps, transformers, and cables. After tripping, it can be reset easily through a push button actuator, ensuring minimal downtime in operational environments.
This model features blade terminals secured by flat head M3.5 screws, designed to accommodate an under voltage release module, enhancing functional flexibility. The positively trip-free mechanism guarantees the circuit is disconnected reliably, even if the actuator is physically blocked, assuring safety and compliance.
The mounting system is snap-in with cut-out dimensions of 50.5 x 21.5 mm, offering space-saving installation that reduces wiring and mounting time. With overall dimensions of 56.4 mm height, 26.4 mm width, and 42.6 mm depth, it provides a compact footprint beneficial for panel installations where space is critical.
Certified to meet stringent international standards including IEC, REACH, RoHS, VDE, CCC, CSA, and EAC, this circuit breaker ensures adherence to global safety and environmental protocols. It is manufactured in Tunisia and intended primarily for industrial, manufacturing, automation, and electrical infrastructure use cases where reliable overcurrent protection is essential.
Combines overcurrent protection with ON/OFF switching. Thermal bimetal trip element for dependable tripping. Push button reset for quick restoration after trips. Snap-in mounting with space-saving design. Blade terminals with M3.5 flat head screws for secure connections.
Positively trip-free mechanism for reliable circuit disconnection. Rated for 10A current, 240V AC, and 50V DC operation. Compliant with IEC, REACH, RoHS, VDE, CCC, CSA, and EAC standards. Ideal for overload protection of motors, pumps, transformers, and cables.
Explore more products in the Thermal Circuit Breaker category for advanced electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 10A.
It is rated for 240V AC and 50V DC operation.
It utilizes a thermal bimetal trip mechanism that responds to overcurrent conditions, ensuring reliable tripping to protect connected systems.
This model features a snap-in mounting type with cut-out dimensions of 50.5 x 21.5 mm.
The overall dimensions are 56.4 mm in height, 26.4 mm in width, and 42.6 mm in depth.
It has blade terminals secured by flat head M3.5 screws.
It features a push button reset actuator for quick and easy resetting after a trip.
It is certified to meet IEC, REACH, RoHS, VDE, CCC, CSA, and EAC standards.
It is designed for overload protection of motors, pumps, transformers, and cables.
This thermal circuit breaker is manufactured in Tunisia.
The series name for this model is 3120-N.
The positively trip-free mechanism ensures reliable disconnection of the circuit even if the actuator is blocked.
