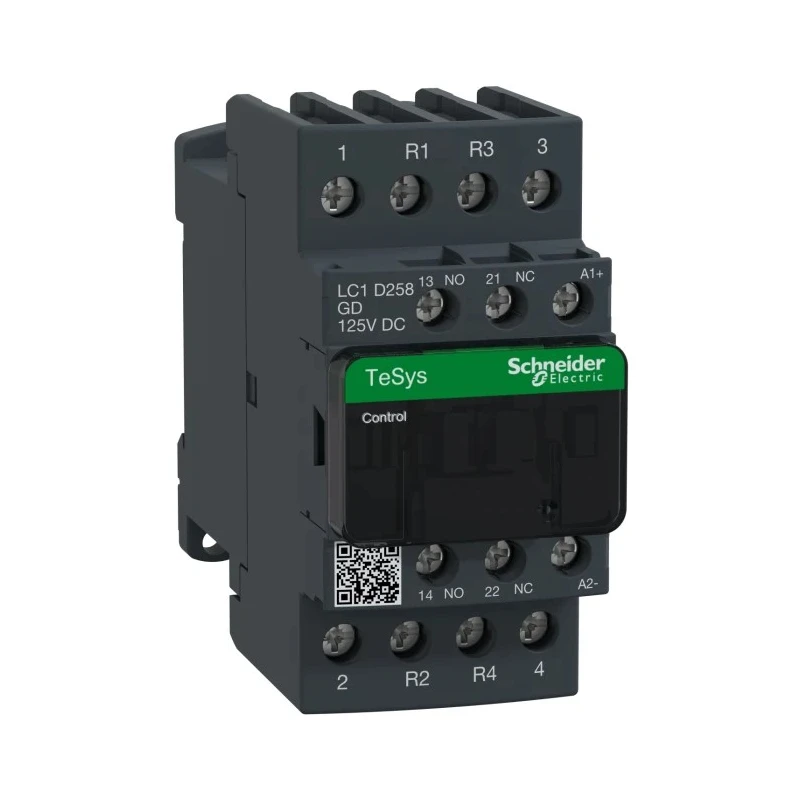

Schneider Electric Motor Control Contactor LC1D258GD, 125V DC Coil, 4-Pole, 40A 125V DC, 2 NO/2 NC, 690V AC/DC LC1D258GD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1D258GD |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 125V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 125V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Coil voltage rated at 125V DC for precise control circuit operation.
- Four poles provide robust motor control with reliable switching.
- Contact rating supports 40 amperes at 125V DC ensuring durability under load.
- Configuration includes 2 normally open and 2 normally closed contacts for versatile control.
- Designed for DIN rail mounting for flexible installation options.
- Suitable for motor control and resistive load applications with high reliability.
- IP20 finger-safe screw terminal connections with international markings enhance safety and ease of wiring.
- Operational temperature range from -5°C to 60°C ensures applicability in varied environments.
Product Description
Schneider Electric's LC1D258GD is a high-quality motor control contactor featuring a 125V DC coil and a 4-pole configuration capable of handling 40A current at 125V DC. It supports a control circuit voltage of 125V DC and is designed to operate at voltages up to 690V AC/DC, making it suitable for a wide range of industrial control applications involving resistive loads and motor control.
This contactor incorporates 2 normally open and 2 normally closed contacts, providing flexible load switching options. It mounts easily on DIN rails or with screws for panel installation. The product is engineered with IP20 finger-safe screw terminals, marked for both North American and International wiring standards, ensuring safe and reliable electrical connections.
Its operational temperature ranges from -5°C to 60°C, allowing deployment in various industrial environments. Additionally, Schneider Electric’s TeSys D contactors, including this model, offer long mechanical and electrical life with robust shock and vibration resistance, providing consistent performance in demanding applications.
The contactor’s design includes a bidirectional peak limiting diode suppressor to protect the coil and flexible control circuits to accommodate diverse installation needs. It is compliant with CSA and UL standards, affirming its adherence to stringent safety and quality requirements.
This Better World product emphasizes sustainability through design for disassembly, aiding efficient resource use and recycling. Coil voltage rated at 125V DC for efficient control. Four poles with 2 NO/2 NC contacts offer versatile load handling.
Complies with CSA and UL standards for safety. Suitable for motor control and resistive load applications. Durable IP20 finger-safe screw connections with international markings. Wide operating temperature range from -5°C to 60°C.
DIN rail mountable for easy installation. Designed for disassembly supporting sustainable use.
Ideal for use in industrial automation, manufacturing, HVAC systems, and motor starter circuits. Schneider Electric Contactors deliver reliable and efficient control solutions to meet demanding operational requirements.
Explore more automation and control gear products from Schneider Electric to optimize your industrial systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact rating of 40 amperes at 125V DC, suitable for various applications including motor control and resistive loads.
The coil voltage for this contactor is rated at 125V DC, ensuring precise control circuit operation.
It features a 4-pole configuration, which includes 2 normally open (NO) and 2 normally closed (NC) contacts for versatile control.
The maximum operating temperature for the LC1D258GD is 60°C, allowing it to function effectively in various industrial environments.
This unit is designed for DIN rail mounting, providing flexible installation options in control panels.
The dimensions of this contactor are 91mm in length, 45mm in width, and 107mm in depth.
It complies with CSA and UL standards, ensuring adherence to safety and quality requirements.
The operational current rating for this model is 40A, making it suitable for handling significant loads.
It features IP20 finger-safe screw terminals with both North American and International terminal markings for safe wiring.
This contactor is suitable for motor control and resistive load applications, making it versatile for various industrial uses.
The minimum operating temperature for this contactor is -5°C, allowing it to operate in cooler environments.
Yes, this model includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
