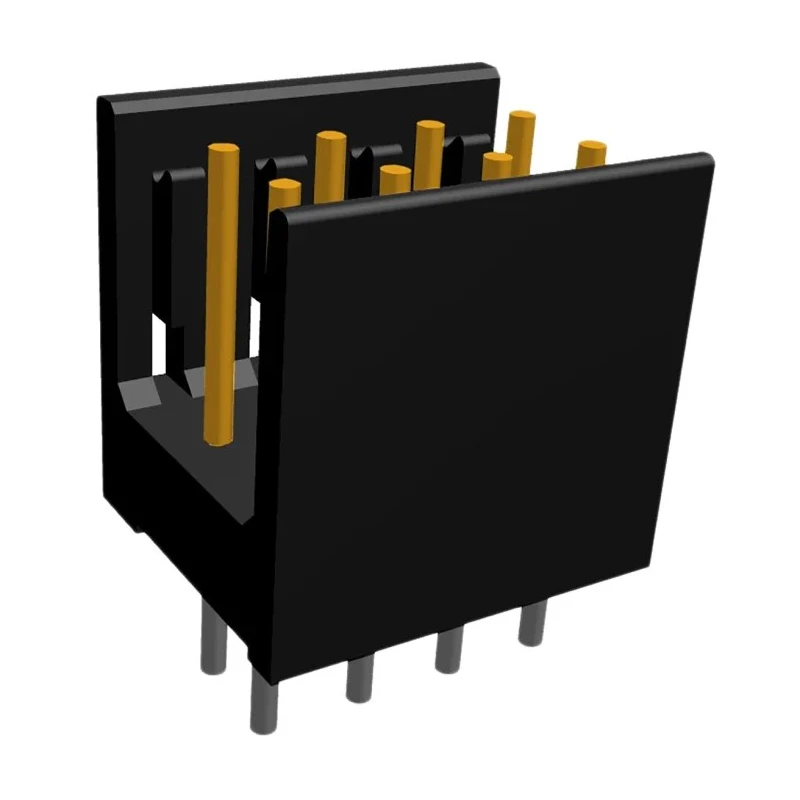

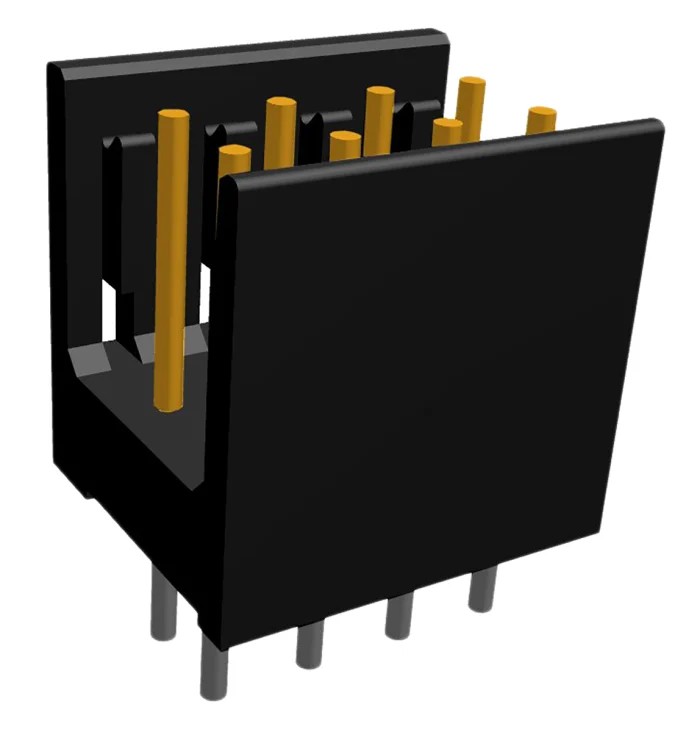

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Header, 8 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 826469-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826469-4 |
| Mount Type | Through Hole |
| Housing Material | Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
Key Features
- The connector features a current rating of 3A and voltage rating up to 750V.
- Constructed with a polycyclohexylenedimethylene terephthalate housing for high temperature resistance.
- Equipped with phosphor bronze male contacts plated with gold to ensure excellent conductivity and corrosion resistance.
- Designed for through-hole mounting with a tail pin length of 3.2 mm for secure solder termination.
- Suitable for operating temperature range from -65°C to 105°C, supporting SMT solder processes.
- Includes polarization and detent latching for secure and accurate mating of connectors.
- Connector system supports both board-to-board and wire-to-board configurations.
- Compact 2-row, 2.54 mm pitch layout compatible with AMPMODU Mod II interconnect system standards.
Product Description
TE Connectivity 826469-4 AMPMODU MOD II Series Straight Through Hole PCB Header is designed for high-reliability applications requiring secure electrical connections between boards or from board to wire. Featuring 8 male contacts arranged in two rows with 2.54 mm pitch, it ensures compatibility with standard industrial connectors.
The housing is molded from polycyclohexylenedimethylene terephthalate, a UL 94V-0 rated high-temperature polyester-glass filled material, tolerating continuous operation from -65°C to 105°C, ideal for automation and control environments that undergo solder reflow processes.
The phosphor bronze contacts plated with gold plating provide excellent conductivity and corrosion resistance, ensuring long service life and dependable signal transmission. The connector utilizes a detent latch and polarization design to prevent mis-mating and maintain mechanical stability.
The through-hole mount with a tail pin length of 3.2 mm ensures robust mechanical and electrical connection via soldering. This series can handle a current rating of 3A and withstand up to 750V, making it suitable for a variety of industrial signal and low power power applications.
The AMPMODU Mod II interconnect system, including this header, forms the backbone for numerous automation and control systems worldwide, offering a reliable and economical solution for board stack and wire connection needs.
Applications include: industrial controls, electronic instrumentation, communications equipment, and power supply assemblies. The connector is shrouded to protect pins from damage and accidental shorts. It supports both board-to-board and wire-to-board connections within compact assembly configurations.
This component meets the requirements for high-temperature processes including SMT soldering. The compact 2-row layout allows high-density connectivity in limited PCB space. Packaging includes the connector itself with standard RS Components stock number 509-3029.
For further component options, consult the AMPMODU HE14 Series for similar form factors and pin counts. Explore the comprehensive connector range on EnvMart for advanced PCB connector solutions from TE Connectivity.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3A and a voltage rating of up to 750V.
It features a pitch of 2.54 mm and includes 8 male contacts arranged in 2 rows.
The housing is made from polycyclohexylenedimethylene terephthalate, while the contacts are constructed from phosphor bronze and plated with gold.
It can operate within a temperature range of -65°C to 105°C.
This unit is designed for through-hole mounting with a tail pin length of 3.2 mm for secure solder termination.
It supports both board-to-board and wire-to-board configurations.
Yes, it includes polarization and detent latching for secure and accurate mating of connectors.
The shrouded design protects the pins from damage and accidental shorts, enhancing reliability in connections.
The termination type for this model is solder, facilitating a secure electrical connection.
It has a compact 2-row layout with a pitch of 2.54 mm, allowing for high-density connectivity in limited PCB space.
The country of origin for this connector is India.
It is suitable for applications in industrial controls, electronic instrumentation, communications equipment, and power supply assemblies.
