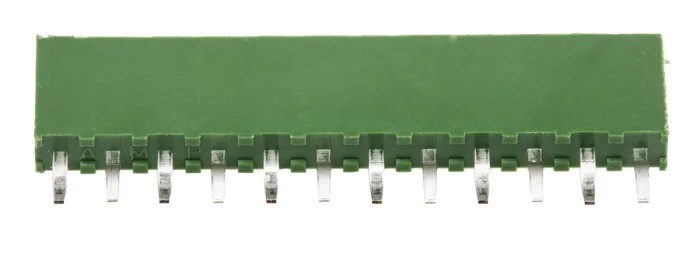

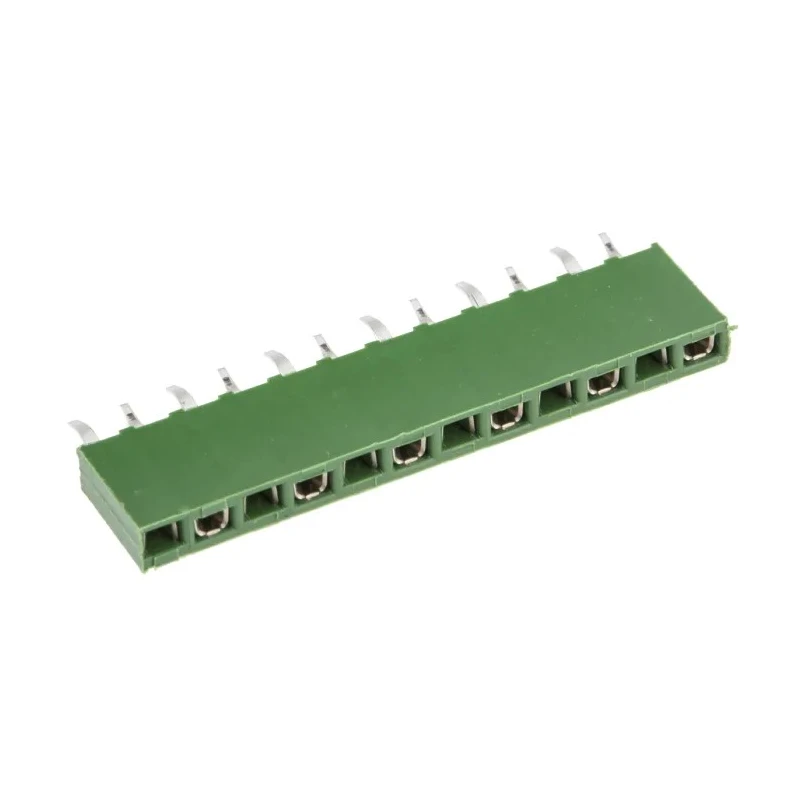

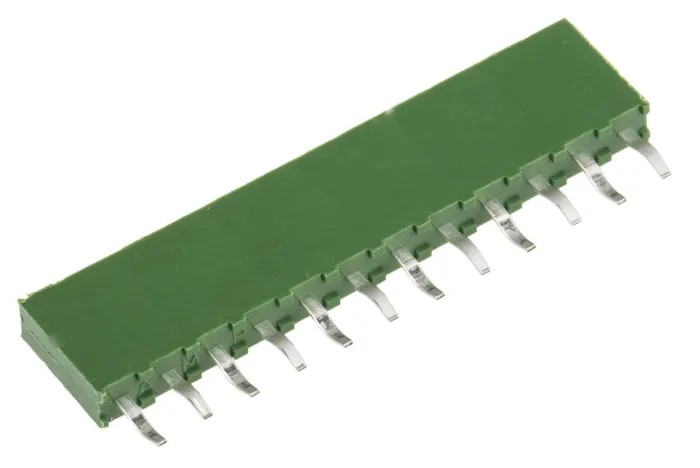

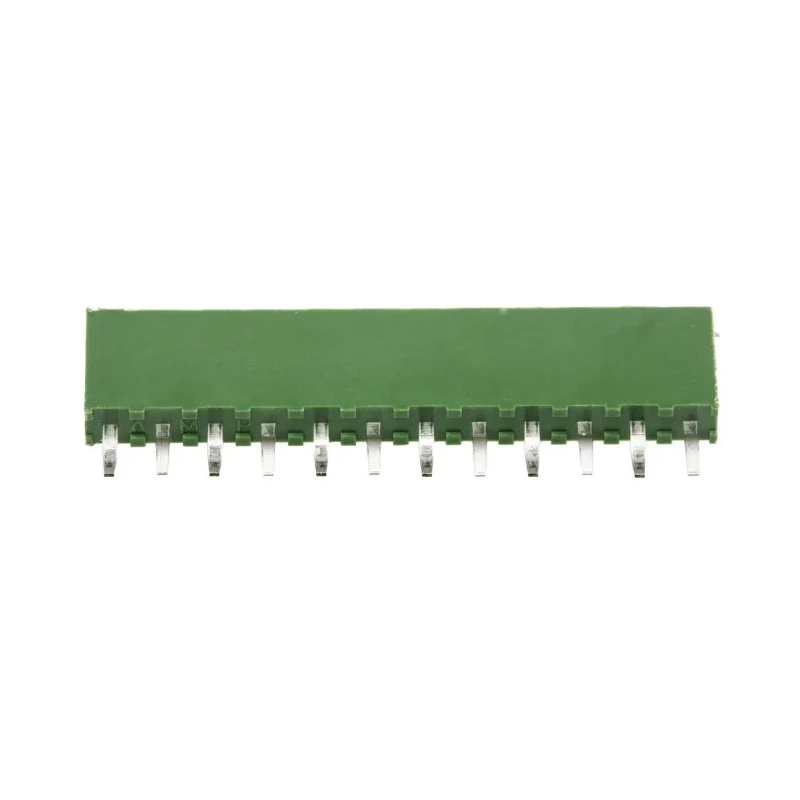

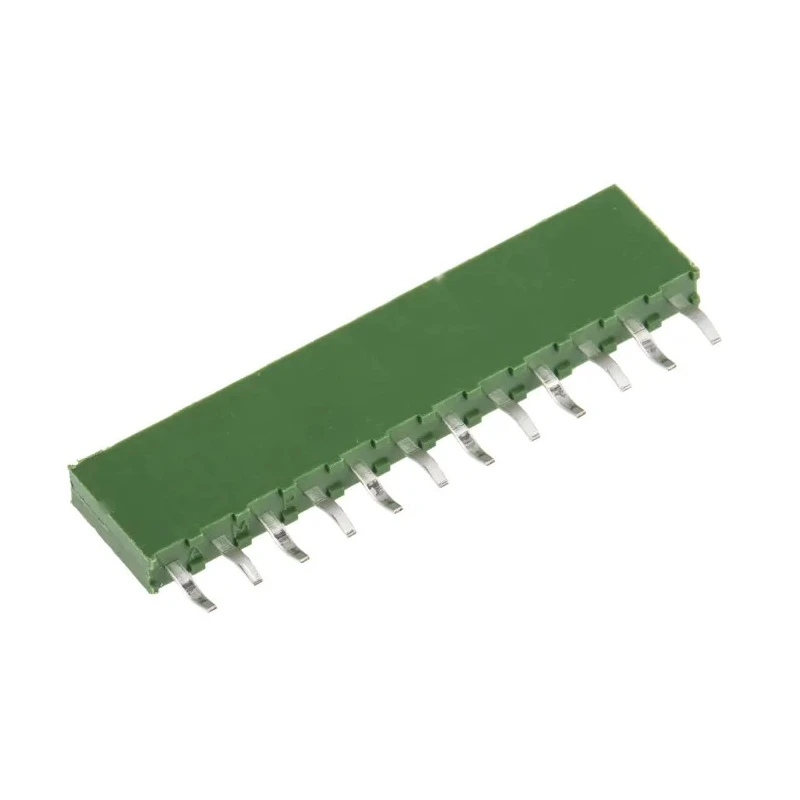

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket, 12-Contact, 1 Row, 2.54 mm Pitch, Solder Termination HV100

TE Connectivity HV100 PCB Socket 12-Contact, 1 Row, 2.54 mm Pitch, is engineered for dependable board-to-board connections in electronic assemblies. This PCB socket utilizes kinked solder legs that provide secure retention to the printed circuit board, minimizing mechanical stress during insertion and operation.

The housing is constructed from UL 94V-0 rated flame retardant Polybutylene Terephthalate material, enhancing device safety and durability in demanding conditions. Board stand-offs contribute to mechanical robustness and stability on the PCB platform.

This series supports stacking configurations with two different mounting heights available to accommodate diverse design requirements. The female contact pins are made from bronze material and plated with tin, ensuring excellent electrical conductivity and corrosion resistance.

Designed for through-hole mounting with a straight orientation, the socket fits a 2.54 mm pitch and supports current ratings up to 12 A. It operates effectively in ambient temperatures ranging from -40°C up to 105°C, making it suitable for a variety of industrial and commercial electronics applications.

The TE Connectivity AMPMODU HV100 series PCB Sockets comply with RoHS directives, ensuring they meet contemporary environmental and safety standards. Kinked solder legs ensure reliable PCB retention during assembly. Housing made from UL 94V-0 flame retardant Polybutylene Terephthalate for safety.

Features board stand-offs for mechanical stability on PCB. Suitable for stacking applications with available mounting height options. Female bronze contacts plated with tin for optimal conductivity. Operates safely between -40°C and 105°C temperature range.

Straight orientation for vertical PCB board-to-board connector systems. Complies with RoHS standards ensuring environmental safety.

This product is ideal for use in industrial electronics manufacturing, automation systems, telecommunications, and other electrical component assembly processes. It contributes to reliable, long-lasting performance in critical PCB interconnection scenarios.
