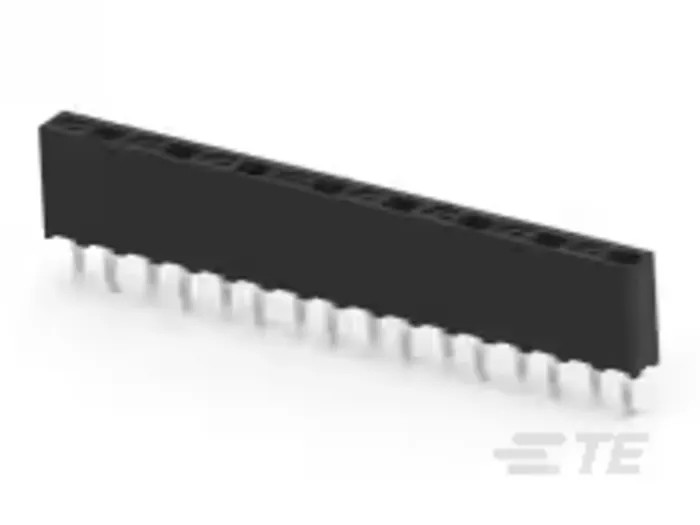

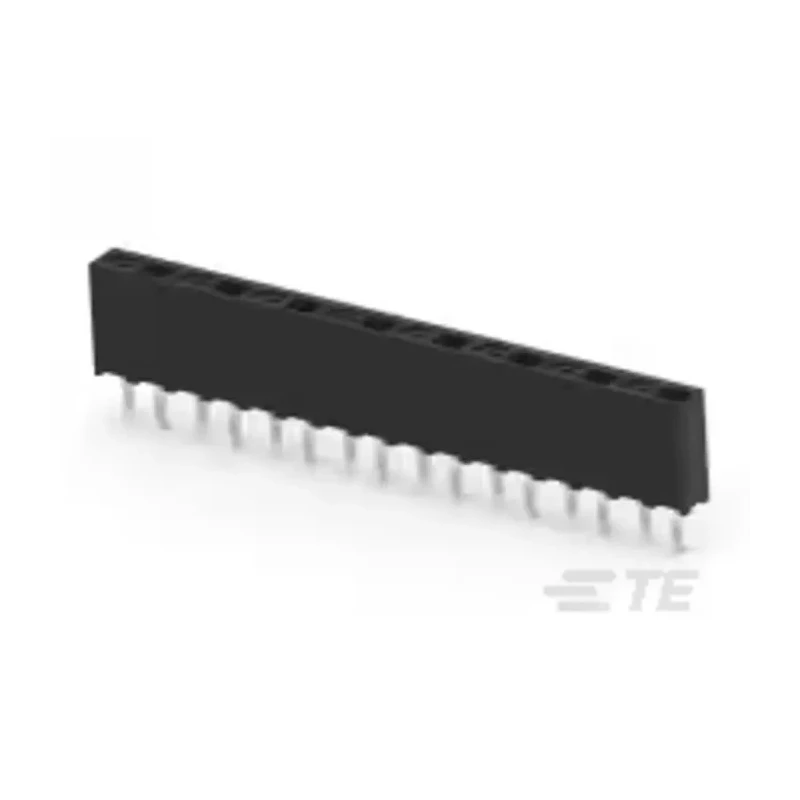

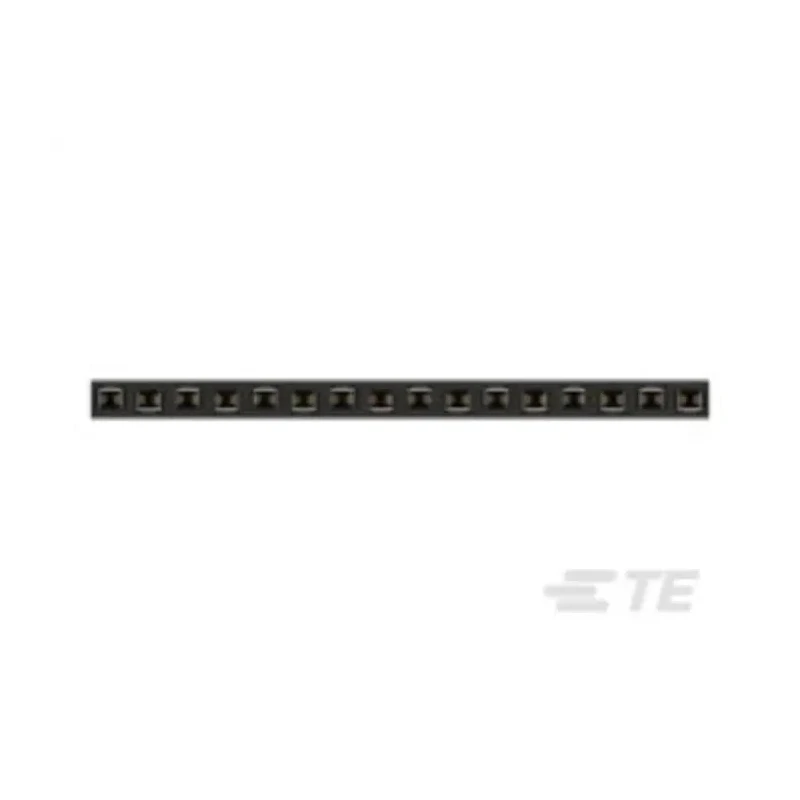

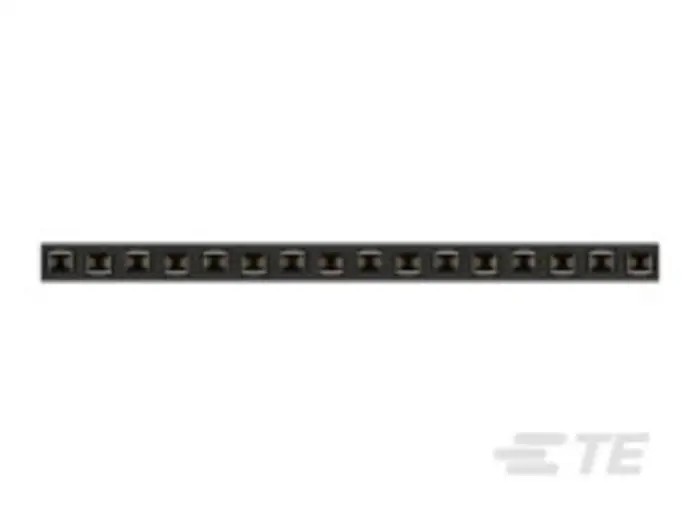

TE Connectivity AMPMODU HV100 Series 16-Contact 1 Row 2.54 mm Pitch Straight Through Hole PCB Socket HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Contains 16 female contacts arranged in a single row.
- Pitch between contacts is 2.54 mm ensuring compatibility with standard PCBs.
- Constructed with polybutylene terephthalate housing for flame retardancy.
- Features kinked solder legs for reliable retention on the PCB.
- Operates within a temperature range of -40°C to 105°C.
- Contact material is bronze plated with tin for corrosion resistance.
- Designed for through-hole mounting with straight orientation.
- Suitable for board-to-board connector systems in electronic applications.
Product Description
TE Connectivity HV100 Series Straight Through Hole PCB Socket is a reliable 16-contact socket designed for vertical mounting and top entry applications in electronics manufacturing.
This PCB Socket features a 2.54 mm pitch and a single row of female contacts ensuring precise alignment and effective electrical connection. The housing is made from UL 94V-0 flame retardant polybutylene terephthalate thermoplastic, incorporating board stand-offs to support secure PCB placement.
Its kinked solder legs provide exceptional solder joint retention, enhancing reliability in high-vibration environments often found in industrial electronics and manufacturing. With operating temperature range from -40°C to 105°C and a current rating of 12A, it supports robust power and signal transmission requirements.
Contact materials include bronze contacts plated with tin that help resist corrosion and offer extended durability.
This socket is ideal for use in board-to-board connector systems across various industrial, commercial, and laboratory electronic applications, facilitating efficient assembly and maintenance.
Contains 16 female contacts arranged in 1 row. 2.54 mm contact pitch suitable for standard PCB layouts. Kinked solder legs for secure board retention. Housing made of UL 94V-0 flame retardant polybutylene terephthalate. Operating temperature range from -40°C up to 105°C supports diverse environments.
12A current rating for moderate power applications. Contact material bronze with tin plating to enhance longevity. Straight orientation designed for through-hole mounting. Explore the broad range of TE Connectivity PCB connectors available to optimize your electronic assemblies at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HV100 PCB socket has a current rating of 12A, making it suitable for moderate power applications.
The pitch between the contacts is 2.54 mm, ensuring compatibility with standard PCB layouts.
The housing is made from polybutylene terephthalate, and the contacts are bronze plated with tin for corrosion resistance.
This model operates within a temperature range of -40°C to 105°C, accommodating diverse environmental conditions.
The HV100 PCB socket contains 16 female contacts arranged in a single row.
It is designed for through-hole mounting, allowing for secure installation on PCBs.
This socket features a straight orientation, suitable for vertical mounting applications.
The HV100 is designed for board-to-board connector systems, facilitating efficient electrical connections.
This socket complies with RoHS standards, ensuring it meets environmental regulations.
The termination type for the contacts is solder, allowing for secure electrical connections.
The socket features kinked solder legs for reliable retention on the PCB, enhancing stability in high-vibration environments.
The HV100 PCB socket is manufactured in India.
