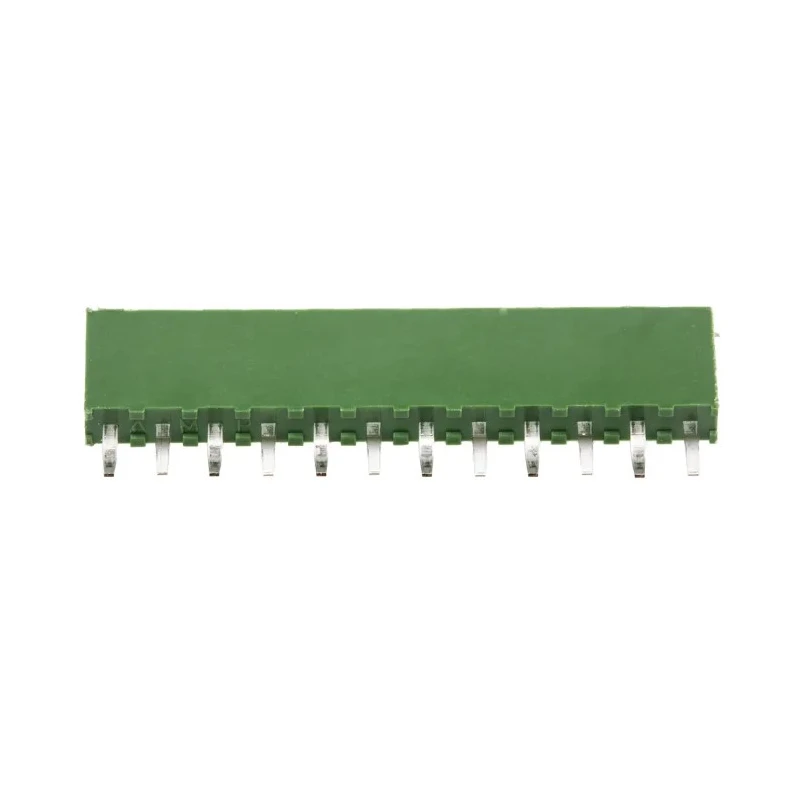

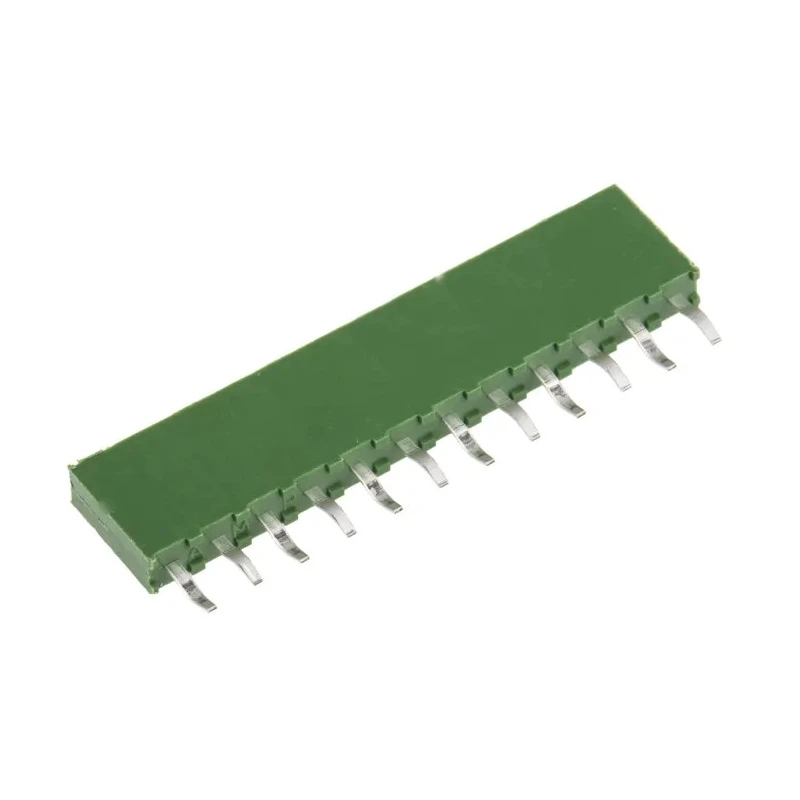

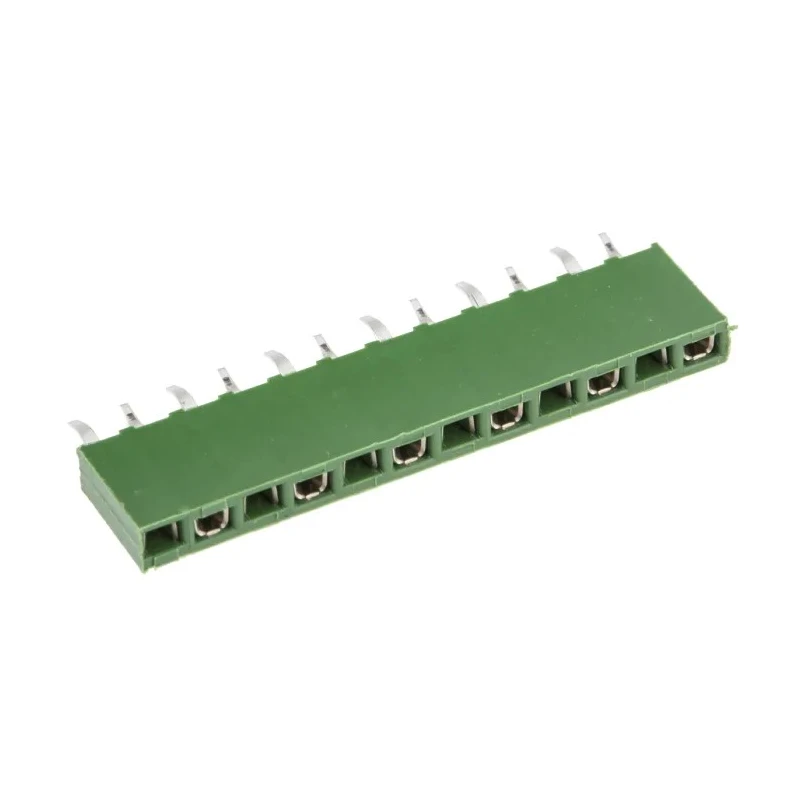

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket 12-Contact 1 Row 2.54 mm Pitch Solder HV100

TE Connectivity HV100 Series Straight Through Hole PCB Socket 12-Contact model HV100 is engineered for robust board-to-board connection, featuring a 2.54 mm pitch and a single row configuration. Its straight orientation and through-hole mount type enable secure and reliable solder connections on printed circuit boards.

The socket's housing is made from UL 94V-0 flame retardant polybutylene terephthalate thermoplastic, which enhances safety and mechanical durability. Kinked solder legs provide secure PCB retention, preventing dislodgement during operation or handling. Additionally, the inclusion of board stand offs supports stacking applications by maintaining proper alignment and spacing between PCB layers.

Designed to sustain a continuous current rating of 12A, this connector supports moderate power applications. The contacts are fabricated from bronze and plated with tin, enhancing conductivity and resistance to corrosion. Operating temperature ranges from -40°C to 105°C, offering reliability in harsh or variable environments.

This AMPMODU HV100 series product is compliant with RoHS directives, ensuring lead-free and environmentally friendly manufacturing standards. Its one-row, 12-contact design makes it ideal for compact, dense PCB layouts often required in industrial electronics, telecommunications, and automated machinery.

Installation flexibility is enhanced by the choice of mounting heights available in the series and the vertical entry style design of this connector. These features facilitate its integration in various electronic assemblies requiring high-performance and secure electrical connections.

Supports a current rating of 12A for reliable electrical performance. Constructed with polybutylene terephthalate housing providing flame retardant properties. Features kinked solder legs to ensure secure retention to PCB.

Operating temperature range from -40°C to 105°C suitable for various environments. Designed with board stand offs and vertical mounting for stacking applications. Contact material is bronze with tin plating for durability and conductivity.

Suitable for board-to-board connector systems with female contact gender. Complies with RoHS standards ensuring environmental safety.

This PCB socket is widely used in industrial, manufacturing, telecommunications, and electronic assembly applications where reliable electrical connectors are critical. Choose this TE Connectivity AMPMODU HV100 series part for secure and efficient PCB connections within your electronic systems. Browse the Electronics Components category on EnvMart for more high-quality PCB Sockets and connectors.
