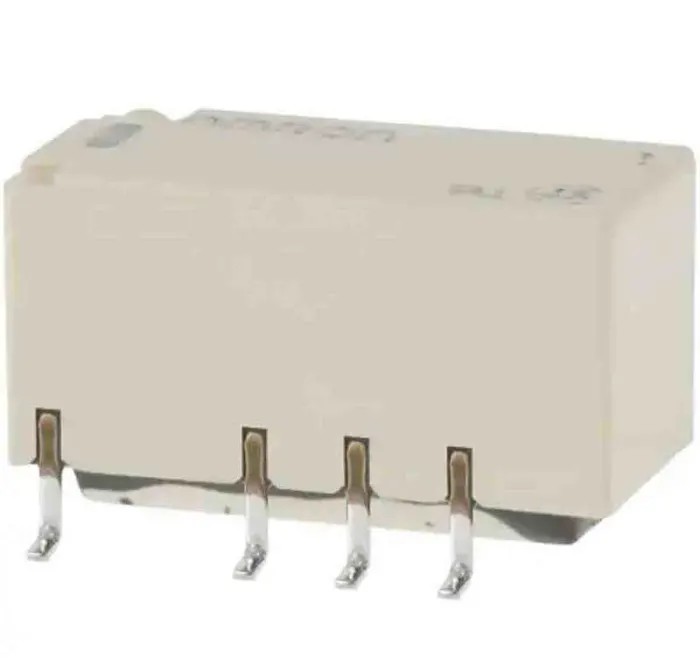

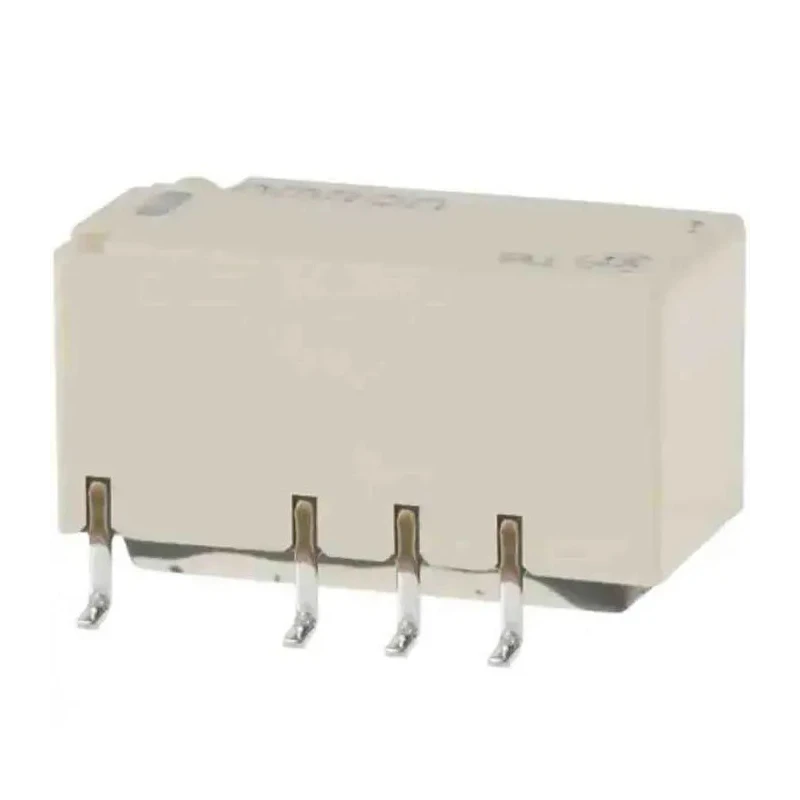

Omron Signal Relay Surface Mount DPDT 5V DC Coil 2A Switching Current G6S-2F DC5

Omron G6S-2F DC5 Signal Relay is a robust surface mount DPDT relay featuring a 5V DC coil and 2A switching current capacity, suitable for a variety of industrial and commercial electrical control applications.

This compact relay measures 15mm in length, 9mm in height, and 7.5mm in width, making it ideal for space-constrained PCB mounting scenarios. Its coil power rating is 140mW with a coil resistance of 178 ohms, providing efficient actuation at low power consumption.

The relay contact configuration is double pole double throw (DPDT), allowing simultaneous control of two circuits. Silver alloy contact material ensures high conductivity, low contact resistance of 75 milliohms, and durability for demanding switching tasks.

Engineered to switch currents up to 2 amperes across AC voltages as high as 250V and DC voltages up to 220V, this relay supports reliable signal load handling in automation, telecommunications, measurement devices, and security systems.

Operating temperature ranges from -40°C to 85°C, enabling use in diverse environmental conditions. It complies with RoHS environmental standards, ensuring reduced hazardous substances in manufacturing.

The surface mount terminal type enhances PCB assembly and mechanical stability. Its series designation is HFD3-V, known for dependable performance of signal relays.

Manufactured in China, this new-condition Omron relay is well-suited for industrial automation, laboratory equipment, commercial electronics, and telecommunications infrastructure where precise switching and low power consumption are critical.

Compact Signal Relay designed for surface mounting applications. Features a double pole double throw (DPDT) contact arrangement. Operates with a coil voltage of 5 volts DC and coil power of 140mW. Switching capacity supports up to 2 ampere current at 250V AC and 220V DC.

Contact resistance is minimized at 75 milliohms for efficient conduction. Silver alloy contacts ensure reliable electrical performance and long life. Coil resistance is 178 ohms with stable operation within -40°C to 85°C temperature range.

Mount type is surface mount with dimensions 15mm length, 9mm height, and 7.5mm width. Complies with RoHS standards for environmental safety. Ideal for telecommunication, measurement devices, and security equipment applications.
